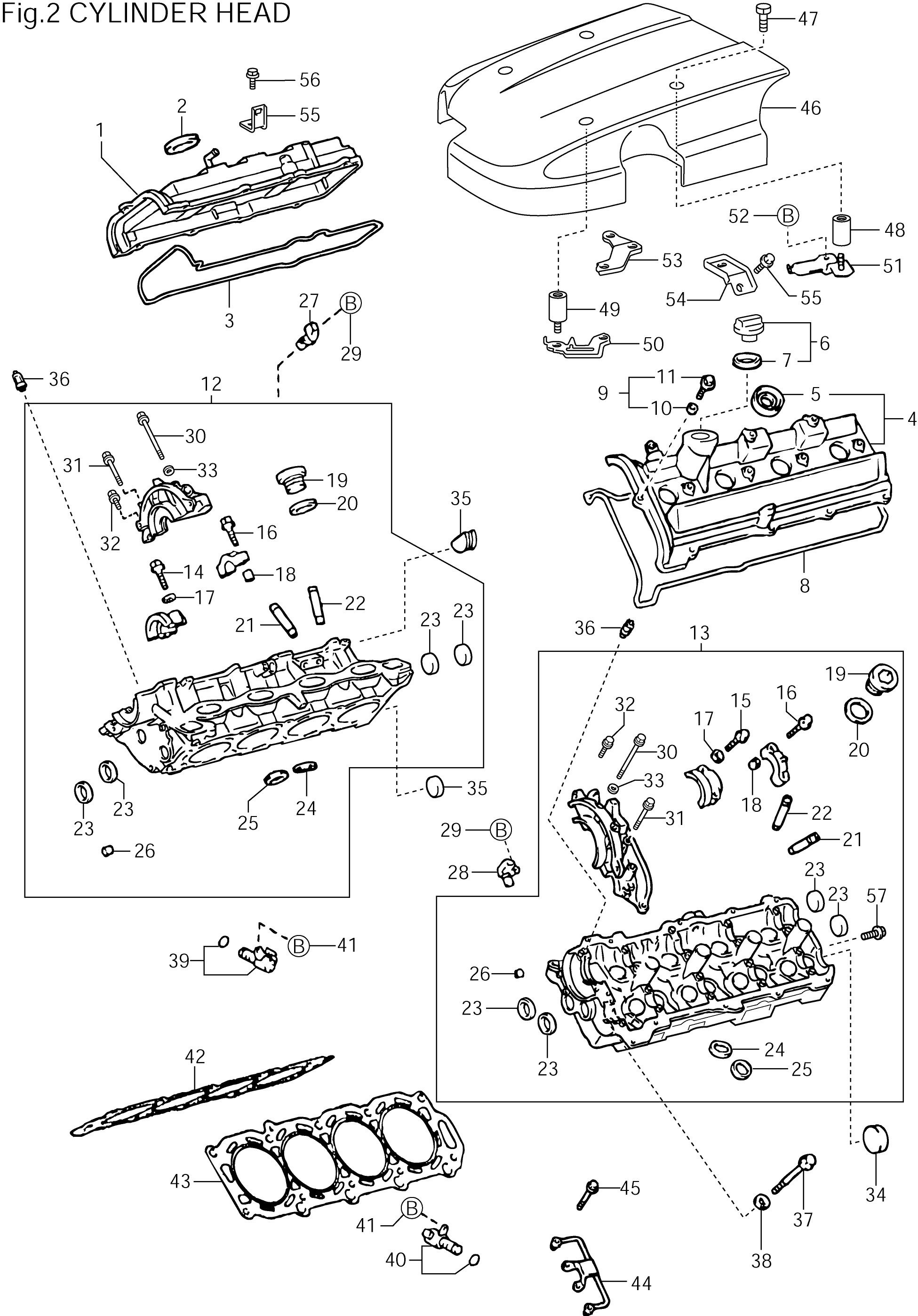

Engine Figure
Click image for full size version | Scroll down to see parts list
Cylinder Head| Part Number | Description | Quantity | Reference No. | | 1120150030B | COVER SUB-ASSY,CYLINDER HEAD,RH | 1 | 1 | | 1119362040B | GASKET,SPARK PLUG TUBE | 4 | 2 | | 1121350030B | GASKET,CYLINDER HEAD COVER,RH | 1 | 3 | | 1120250030 | COVER SUB-ASSY,CYLINNDER HEAD,LH | 1 | 4 | | 1119362050A | GASKET,SPARK PLUG TUBE | 4 | 5 | | 1218050030A | CAP SUB-ASSY,OIL FILLER | 1 | 6 | | 1219550010 | GASKET(FOR OIL FILLER CAP) | 1 | 7 | | 1121450010 | GASKET,CYLINDER HEAD COVER,LH | 1 | 8 | | 9010906163 | BOLT(FOR CYLINDER HEAD COVER) | 9 | 9 | | 9021007001B | WASHER,SEAL(FOR CYLINDER HEAD COVER) | 9 | 10 | | 9010506127A | BOLT,WASHER BASED HEAD HEXAGON | 9 | 11 | | 1110150050B | HEAD SUB-ASSY,CYLINDER,RH | 1 | 12 | | 1110250020B | HEAD SUB-ASSY,CYLINDER,LH | 1 | 13 | | 9010507004A | BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)NO.1 RH | 4 | 14 | | 9010507005A | BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)NO.1 LH | 4 | 15 | | 9011907009 | BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)NO.2 | 28 | 16 | | 9021007003A | WASHER,SEAL(FOR HEAD CAMSHAFT BEARING CAP) | 8 | 17 | | 9025310006 | PIN,RING(FOR CAMSHAFT BEARING CAP SETTING) | 36 | 18 | | 9034127006 | PLUG,W/HEAD STRAIGHT SCREW,NO.1 | 2 | 19 | | 9043027005 | GASKET(FOR WATER HOLE) | 2 | 20 | | 1112620020 | BUSH,EXHAUST VALVE GUIDE STD | 16 | 21 | | 1112720020 | BUSH,EXHAUST VALVE GUIDE O/S 0.05 | 16 | 22 | | 1112222020 | BUSH,INTAKE VALVE GUIDE STD | 16 | 22 | | 1112320020 | BUSH,INTAKE VALVE GUIDE O/S 0.05 | 16 | 23 | | 9641163000 | PLUG,TIGHT | 8 | 23 | | 1113150030 | SEAT,INTAKE VALVE STD | 16 | 24 | | 1113250030 | SEAT,INTAKE VALVE O/S 0.03 | 16 | 25 | | 1113550030 | SEAT,EXHAUST VALVE STD | 16 | 25 | | 1113650030 | SEAT,EXHAUST VALVE O/S 0.03 | 16 | 26 | | 9025309001A | PIN,RING W/HEAD | 3 | 26 | | 9091905036 | SENSOR,CRANK POSITION | 1 | 27 | | 9091905036 | SENSOR,CRANK POSITION | 1 | 28 | | 9151160612 | BOLT | 1 | 29 | | 9010507005A | BOLT,WASHER BASED HEAD HEXAGON | 2 | 30 | | 9010507004A | BOLT,WASHER BASED HEAD HEXAGON | 2 | 31 | | 91511J0625 | BOLT,FLANGE | 1 | 32 | | 9021007003A | WASHER,SEAL | 2 | 33 | | 1118850010B | PLUG,CAMSHAFT HOUSING | 2 | 34 | | 1118350020 | PLUG.SEMICIRCULAR | 4 | 35 | | 1567846010C | FILTER,OIL CONTROL VALVE | 1 | 36 | | 9091002088B | BOLT(FOR CYLINDER HEAD SET) | 20 | 37 | | 9020110133 | WASHER,PLATE(FOR CYLINDER HEAD SET) | 20 | 38 | | 1533050010 | VALVE ASSY,CAMSHAFT TIMING OIL CONTROL RH | 1 | 39 | | 1534050010 | VALVE ASSY,CAMSHAFT TIMING OIL CONTROL LH | 1 | 40 | | 9151160612 | BOLT | 1 | 41 | | 1111550060 | GASKET,CYLINDER HEAD,RH | 1 | 42 | | 1111650050 | GASKET,CYLINDER HEAD,LH | 1 | 43 | | 1504450020 | PIPE SUB-ASSY,CAMSHAFT OIL FEED | 2 | 44 | | 9011907006 | BOLT,W/WASHER | 4 | 45 | | V-BANK COVER | 1 | 46 | | BOLT | 4 | 47 | | SPACER | 2 | 48 | | SPACER | 2 | 49 | | 1125450021 | BRACKET,V-BANK COVER,NO.1 | 1 | 50 | | 1102950010A | BRACKET SUB-ASSY,V-BANK COVER | 1 | 51 | | 9151160610 | BOLT,FLANGE | 1 | 52 | | 1125650010A | BRACKET,V-BANK COVER,NO.2 | 1 | 53 | | 8271567020 | BRACKET,WIRING HARNESS CLAMP | 1 | 54 | | 8271567040 | BRACKET,WIRING HARNESS CLAMP | 1 | 55 | | 91621J0612 | BOLT,W/WASHER | 2 | 56 | | 9162160816 | BOLT,W/WASHER(FOR EARTH) | 1 | 57 |
|
