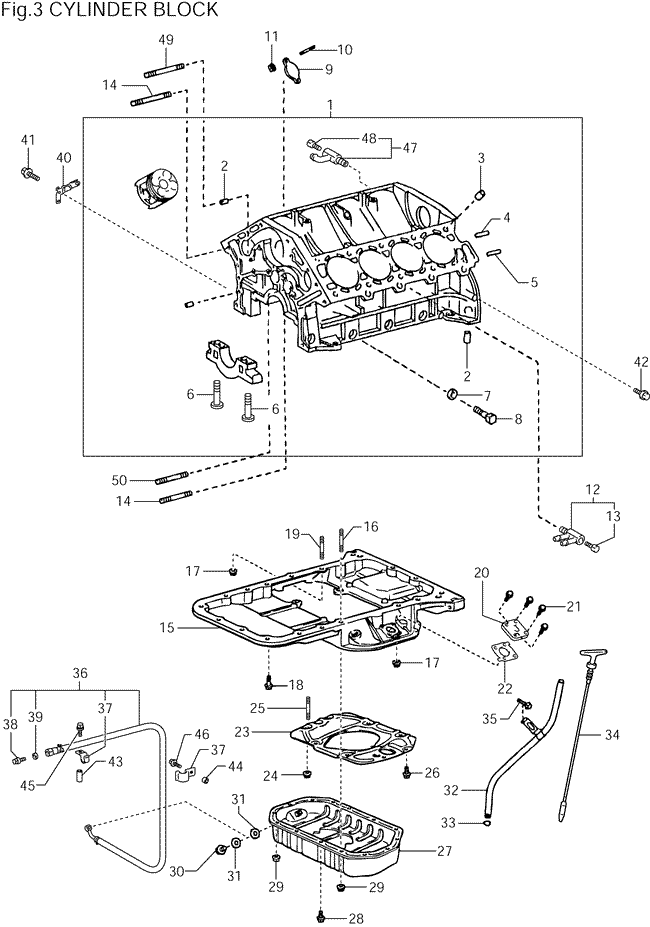

Engine Figure
Click image for full size version | Scroll down to see parts list
Cylinder Block| Part Number | Description | Quantity | Reference No. | | 1140150060 | BLOCK SUB-ASSY,CYLINDER | 1 | 1 | | 9025311021 | PIN,RING (FOR BELT CASE) | 2 | 2 | | 9025316001 | PIN,STRAIGHT (FOR CYLINDER HEAD SET) | 4 | 3 | | 9025006003 | PIN,STRAIGHT (FOR ENGINE REAR OIL SEAL) | 2 | 4 | | 9025010113 | PIN,STRAIGHT (FOR FLYWHEEL HOUSING) | 2 | 5 | | 9091002124 | BOLT | 20 | 6 | | 9021011002 | GASKET | 10 | 7 | | 9010510245 | BOLT | 10 | 8 | | 1149250010 | PLATE,WATER SEAL | 1 | 9 | | 9011608208 | BOLT STUD | 2 | 10 | | 9017908153 | NUT | 2 | 11 | | 9091009096 | COCK SUB-ASSY,WATER DRAIN (FOR CYLINDER BLOCK LH) | 1 | 12 | | 9643223814 | PLUG,WATER DRAIN LOCK (FOR CYLINDER BLOCK LH) | 1 | 13 | | 9011610152 | BOLT,STUD | 2 | 14 | | 1211150070A | PAN,OIL NO.1 | 1 | 15 | | 9012608032 | BOLT,STUD (FOR OIL PAN NO.1) | 2 | 16 | | 9017908153A | NUT | 2 | 17 | | 9011906527B | BOLT,W/WASHER | 4 | 18 | | 9012608030 | BOLT,STUD | 2 | 19 | | 1149446010A | PLATE,OIL HOLE COVER | 1 | 20 | | 91651B0616 | BOLT,W/WASHER | 4 | 21 | | 1149646010A | GASKET,OIL HOLE COVER | 1 | 22 | | 1212150041 | PLATE,OIL PAN BAFFLE | 1 | 23 | | 9017906129 | NUT | 2 | 24 | | 9011606098A | BOLT,STUD | 2 | 25 | | 9162160612 | BOLT,W/WASHER | 6 | 26 | | 1210250080 | PAN SUB-ASSY,OIL,NO.2 | 1 | 27 | | 9011906528B | BOLT,W/WASHER | 12 | 28 | | 9017908153 | NUT | 2 | 29 | | 9040112023 | BOLT,UNION | 1 | 30 | | 9043012031 | GASKET | 2 | 31 | | 1145250110A | GUIDE,OIL LEVEL GAGE | 1 | 32 | | 9672119010 | RING,O | 1 | 33 | | 1530150070A | GAGE SUB-ASSY,OIL LEVEL | 1 | 34 | | 91621B0816 | BOLT | 1 | 35 | | 1210950010 | HOSE SUB-ASSY,OIL DRAIN | 1 | 36 | | 9046208053 | CLAMP | 2 | 37 | | 9034112023A | PLUG,STRAIGHT SCREW W/HEAD | 1 | 38 | | 9043012031 | GASKET | 1 | 39 | | 3292450020B | CLAMP,OIL COOLER TUBE,NO.2 | 1 | 40 | | 9161140814 | BOLT,W/WASHER | 1 | 41 | | 9162160816 | BOLT,W/WASHER(FOR EARTH) | 1 | 42 | | 9056008052 | SPACER | 1 | 43 | | 9056006201 | SPACER | 1 | 44 | | 9164180650 | BOLT,W/WASHER | 1 | 45 | | 9151160616 | BOLT,FLANGE | 1 | 46 | | 9091009095 | COCK,DRAIN(BLOCK,RH) | 1 | 47 | | 9091009087 | PLUG,DRAIN COCK(BLOCK,RH) | 1 | 48 | | 9012608023 | STUD,HEX LOBULAR | 1 | 49 | | 9012608034 | STUD,HEX LOBULAR | 1 | 50 |
|
