TMS Reference Figures - Engine

Engine Figure

Click image for full size version | Scroll down to see parts list

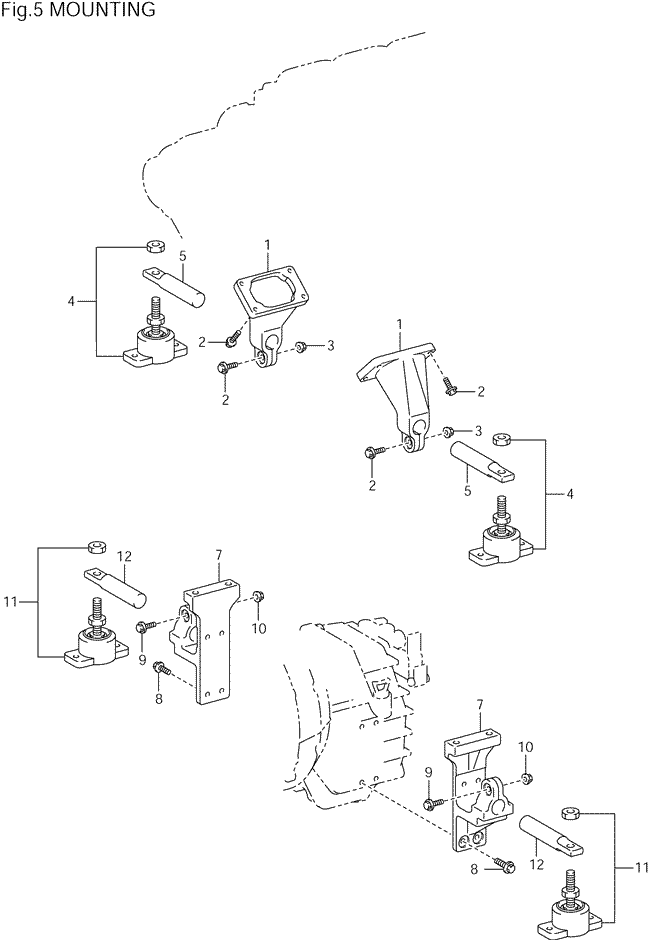

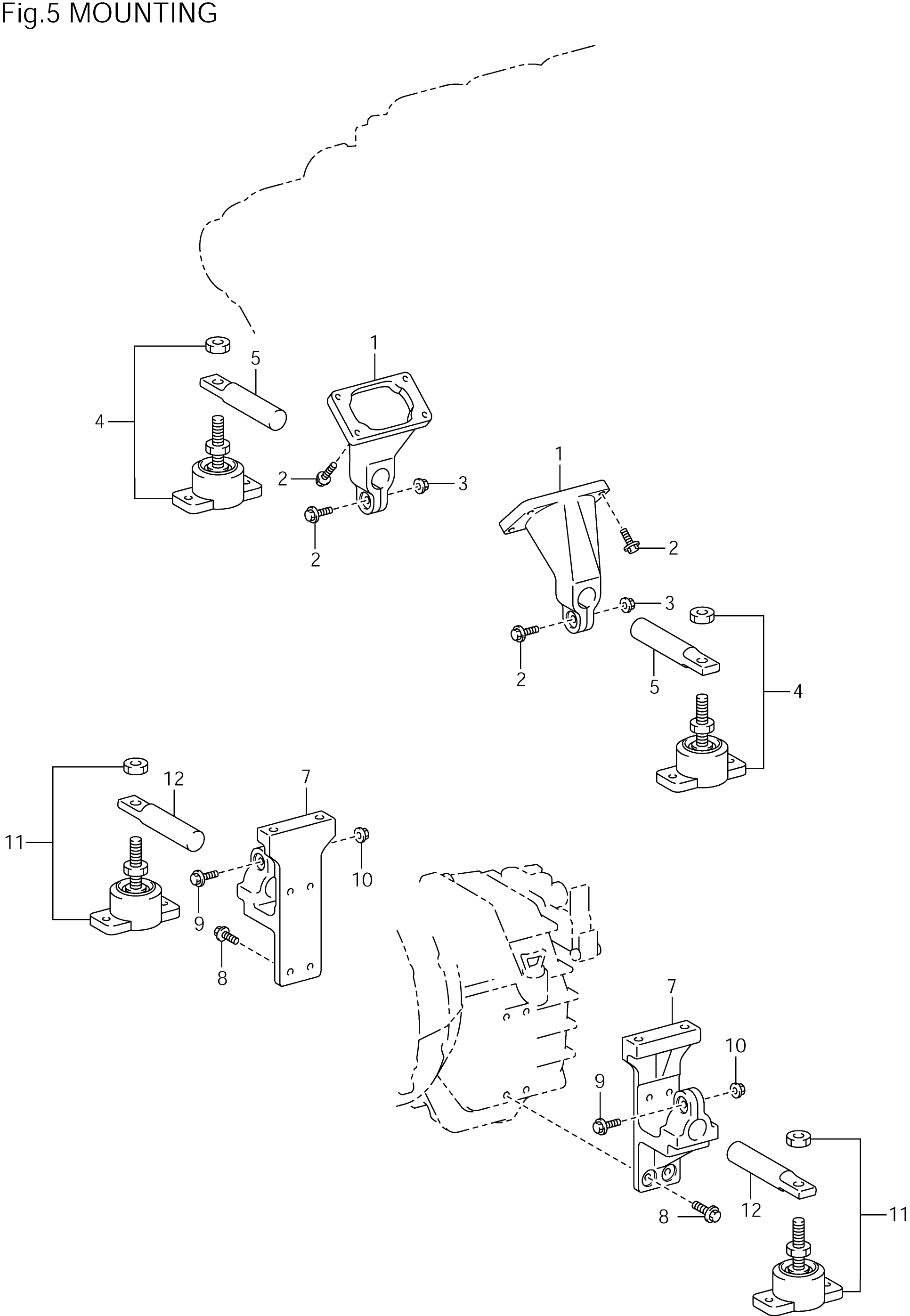

Mounting

Part NumberDescriptionQuantityReference No.
1231150100BRACKET,ENGINE MOUNTING,FR21
9010510438BOLT,WASHER BASED HEAD HEXAGON102
9017910211NUT23
1236050120INSULATOR ASSY,ENGINE MOUNTING,FR24
1233950010APIN,ENGINE MOUNTING25
1232150020ABRACKET,ENGINE MOUNTING,RR27
9010512306BOLT,FRANGE88
9010510438BOLT,WASHER BASED HEAD HEXAGON,FR29
9017910211NUT210
1236050120INSULATOR ASSY,ENGINE MOUNTING211
1234950010PIN,ENGINE MOUNTING,RR212
