TMS Reference Figures - Engine

Engine Figure

Click image for full size version | Scroll down to see parts list

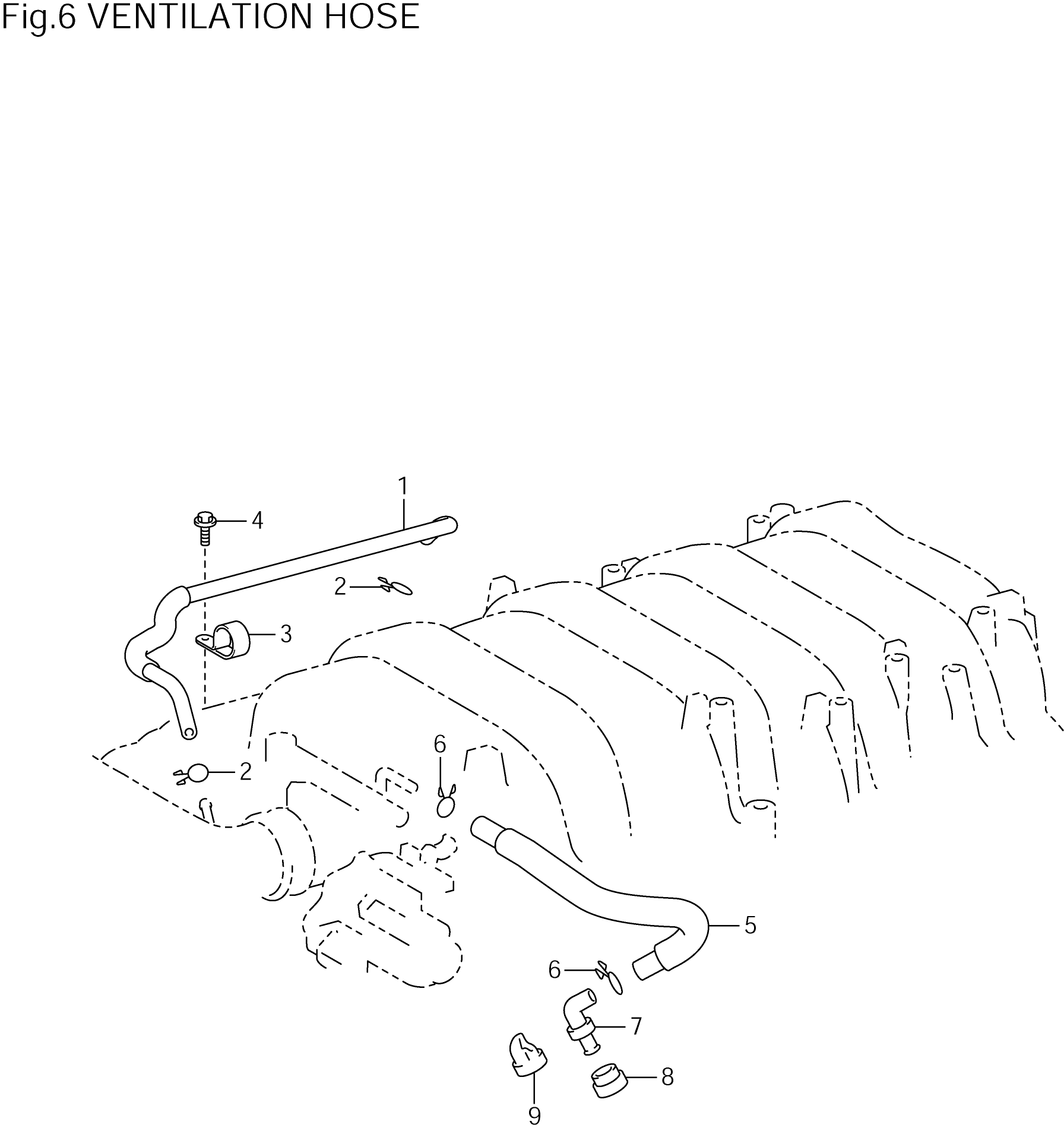

Ventilation Hose

Part NumberDescriptionQuantityReference No.
1226250050AHOSE,VENTILATION NO.211
9046715019CLIP22
9046108719CLAMP13
9011906853ABOLT,W/WASHER14
1226150040HOSE,VENTILATION NO.115
9046715021ACLIP26
1220450020VALVE SUB-ASSY,VENTILATION17
9048018001GROMMET(FOR VENTILATION SYSTEM)18
1223650010COVER,VENTILATION VALVE19
