Engine Figure
Click image for full size version | Scroll down to see parts list

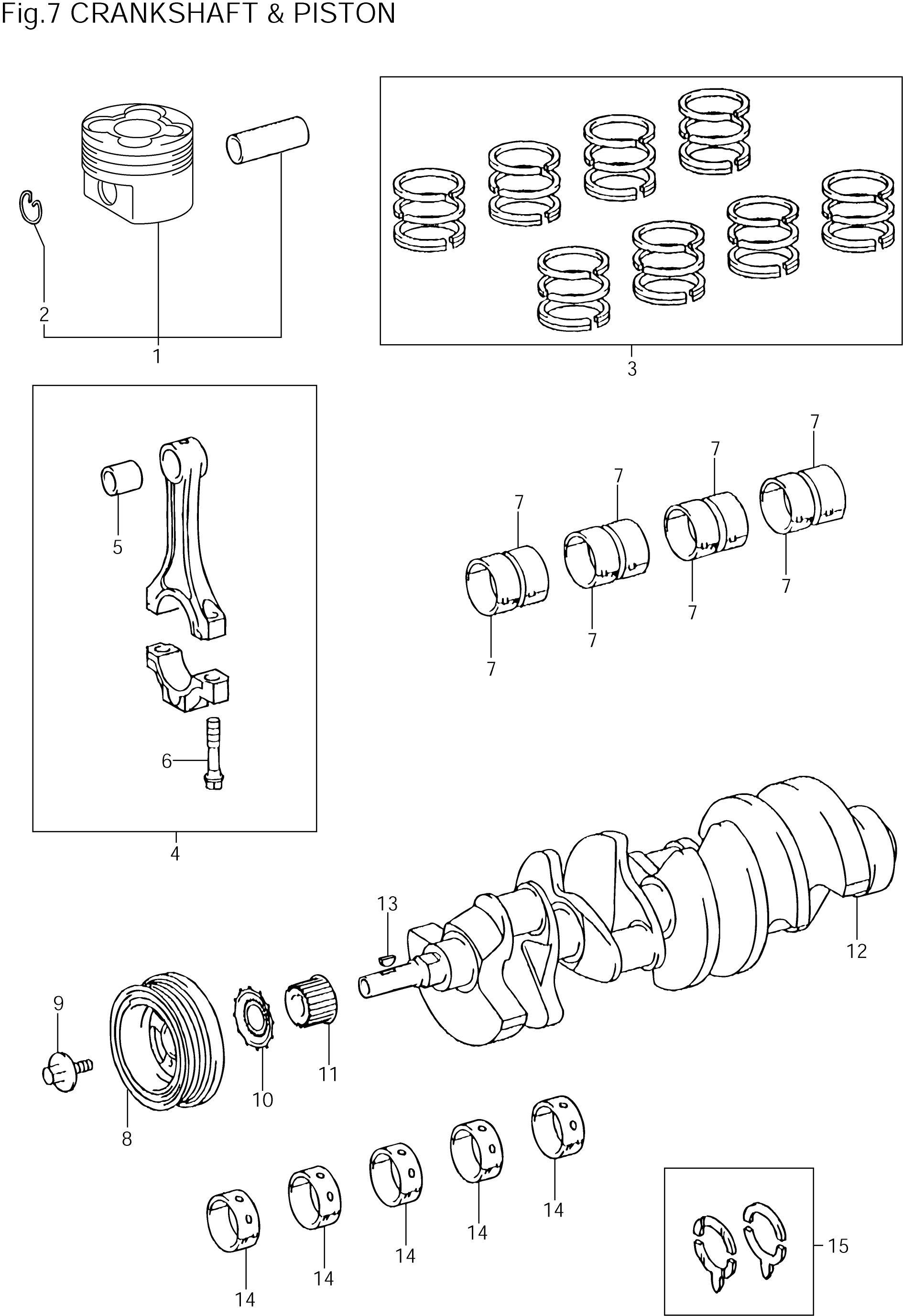

Crankshaft & Piston| Part Number | Description | Quantity | Reference No. | | 131015000000 | PISTON SUB-ASSY,W/PIN STD,MARK 1,RH | 4 | 1 | | 131015000000
| PISTON SUB-ASSY,W/PIN STD,MARK 2,RH | 4 | 1 | | 131015000000 | PISTON SUB-ASSY,W/PIN STD,MARK 3,RH | 4 | 1 | | 133015000000 | PISTON SUB-ASSY,W/PIN STD,MARK 1,LH | 4 | 1 | | 133015000000 | PISTON SUB-ASSY,W/PIN STD,MARK 2,LH | 4 | 1 | | 133015000000
| PISTON SUB-ASSY,W/PIN STD,MARK 3,LH | 4 | 1 | | 9052125004A | RING,HOLE SNAP(FOR PISTON PIN) | 16 | 2 | | 1301150120 | RING SET,PISTON | 1 | 3 | | 1320150030 | ROD SUB-ASSY,CONNECTING | 8 | 4 | | 9038421011 | BUSH(FOR CONNECTING ROD SMALL END) | 8 | 5 | | 1326550020A | BOLT,CONNECTING ROD | 16 | 6 | | 130415000000 | BEARING,CONNECTING ROD MARK 2 | 8 | 7 | | 130415000000 | BEARING,CONNECTING ROD MARK 3 | 8 | 7 | | 130415000000 | BEARING,CONNECTING ROD MARK 4 | 8 | 7 | | 130415000000 | BEARING,CONNECTING ROD MARK 5 | 8 | 7 | | 130415000000 | BEARING,CONNECTING ROD MARK 6 | 8 | 7 | | 130415000000 | BEARING,CONNECTING ROD MARK 7 | 8 | 7 | | 1340750030D | DAMPER SUB-ASSY,CRANKSHAFT | 1 | 8 | | 9010918003B | BOLT(FOR CRANKSHAFT PULLEY SET) | 1 | 9 | | 1931550020A | PLATE,CRANK ANGLE SENSOR,NO.1 | 1 | 10 | | 1352150022 | PULLEY,CRANKSHAFT TIMING | 1 | 11 | | 1341150040A | CRANKSHAFT | 1 | 12 | | 9028005005A | KEY,CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | 1 | 13 | | 49 | BEARING,CRANKSHAFT MARK 1,NO.2,3,4 | 3 | 14 | | 117015000000 | BEARING,CRANKSHAFT MARK 2,NO.2,3,4 | 3 | 14 | | 117015000000 | BEARING,CRANKSHAFT MARK 3,NO.2,3,4 | 3 | 14 | | 117015000000 | BEARING,CRANKSHAFT MARK 4,NO.2,3,4 | 3 | 14 | | 117015000000
| BEARING,CRANKSHAFT MARK 5,NO.2,3,4 | 3 | 14 | | 117015000000
| BEARING,CRANKSHAFT MARK 1,NO.1,5 | 2 | 14 | | 117015000000 | BEARING,CRANKSHAFT MARK 2,NO.1,5 | 2 | 14 | | 117015000000 | BEARING,CRANKSHAFT MARK 3,NO.1,5 | 2 | 14 | | 117015000000 | BEARING,CRANKSHAFT MARK 4,NO.1,5 | 2 | 14 | | 117015000000 | BEARING,CRANKSHAFT MARK 5,NO.1,5 | 2 | 14 | | 117015000000 | BEARING,CRANKSHAFT MARK 6,NO.1,5 | 2 | 14 | | 117015000000 | BEARING,CRANKSHAFT MARK 7,NO.1,5 | 2 | 14 | | 1101150010 | WASHER SET,CRANKSHAFT THRUST | 1 | 15 |
|
