Engine Figure
Click image for full size version | Scroll down to see parts list

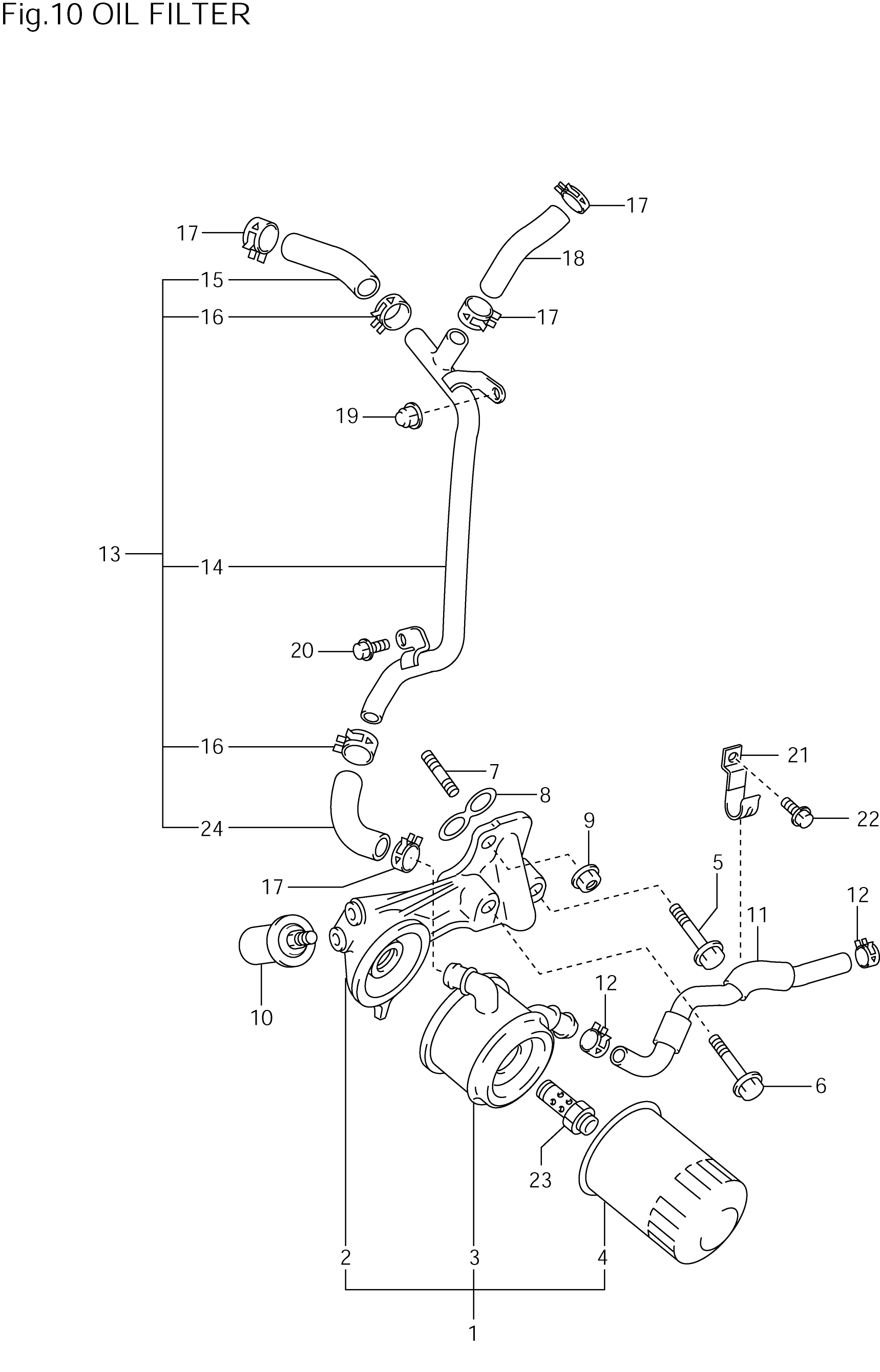

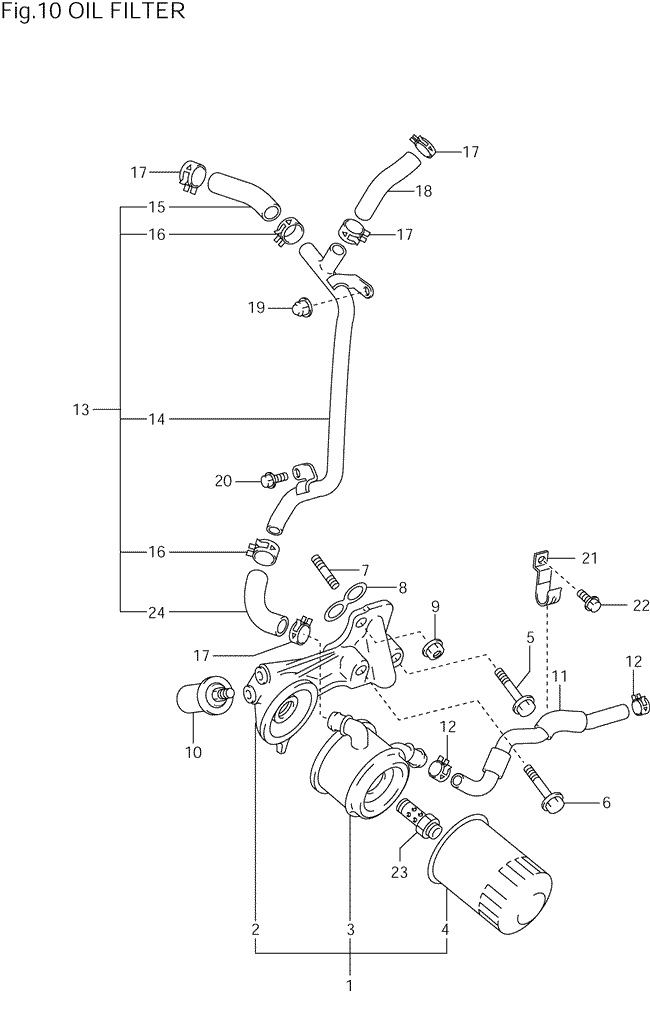

Oil Filter| Part Number | Description | Quantity | Reference No. | | 1570050030 | COOLER ASSY,OIL W/BRACKET | 1 | 1 | | 1560950080 | BRACKET SUB-ASSY,OIL FILTER | 1 | 2 | | 1571050040 | COOLER ASSY,OIL | 1 | 3 | | 9091520002D | FILTER SUB-ASSY,OIL | 1 | 4 | | 9010508366 | BOLT,FLANGE | 1 | 5 | | 9010508367 | BOLT,FLANGE | 1 | 6 | | 9011608345B | BOLT,STUD | 1 | 7 | | 1569250020A | GASKET,OIL FILTER BRACKET | 1 | 8 | | 9017908153A | NUT | 1 | 9 | | 8352067010 | GAGE ASSY,OIL PRESSURE SENDER | 1 | 10 | | 1577750040 | HOSE,OIL COOLER | 1 | 11 | | 9046720011 | CLIP | 2 | 12 | | 1570450050 | PIPE,SUB-ASSY,OIL COOLER | 1 | 13 | | 1576750050 | PIPE,OIL COOLER | 1 | 14 | | 1628150050 | HOSE,WATER BY-PASS,NO.4 | 1 | 15 | | 9046720011 | CLAMP OR CLIP,HOSE | 2 | 16 | | 9046720011 | CLAMP OR CLIP,HOSE | 4 | 17 | | 1629550080 | HOSE,WATER BY-PASS,NO.7 | 1 | 18 | | 9017606023 | NUT,CAP | 1 | 19 | | 91621J0612 | BOLT,W/WASHER | 1 | 20 | | 9046210103 | CLAMP | 1 | 21 | | 9151160810 | BOLT,FLANGE | 1 | 22 | | 1569550010 | BOLT,OIL COOLER UNION | 1 | 23 |
|
