Engine Figure
Click image for full size version | Scroll down to see parts list

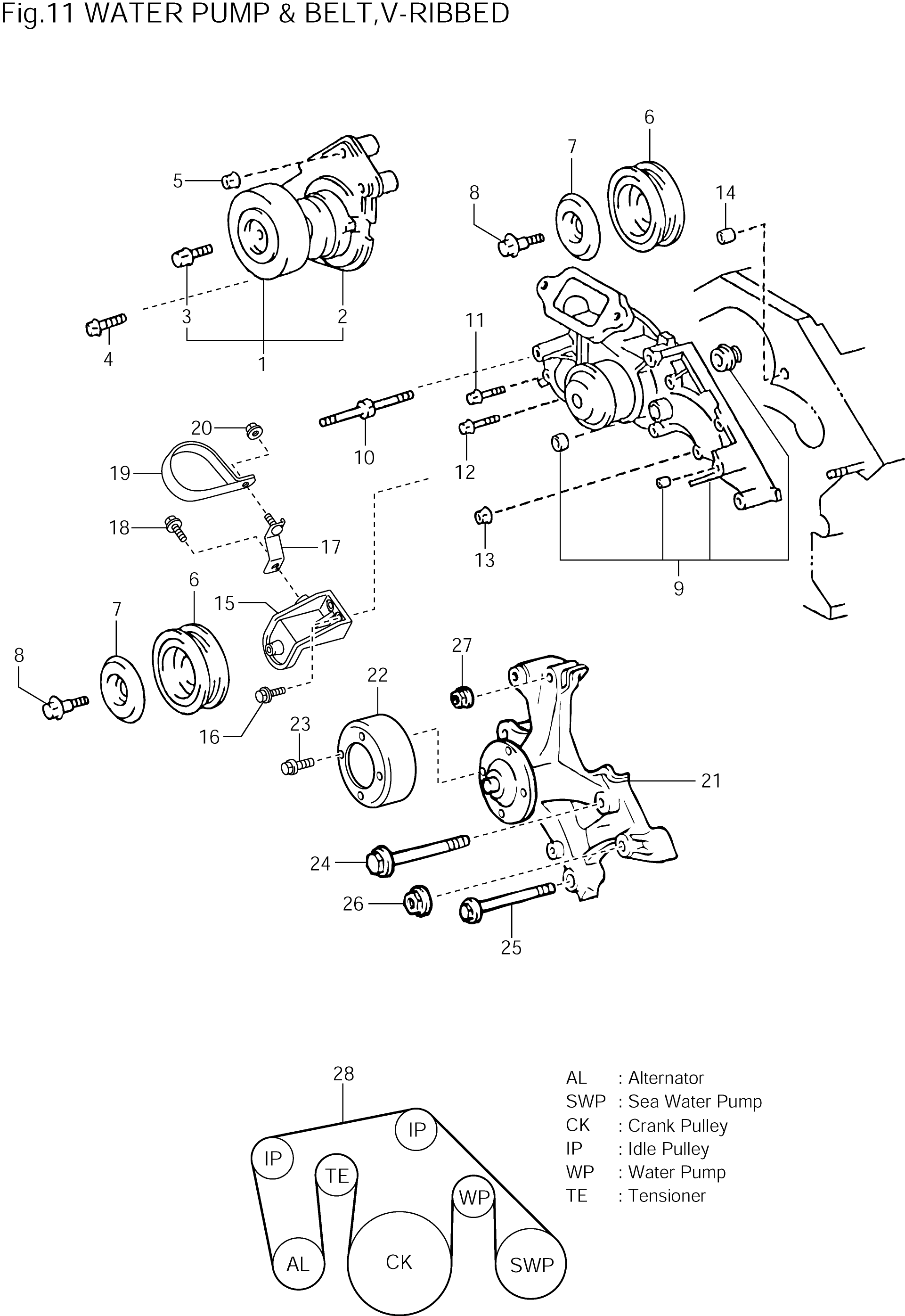

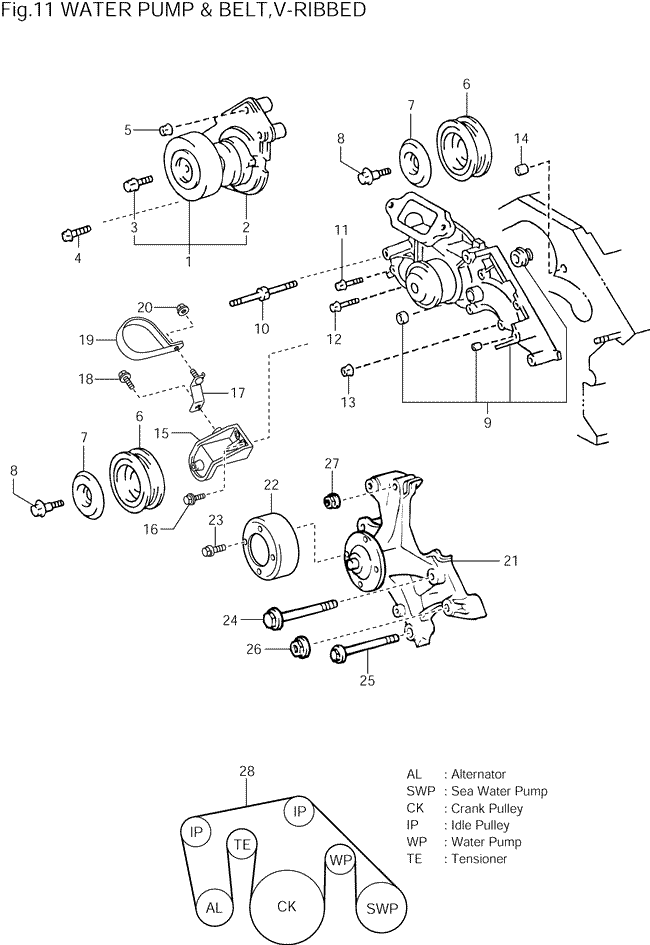

Water Pump & Belt, V-Ribbed| Part Number | Description | Quantity | Reference No. | | 166200W036 | TENSIONER ASSY,V-RIBBED BELT | 1 | 1 | | 166030W010 | PULLEY SUB-ASSY,IDLER,NO.1 | 1 | 2 | | 9010510247B | BOLT,WASHER BASED HEAD HEXAGON | 1 | 3 | | 9011908721B | BOLT,W/WASHER | 1 | 4 | | 9017908153A | NUT | 4 | 5 | | 1660450030 | PULLEY SUB-ASSY,IDLER,NO.2 | 1 | 6 | | 1665950022 | PLATE,IDLER PULLY COVER,NO.2 | 1 | 7 | | 9010510246A | BOLT,WASHER BASED HEAD HEXAGON | 1 | 8 | | 1610050040 | PUMP ASSY,WATER | 1 | 9 | | 9011608301A | BOLT,STUD | 2 | 10 | | 91643K0835 | BOLT,W/WASHER | 2 | 11 | | 91643K0835 | BOLT,W/WASHER | 1 | 12 | | 9017908044A | NUT | 2 | 13 | | 9025311021 | PIN,RING(FOR WATER PUMP SET) | 1 | 14 | | 1663150020B | BRACKET,IDLER PULLY | 2 | 15 | | 9151281025 | BOLT,FRANGE | 1 | 16 | | 1657550010A | BRACKET,WATER HOSE CLAMP | 1 | 17 | | 91511B0812 | BOLT,FRANGE | 1 | 18 | | 9046112431 | CLAMP | 1 | 19 | | 9017908153A | NUT | 1 | 20 | | 1630750020A | BRACKET,S/ASSY,FAN | 1 | 21 | | 1637150030A | PULLEY,FAN | 1 | 22 | | 9009904382 | BOLT,FRANGE | 4 | 23 | | 9011908721B | BOLT,W/WASHER | 1 | 24 | | 9011910552 | BOLT,W/WASHER | 1 | 25 | | 9017910144A | NUT | 1 | 26 | | 9017908153A | NUT | 1 | 27 | | 9091602454 | BELT,V-RIBBED | 1 | 28 |
|
