Engine Figure
Click image for full size version | Scroll down to see parts list

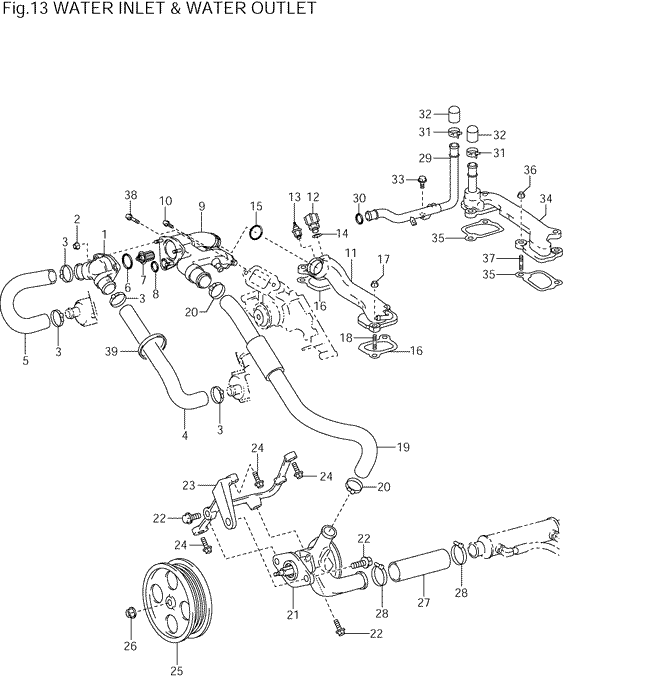

Water Inlet & Water Outlet| Part Number | Description | Quantity | Reference No. | | 1633150020A | OUTLET,WATER | 1 | 1 | | 9017908153A | NUT | 3 | 2 | | 9008046260 | HOSE,CLAMP | 4 | 3 | | 1686350010 | HOSE,SEA WATER,NO.3 | 1 | 4 | | 1686450010 | HOSE,SEA WATER,NO.4 | 1 | 5 | | 1632562010A | GASKET,WATER INLET HOUSING | 1 | 6 | | 9091603113 | THERMOSTAT | 1 | 7 | | 9676119026 | RING,O | 1 | 8 | | 1603250080A | HOSING SUB-ASSY,WATER INLET | 1 | 9 | | 91511J0822 | BOLT,FLANGE | 1 | 10 | | 1635550090 | JOINT,WATER BY-PASS,FR | 1 | 11 | | 8942220010C | SENSOR,WATER TEMPERATURE | 1 | 12 | | 8342067020 | GAGE ASSY,WATER TEMP ERATURE SENDER | 1 | 13 | | 9043012005B | GASKET | 1 | 14 | | 9676135035 | RING,O | 1 | 15 | | 1634150020 | GASKET,WATER OUTLET | 2 | 16 | | 9017908153A | NUT | 4 | 17 | | 92122B0822 | BOLT,STUD | 4 | 18 | | 1686250010 | HOSE,SEA WATER,NO.2 | 1 | 19 | | 9008046259 | HOSE,CLAMP | 2 | 20 | | 1686050010 | PUMP ASSY,SEA WATER | 1 | 21 | | 9151160825 | BOLT,FRANGE | 3 | 22 | | 1688750010 | BRACKET,SEA WATER PUMP | 1 | 23 | | 9151281025 | BOLT,FRANGE | 3 | 24 | | 1688650010 | PULLEY,SEA WATER PUMP | 1 | 25 | | 9017912136 | NUT | 1 | 26 | | 1686150010 | HOSE,SEA WATER,NO.1 | 1 | 27 | | 9008046259 | HOSE,CLAMP | 2 | 28 | | 1620650120C | PIPE SUB-ASSY,WATER BY-PASS | 1 | 29 | | 9676124019 | RING,O (FOR WATER BY-PASS PIPE) | 2 | 30 | | 9046722011 | CLIP | 2 | 31 | | 9033916002 | CAP | 2 | 32 | | 9162160814 | BOLT | 1 | 33 | | 1635650080 | JOINT,WATER BY-PASS,RR | 1 | 34 | | 1634150020 | GASKET,WATER OUTLET | 2 | 35 | | 9017908153A | NUT | 4 | 36 | | 92122B0822 | BOLT,STUD | 4 | 37 | | 9010508267 | BOLT,WASHER BASED HEAD HEXAGON | 1 | 38 | | 9046312011 | CLAMP | 1 | 39 |
|
