TMS Reference Figures - Engine

Engine Figure

Click image for full size version | Scroll down to see parts list

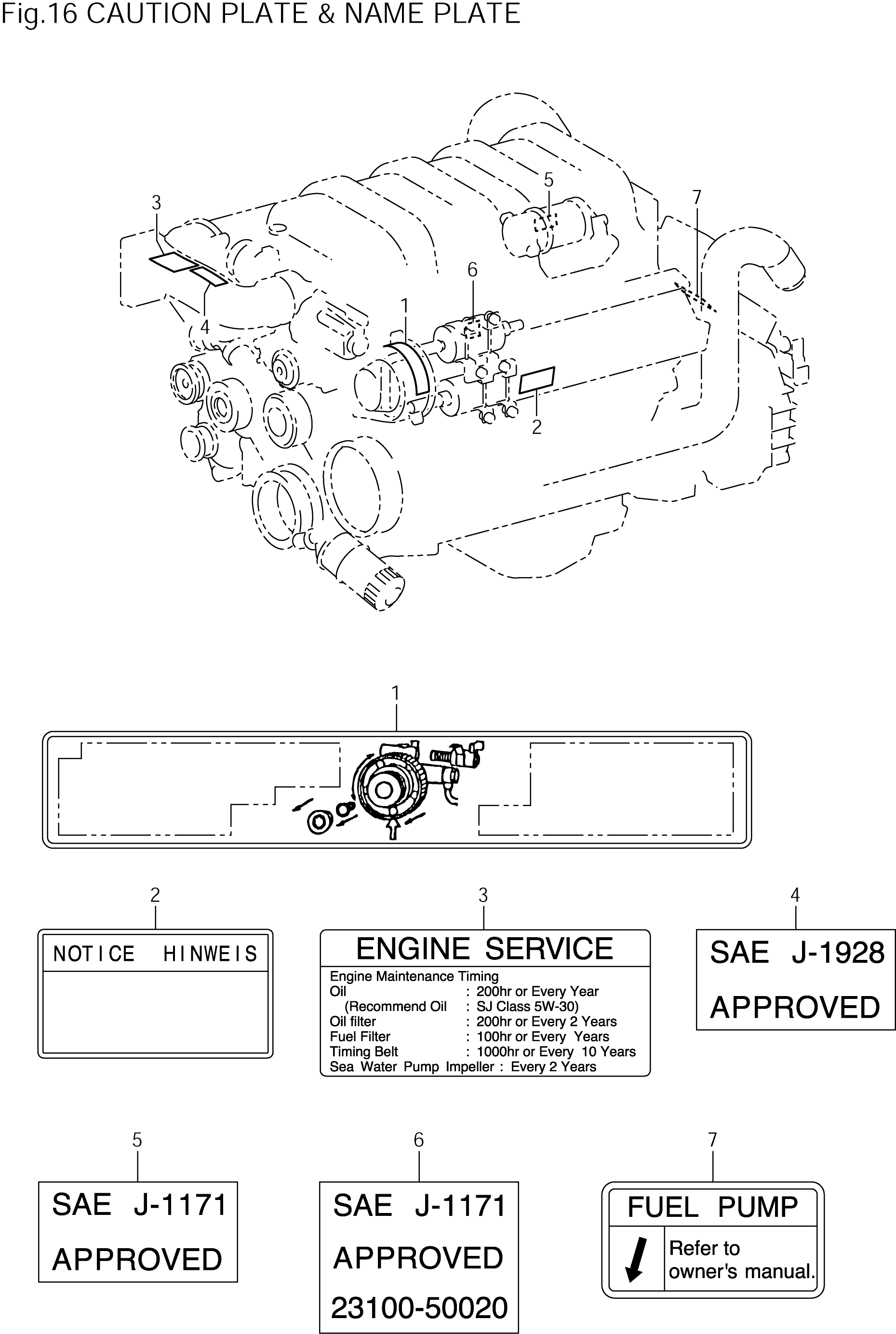

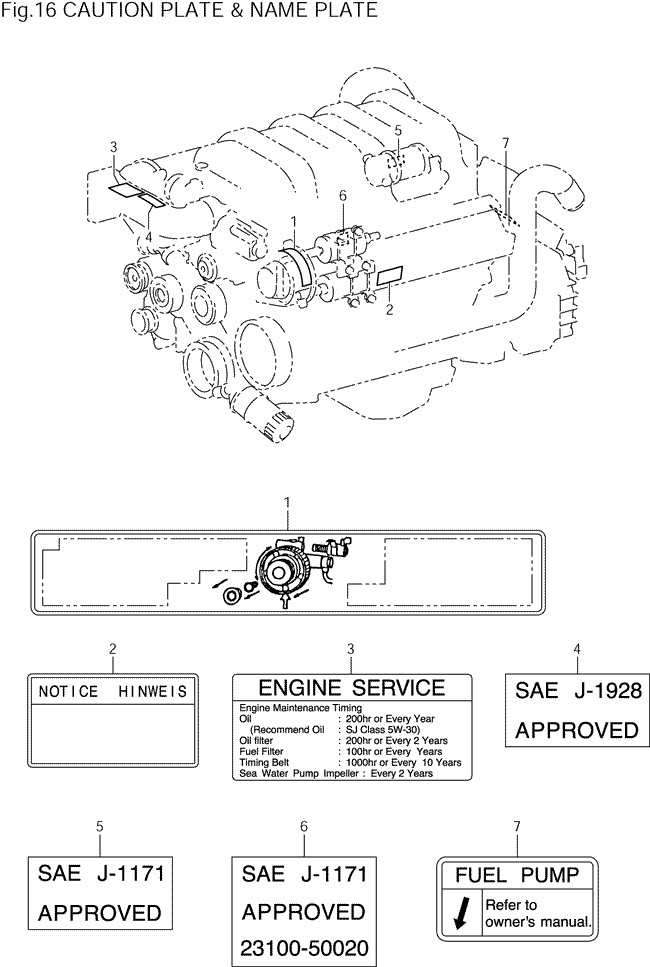

Caution Plate & Name Plate

Part NumberDescriptionQuantityReference No.
1129750010ALABEL,ENGINE SERVICE INFORMATION,NO.211
1128950010LABEL,SPARK PLUG NOTICE12
1129650320LABEL,ENGINE SERVICE INFORMATION13
1129250040LABEL,IDENTIFICATION14
1129250030LABEL,IDENTIFICATION15
1129250050LABEL,IDENTIFICATION16
8265667010LABEL,FUEL PUMP SWITCH IMFORMATION17
