TMS Reference Figures - Engine

Engine Figure

Click image for full size version | Scroll down to see parts list

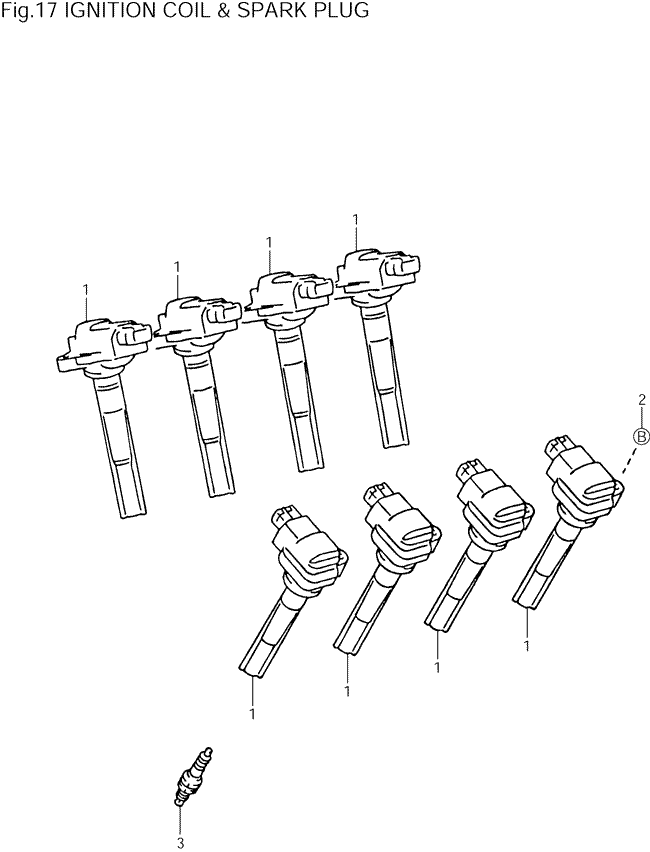

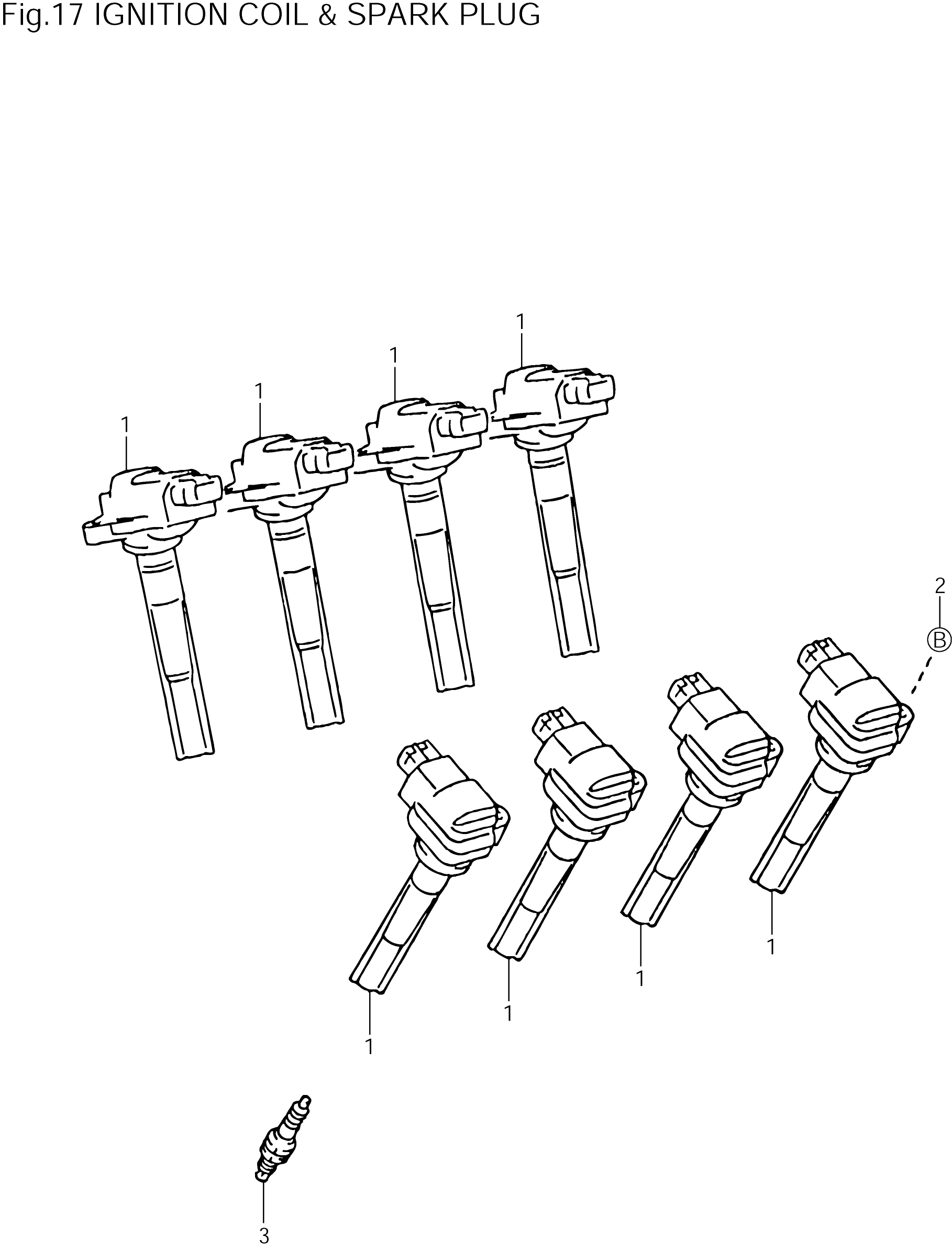

Ignition Coil & Spark Plugs

Part NumberDescriptionQuantityReference No.
9091902228COIL,IGNITION81
91513G0628BOLT,WASHER BASED HEAD HEXAGON82
9091901210PLUG,SPARK83
