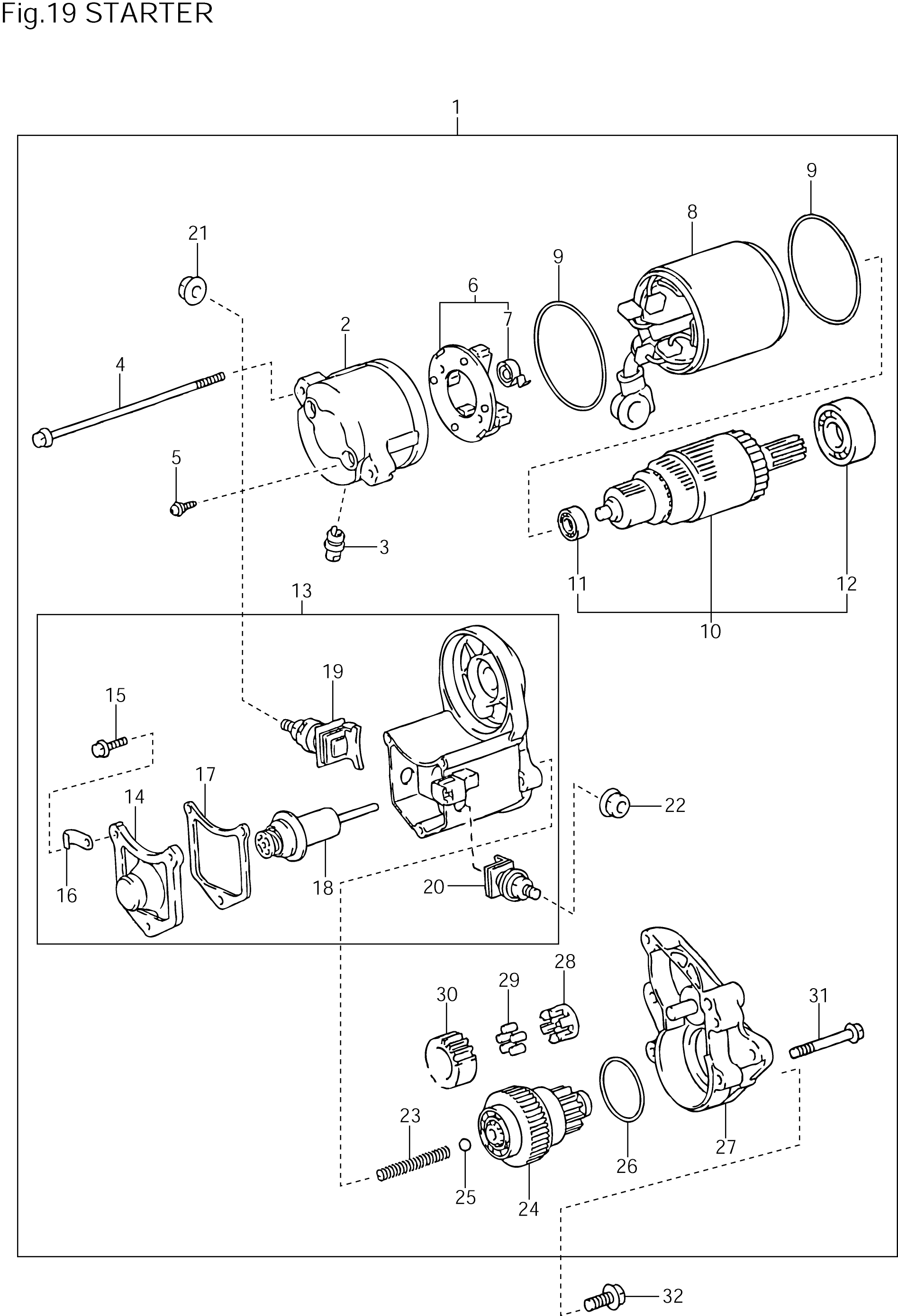

Engine Figure
Click image for full size version | Scroll down to see parts list
Starter| Part Number | Description | Quantity | Reference No. | | 2810050052A | STARTER ASSY | 1 | 1 | | 2813050060 | FRAME ASSY,STARTER COMMUTATER END | 1 | 2 | | 2819950050 | COVER,STARTER | 1 | 3 | | 9009914453 | BOLT | 2 | 4 | | 9009900271 | SCREW | 2 | 5 | | 2814054380 | HOLDER ASSY,STARTER BRUSH | 1 | 6 | | 2814354380 | SPRING,STARTER BRUSH | 4 | 7 | | 2812054380 | YOKE ASSY,STASTER | 1 | 8 | | 9009914064 | RING,O | 2 | 9 | | 2816075120 | ARMATURE ASSY,STARTER | 1 | 10 | | 9009910197 | BEARING,STARTER ARMATURE NO.1 | 1 | 11 | | 9009910208 | BEARING,STARTER ARMATURE NO.2 | 1 | 12 | | 2815050061 | SWITCH ASSY,MAGNET STARTER | 1 | 13 | | 2815954380 | COVER,MAGNET SWITCH | 1 | 14 | | 9009904475 | BOLT | 3 | 15 | | 2816954380 | CLAMP,STARTER MOTOR LEAD WIRE | 1 | 16 | | 2817554380 | GASKET,MAGNET SWITCH COVER | 1 | 17 | | 2823554380 | PLUNGER,MAGNET SWITCH | 1 | 18 | | 2822654410 | STARTER KIT,BATTERY TERMINAL | 1 | 19 | | 2822672010 | STARTER KIT,MOTOR TERMINAL | 1 | 20 | | 9009905129 | NUT | 1 | 21 | | 9009905251 | NUT | 1 | 22 | | 2816576070 | SPRING,STARTER MAGNET SWITCH RETURN | 1 | 23 | | 2801150060 | CLUTCH SUB-ASSY,STARTER | 1 | 24 | | 9009912009 | BALL | 1 | 25 | | 9671124040 | RING,O | 1 | 26 | | 2811050060 | HOUSING ASSY,STARTER DRIVE | 1 | 27 | | 2822974070 | RETAINER,STARTER IDLE GEAR | 1 | 28 | | 2822826040 | ROLLER,STARTER IDLE GEAR CLUTCH | 5 | 29 | | 2825464130 | GEAR,STARTER IDLE | 1 | 30 | | 9009900253 | BOLT | 2 | 31 | | 9017908146 | NUT | 1 | 32 | | 9011910597 | BOLT,W/WASHER | 2 | 33 |
|
