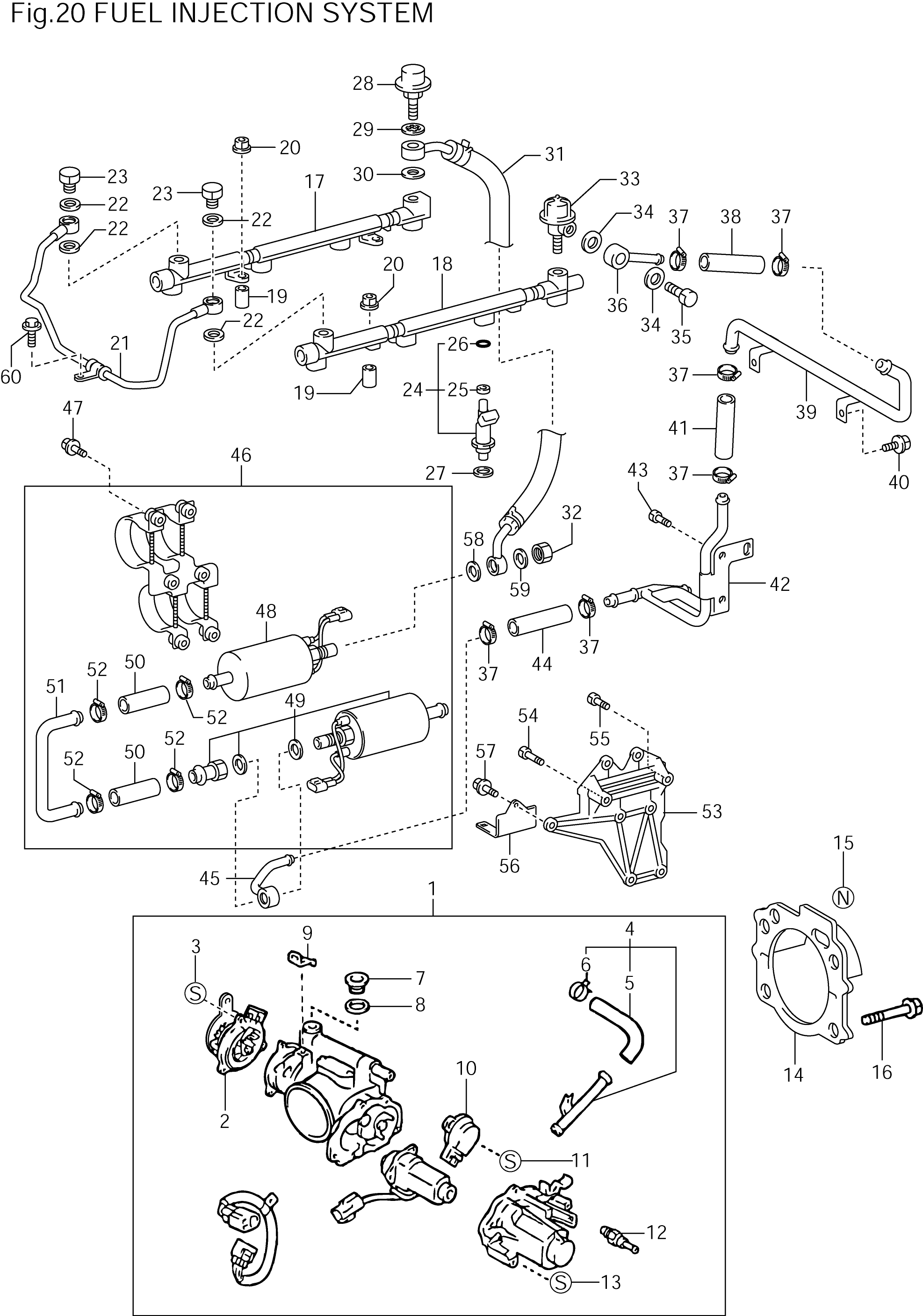

Engine Figure
Click image for full size version | Scroll down to see parts list
Fuel Injection System| Part Number | Description | Quantity | Reference No. | | 2203050120A | BODY ASSY,THROTTLE W/MOTOR | 1 | 1 | | 2206050020 | LEVER ASSY,THROTTLE W/SENSOR | 1 | 2 | | 9331516016 | SCREW,W/WASHER | 3 | 3 | | 1602550020C | PIPE,WATER BY-PASS,NO.5 | 1 | 4 | | 1628250030A | HOSE,WATER BY-PASS,NO.5 | 1 | 5 | | 9046720011 | CLIP(FOR WATER BY-PASS HOSE,NO.1) | 2 | 6 | | 9034120012 | PLUG,STRAIGHT SCREW W/HEAD | 1 | 7 | | 9043020017 | GASKET | 1 | 8 | | 8271540040 | BRACKET,WIRING HARNESS CLAMP | 1 | 9 | | 8945230140 | SENSOR,THROTTLE POSITION | 1 | 10 | | 9321915012 | SCREW | 2 | 11 | | 9091603104 | THERMOSTAT,MANIFOLD | 1 | 12 | | 9321915012 | SCREW | 6 | 13 | | 2227150041 | GASKET,THROTTLE BODY | 1 | 14 | | 9017908153A | NUT | 2 | 15 | | 9010508286A | BOLT,WASHER BASED HEAD HEXAGON | 2 | 16 | | 2380750060 | PIPE SUB-ASSY,FUEL DELIVERY,RH | 1 | 17 | | 2380850050 | PIPE SUB-ASSY,FUEL DELIVERY,LH | 1 | 18 | | 9056108029A | SPACER | 4 | 19 | | 9017908175A | NUT | 4 | 20 | | 2380150041 | PIPE SUB-ASSY,FUEL,FR | 1 | 21 | | 9043012026 | GASKET | 4 | 22 | | 9040112023 | BOLT,UNION | 2 | 23 | | 2320950030B | INJECTOR SET,FUEL | 8 | 24 | | 9048013005 | GROMMET(FOR FUEL INJECTOR) | 8 | 25 | | 9030107024 | RING,O(FOR FUEL INJECTOR) | 8 | 26 | | 2329120010 | INSULATOR,INJECTOR VIBRATION | 8 | 27 | | 2320746010 | DAMPER SET,FUEL PRESSURE PULSATION | 1 | 28 | | 2323241081 | GASKET | 1 | 29 | | 9043012026B | GASKET | 1 | 30 | | 2380450030A | PIPE SUB ASSY,FUEL INLET | 1 | 31 | | 2312750020 | NUT,FUEL PUMP | 1 | 32 | | 2328050060 | REGULATOR ASSY,FUEL PRESSURE | 1 | 33 | | 9043010012 | GASKET | 2 | 34 | | 9040110038A | BOLT,UNION | 1 | 35 | | 2380350110 | PIPE SUB-ASSY,FUEL NO.3 | 1 | 36 | | 9008046268 | CLAMP,HOSE | 6 | 37 | | 2328250010 | HOSE,FUEL,NO.4 | 1 | 38 | | 2381650010A | PIPE,FUEL,NO.4 | 1 | 39 | | 9011908B40A | BOLT,W/WASHER | 2 | 40 | | 2327150170 | HOSE,FUEL,NO.1 | 1 | 41 | | 2380250051 | PIPE SUB-ASSY,FUEL,NO.2 | 1 | 42 | | 9151160610 | BOLT,FLANGE | 2 | 43 | | 2327350030 | HOSE,FUEL,NO.2 | 1 | 44 | | 2381250010A | PIPE,FUEL,NO.2 | 1 | 45 | | 2310050020 | PUMP ASSY,FUEL | 1 | 46 | | 9011906854 | BOLT,W/WASHER | 6 | 47 | | 2310150020 | PUMP S/A,FUEL NO.1 | 1 | 48 | | 2310150030 | PUMP S/A,FUEL NO.2 | 1 | 49 | | 2327450010 | HOSE,FUEL,NO.3 | 2 | 50 | | 2381150010A | PIPE,FUEL,NO.1 | 1 | 51 | | 9008046268 | CLAMP,HOSE | 4 | 52 | | 2326550020 | BRAKET,FUEL PUMP NO.1 | 1 | 53 | | 9151180845 | BOLT,FLANGE | 1 | 54 | | 9151180830 | BOLT,FLANGE | 1 | 55 | | 8271567050 | BRACKET,WIRING HARNESS CLAMP | 1 | 56 | | 91621J0612 | BOLT,W/WASHER | 1 | 57 | | 2323241081 | GASAKET | 1 | 58 | | 2312450020 | WASHER | 1 | 59 | | 91621J0612 | BOLT,W/WASHER | 1 | 60 |
|
