Engine Figure

Click image for full size version | Scroll down to see parts list

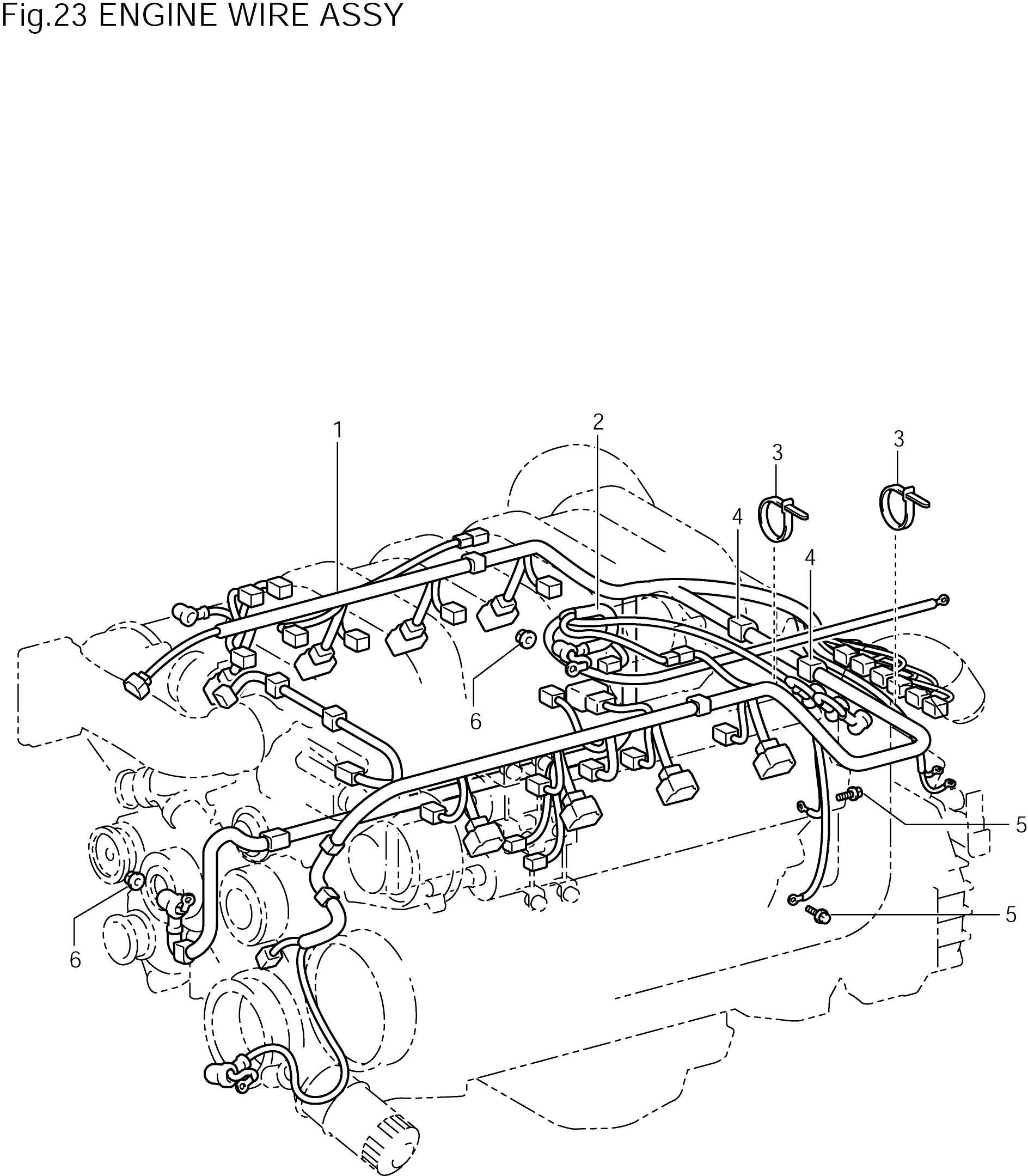

Engine Wire Assy

Part NumberDescriptionQuantityReference No.
8205067011WIRE ASSY,ENGINE11
8212267011WIRE,ENGINE NO.212
9046312011CLAMP23
8271120870BCLAMP,WIRING HARNESS14
9162160816BOLT,W/WASHER25
9017908146NUT26
