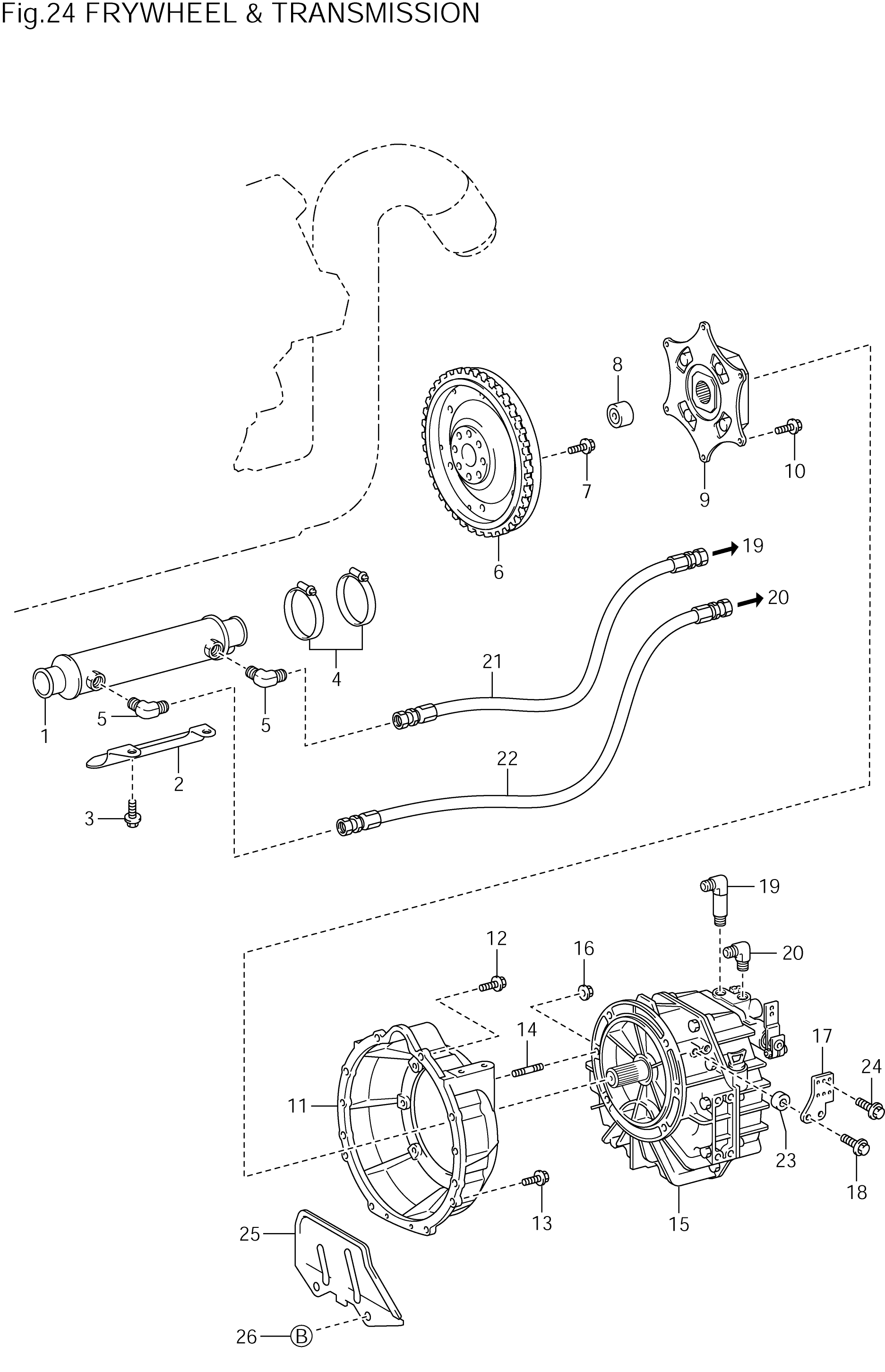

Engine Figure
Click image for full size version | Scroll down to see parts list
Frywheel & Transmission| Part Number | Description | Quantity | Reference No. | | 3349067010 | COOLER ASSY,TRANSMISSION OIL | 1 | 1 | | 3291367010 | BRACKET,TRANSMISSION OIL COOLER | 1 | 2 | | 91641C0614 | BOLT,W/WASHER | 2 | 3 | | 9008046267 | CLAMP,HOSE | 2 | 4 | | 9040719001 | CONNECTOR,ELBOW | 2 | 5 | | 1340550030A | FLYWHEEL,SUB-ASSY | 1 | 6 | | 9091002127 | BOLT | 8 | 7 | | 9036312001 | BEARING,RADIAL BALL | 1 | 8 | | 1340650010 | COUPLING SUB-ASSY,ENGINE DRIVE | 1 | 9 | | 9151180816 | BOLT,FLANGE | 6 | 10 | | 1135150020B | HOUSING,FLYWHEEL | 1 | 11 | | 9151261235 | BOLT,FLANGE | 6 | 12 | | 9151261030 | BOLT,FLANGE | 4 | 13 | | 9011610096A | BOLT,STUD | 6 | 14 | | 3311067010 | TRANSMISSION ASSY | 1 | 15 | | 9017910089 | NUT | 6 | 16 | | 3382367010A | BRACKET,TRANSMISSION CONTROL CABLE | 1 | 17 | | 9151160832 | BOLT,FLANGE | 2 | 18 | | 9040719002 | CONNECTOR,ELBOW | 1 | 19 | | 9040719001 | CONNECTOR,ELBOW | 1 | 20 | | 3293067010 | HOSE ASSY,T/M OIL COOLER,NO.1 | 1 | 21 | | 3294067010 | HOSE ASSY,T/M OIL COOLER,NO.2 | 1 | 22 | | 9056008097D | SPACER | 2 | 23 | | 9010505054 | BOLT,WASHER BASED HEAD HEXAGON | 2 | 24 | | 1136150020 | COVER,FLYWHEEL HOUSING UNDER | 1 | 25 | | 9011908760 | BOLT | 2 | 26 |
|
