TMS Reference Figures - Engine

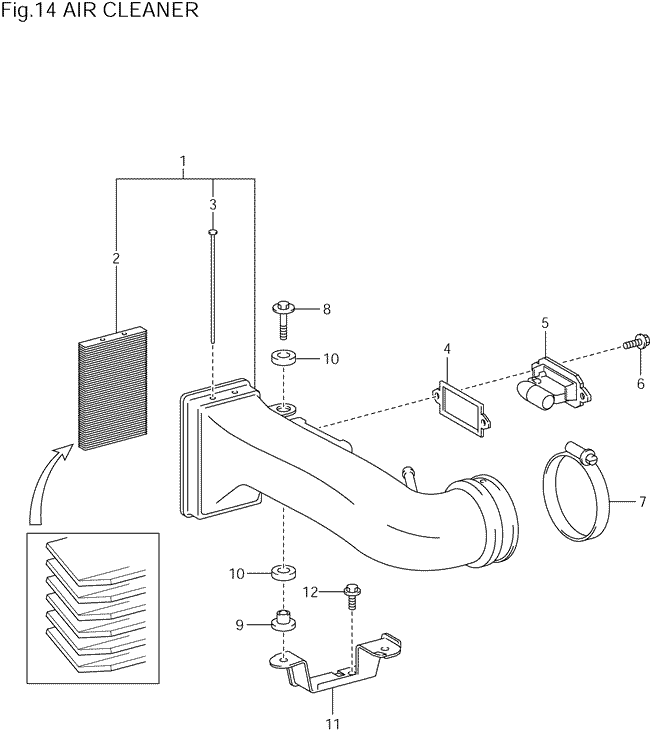

Figure 14

Click image for full size version | Scroll down to see parts list



Figure

Part NumberDescriptionQuantityReference No.
1786050130CONNECTOR ASSY,INTAKE AIR11
1780150050ELEMENT SUB-ASSY,AIR CLEANER FILTER12
9024103019PIN,W/HEAD23
2227550030GASKET,AIR FLOW METER14
2220420010METER SUB-ASSY,INTAKE AIR FROW15
9010906236ABOLT26
9046099005CLAMP,HOSE17
9011906854BOLT W/WASHER18
9038911022COLLAR19
9054010022ACUSHION210
1787150010ASTAY,AIR CONNECTOR111
9011906853BOLT W/WASHER112
