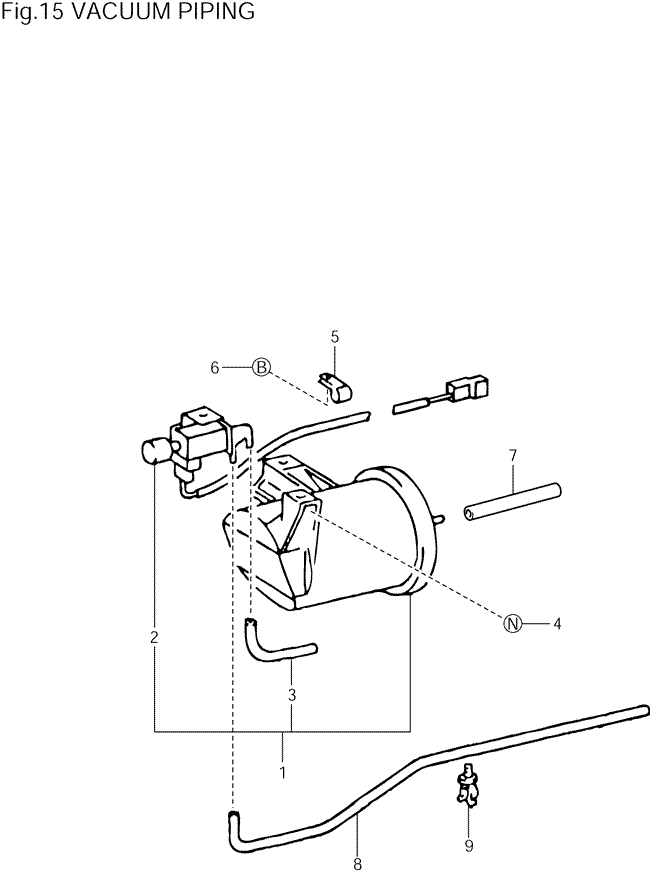

Figure 15

Click image for full size version | Scroll down to see parts list



Figure 15

Part NumberDescriptionQuantityReference No.
2580450011VALVE SET,VACUUM CONTROL11
2586050121VALVE ASSY,VACUUM SWITCHING12
9541119911HOSE,VACUUM13
9017908175NUT24
9046110829CLAMP15
91621J0612BOLT,FLANGE16
9541119920HOSE,VACUUM17
9541119954HOSE,VACUUM18
9092901394CLAMP19
