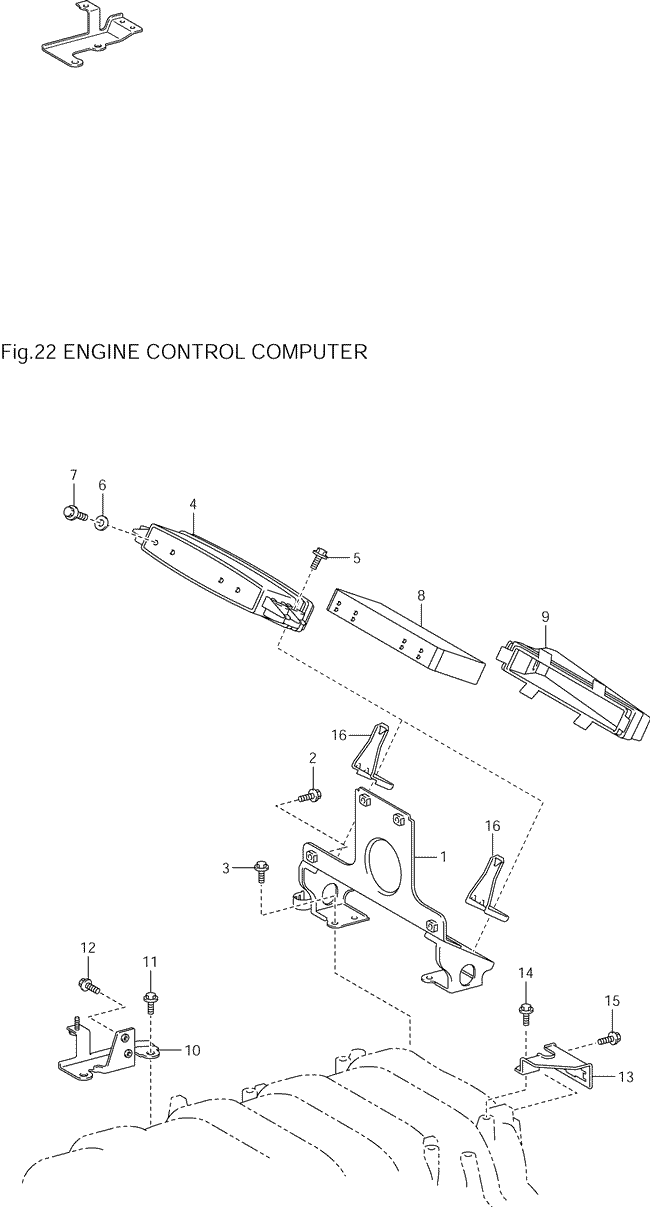

Figure 22

Click image for full size version | Scroll down to see parts list



Figure

Part NumberDescriptionQuantityReference No.
8966767010BBRACKET,ENGINE CONTROL COMPUTER11
9011908B40ABOLT,W/WASHER22
9011908B40ABOLT,W/WASHER43
8967967010CASE,ENGINE CONTROL COMPUTER14
9011906854BOLT,W/WASHER45
9021007001BWASHER,SEAL46
9010505054BOLT,WASHER BASED HEAD HEXAGON47
8966167010COMPUTER,ENGINE CONTROL18
8281467010BOOT,WIRE HARNESS19
7847167021BRACKET,THROTTLE CONTROL CABLE110
91511J0820BOLT211
9151160510BOLT,FLANGE212
8271567010BRACKET,WIRING HARNESS CLAMP113
91621J0612BOLT,W/WASHER114
91511B0812BOLT,FLANGE115
8271567030BRACKET,WIRING HARNESS CLAMP216
