TMS Reference Figures - Engine

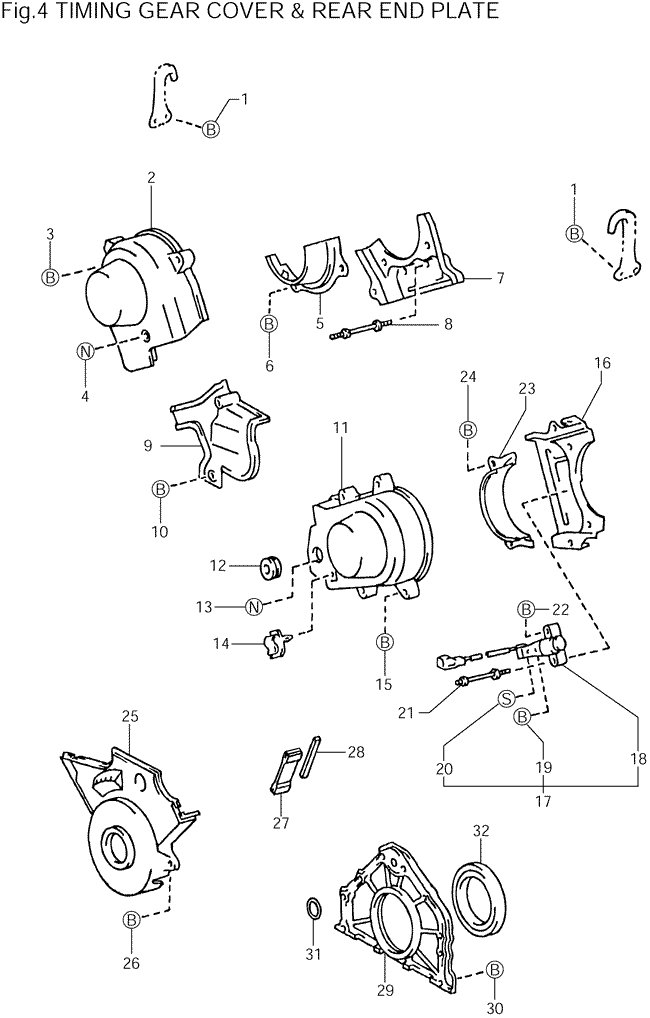

Figure 4

Click image for full size version | Scroll down to see parts list



Figure

Part NumberDescriptionQuantityReference No.
9151281018BOLT,W/WASHER41
1130450020COVER,SUB-ASSY,TIMING BELT,NO.3 RH12
9010506132BOLT33
9017606023NUT14
1134350020PLATE,TIMING BELT,RR RH NO.215
9162160610BOLT36
1134150020PLATE,TIMING BELT,RR RH17
9010906320BOLT18
1130350030COVER SUB-ASSY,TIMING BELT,NO.219
9011908721BOLT210
1130850030COVER SUB-ASSY,TIMING BELT,NO.3 LH111
9048026025GROMMET112
9017606023NUT113
9046709031CLIP114
9010506132BOLT415
1134250020PLATE,TIMING BELT,RR LH116
1930050020ASENSOR ASSY,CAM POSITION117
9091905040SENSOR,CRANK POSITION118
9009904366BOLT119
9009900875SCREW120
9010906321BOLT121
9151160630BOLT122
1134450020PLATE,TIMING BELT,RR LH NO.2123
9162160610BOLT324
1130250040COVER,TIMING BELT NO.1125
9010506032BOLT,WASHER426
1134850011SPACER,TIMING GEAR COVER127
1133850010GASKET,TIMING CHAIN COVER NO.2128
1138150021RETAINER,ENGINE REAR OIL SEAL129
9011906559BOLT730
9672124025RING,O(FOR OIL SEAL RETAINER)131
9031195012SEAL,ENGINE REAR OIL132
