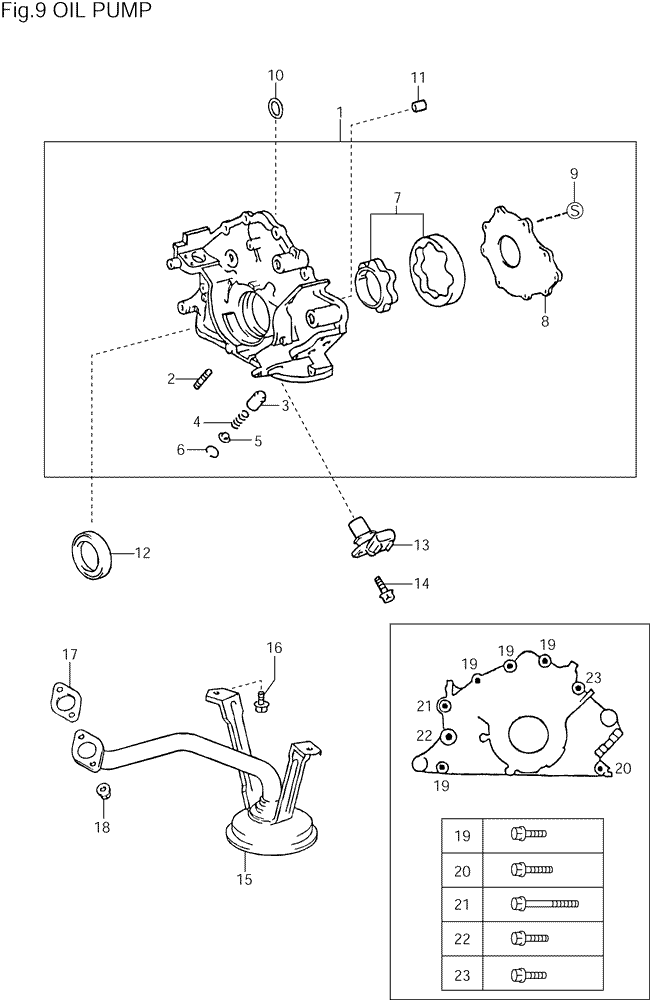

Figure 9
Click image for full size version | Scroll down to see parts list
Figure 9| Part Number | Description | Quantity | Reference No. | | 1510050041 | PUMP ASSY,OIL | 1 | 1 | | 1619315010 | BOLT,STUD | 2 | 2 | | 1513146060 | VALVE,OIL PUMP RELIEF | 1 | 3 | | 1513246020 | SPRING,OIL PUMP RELIEF VALVE | 1 | 4 | | 1513317010 | PLUG,OIL PUMP RELIEF VALVE | 1 | 5 | | 9615101500 | RING,SNAP | 1 | 6 | | 1510350040 | ROTOR SUB-ASSY OIL PUMP | 1 | 7 | | 1511550040 | COVER,OIL PUMP | 1 | 8 | | 9322016014 | SCREW | 10 | 9 | | 9672124025 | RING,O(FOR OIL PUMP) | 1 | 10 | | 9025313017 | PIN,RING(FOR OIL PUMP SET) | 2 | 11 | | 9031143006 | SEAL,TYPE T OIL(FOR OIL PUMP) | 1 | 12 | | 9091905035 | SENSOR,CRANK POSITION | 1 | 13 | | 9011906495A | BOLT,W/WASHER | 1 | 14 | | 1510450130 | STRAINER SUB-ASSY OIL | 1 | 15 | | 9162160612 | BOLT,W/WASHER | 2 | 16 | | 1514750011 | GASKET,OIL STRAINER | 1 | 17 | | 9017906307 | NUT | 2 | 18 | | 91643K0835 | BOLT,W/WASHER | 4 | 19 | | 9011908765B | BOLT,W/WASHER | 1 | 20 | | 9011908721B | BOLT,W/WASHER | 1 | 21 | | 9011910562B | BOLT,W/WASHER | 1 | 22 | | 9011008033A | BOLT,HEXAGON SOCKET HEAD CAP | 1 | 23 |
