TMS Reference Figures - Boat

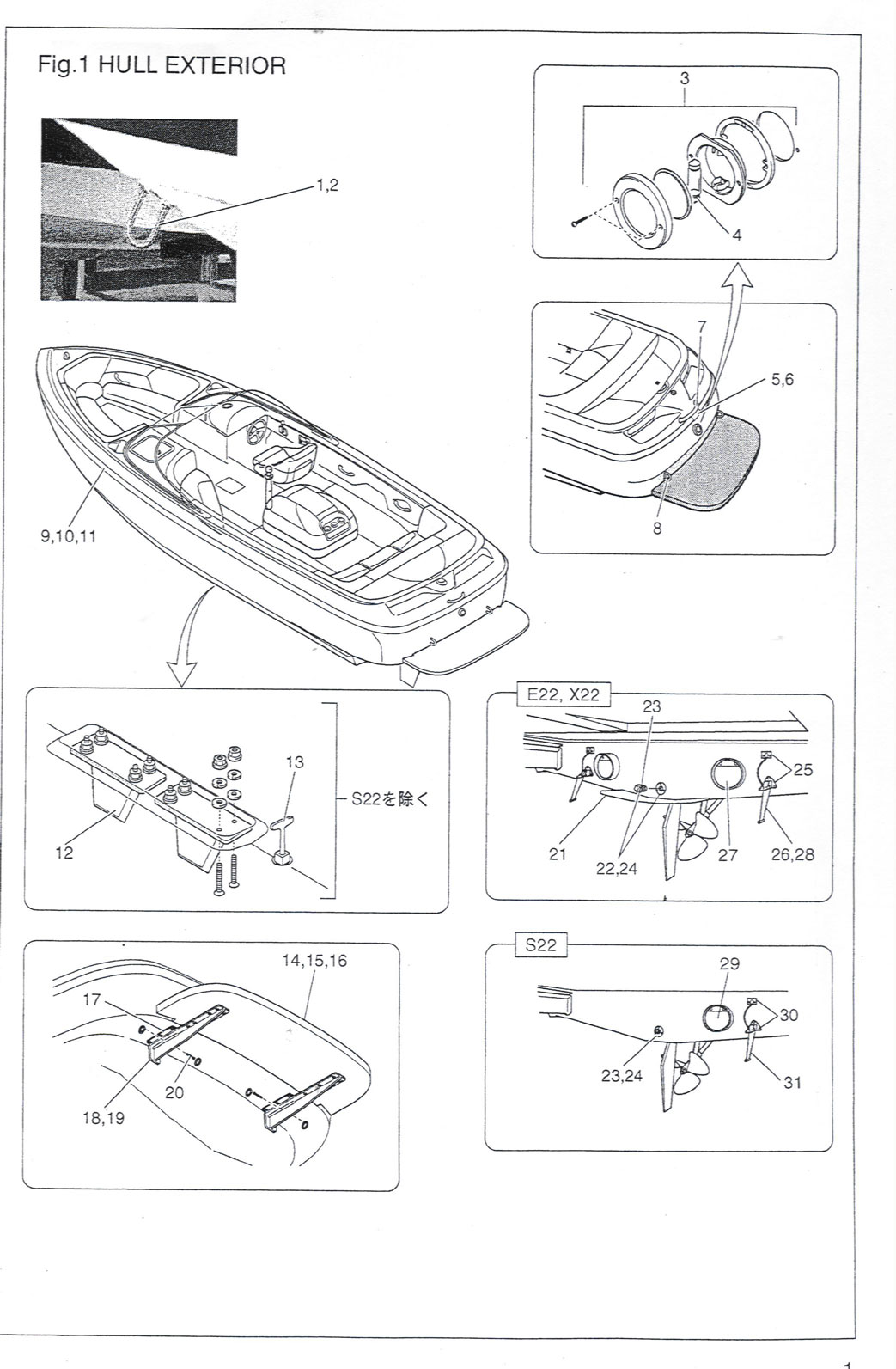

Figure 1

Print the larger version   |   Scroll down for parts list

Print the larger version   |   Right click to download all figures as .pdf (69 Megs)



Figure 1


Part No.DescriptionFigureNumberOriginal PriceShipping*Purchase
MEX0011546ExhaustPort,Transom,4",S22,SX22,Plastic,Black29 25.14 15.00
MEXH000127ExhaustPort,Transom,3"AllDirectDrive,Plastic,Black27 22.50 15.00
MHH0010350Eye,BoatBuddy,3-1/2"x1/2",SS27.78 15.00
MHH0010351Eye,Lifting,Transom,LongEye,SS27.22 15.00
MHH0010871Bracket,SwimPlatform,Female&Male,w/Pin,RTMUseOnly,Alum,Black19 106.44 15.00
MHH0011018SwimPlatform,RTM,'01E22,X22,S22,SX22,White14 690.78 120.00
MHH0011111Plate,HullWake,E22,X22,AluminumAnodize21 133.75 15.00
MHH0011191Drain,Transom,w/Plug,Brass24 24.31 15.00
MHH001119101Plug,TransomDrain,Brass23 n/a
MHH0011269SwimPlatform,Teak,E21,NoBrackets,15 652.78 150.00
MHH0011298Venturi,PickUp,w/MountingPad,Plastic,Black,MellenniumDash25,28,31 52.61 15.00
MHH0011376SwimPlatform,Teak,E22,X22,NoBrackets16 680.56 150.00
MHH0011858Drain,Transom,1",Plastic,Black22 12.06 15.00
MHHE000120KeelPlate,SS
MHHP000163ThruHull,GarboardDrain,w/"T"Handle,Bronze13 18.89 15.00
MHHY00014501Bracket,SwimPlat,Female&Male,w/Pin,TealUseOnly,Alum,Black18 92.56 30.00
MHHY00014502Bracket,SwimPlatform,HullMount,Male,AllModels,Alum,Black17
MHHY00014503Pin,Mounting Bracket,SwimPlatform,3/16x1-7/16",SS20
MHHZ600238Venturi,PickUp,w/MountingPad,Plastic,Black,99MYOnly26 n/a
MLN0010131Light,Navigation,Transom,Round,Chrome
MLN001013101Bulb,Replacement,TransomNavigationLight,12v
MRA0011190Handle,Transom,w/Pads,9",1"Studs,SS20.97 15.00
MRR0010183RubRail,Soft,55Ft,Black10 145.13 30.00
MRR0010184RubRail,RigidBase,6FTSections,Black43.41 25.00
MRR0010224CoverPlate,RubRail,TransomJoint,Black12.44 15.00
MRR0010853RubRail,Soft,55FT,White11 149.86 30.00
MRR0010947CoverPlate,RubRail,TransomJoint,White12.44 15.00
MSP0010189Fin,BoatTracking,Bronze12 53.81 15.00

* SHIPPING INFO: Most items ship next day after Paypal funds are secured. Shipping cost may vary depending on quantity of items purchased, weight and other variables. If additional shipping funds are required, Capt Rick will contact you. For more info email Capt Rick

DISCLAIMER: The seller of these parts is an authorized Toyota Parts Distributor using customer drop shipment. The site owners and administrators of epicmarine.com hold no liability for parts purchased through this site. This is a community site and NOT affiliated with the now defunct Toyota Marine Sports division of Toyota. As a community site, we depend on the integrity of it's members.

Download the entire Parts List in Excel format: Marine_Parts_List_2005.xls
