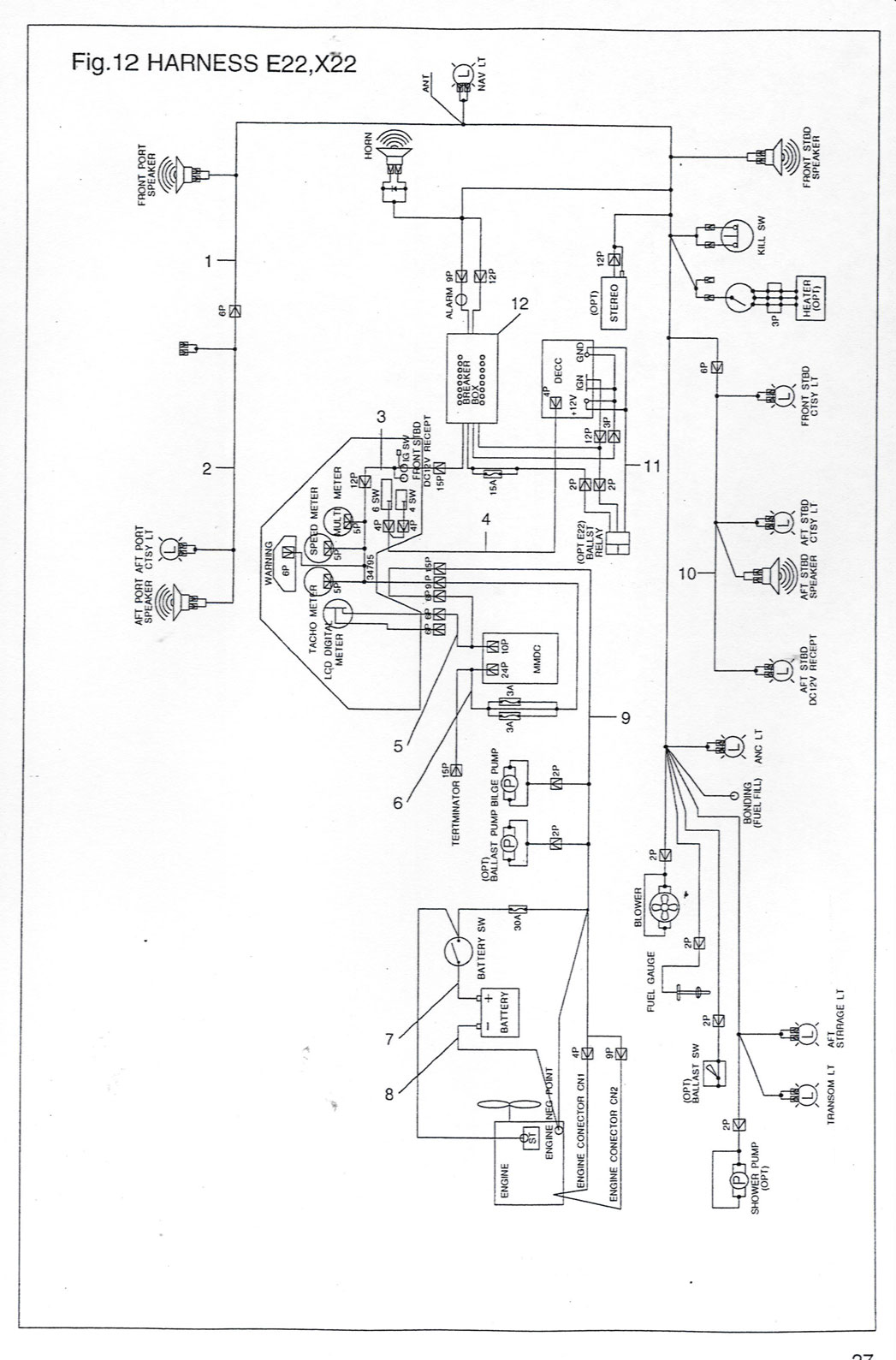

Figure 12

Print the larger version   |   Scroll down for parts list

Print the larger version   |   Right click to download all figures as .pdf (69 Megs)


Figure 12

Part No.DescriptionFigureNumberOriginal PriceShipping*Purchase
MCW0010337Harness,Main/Accessory,15Pin,99E22,X2212 238.03 15.00
MCW0010514Harness,SideCoaming,Port,6Pin,E22,X2212 38.58 15.00
MCW0010515Harness,SideCoaming,Stbd,w/12vOutlet,6Pin,E22,X2212 10 76.08 15.00
MCW0011317Harness,IgnitionKeySwitchTo15Pin&12PinHarness12 32.14 15.00

* SHIPPING INFO: Most items ship next day after Paypal funds are secured. Shipping cost may vary depending on quantity of items purchased, weight and other variables. If additional shipping funds are required, Capt Rick will contact you. For more info email Capt Rick

DISCLAIMER: The seller of these parts is an authorized Toyota Parts Distributor using customer drop shipment. The site owners and administrators of hold no liability for parts purchased through this site. This is a community site and NOT affiliated with the now defunct Toyota Marine Sports division of Toyota. As a community site, we depend on the integrity of it's members.

Download the entire Parts List in Excel format: Marine_Parts_List_2005.xls
