TMS Reference Figures - Boat

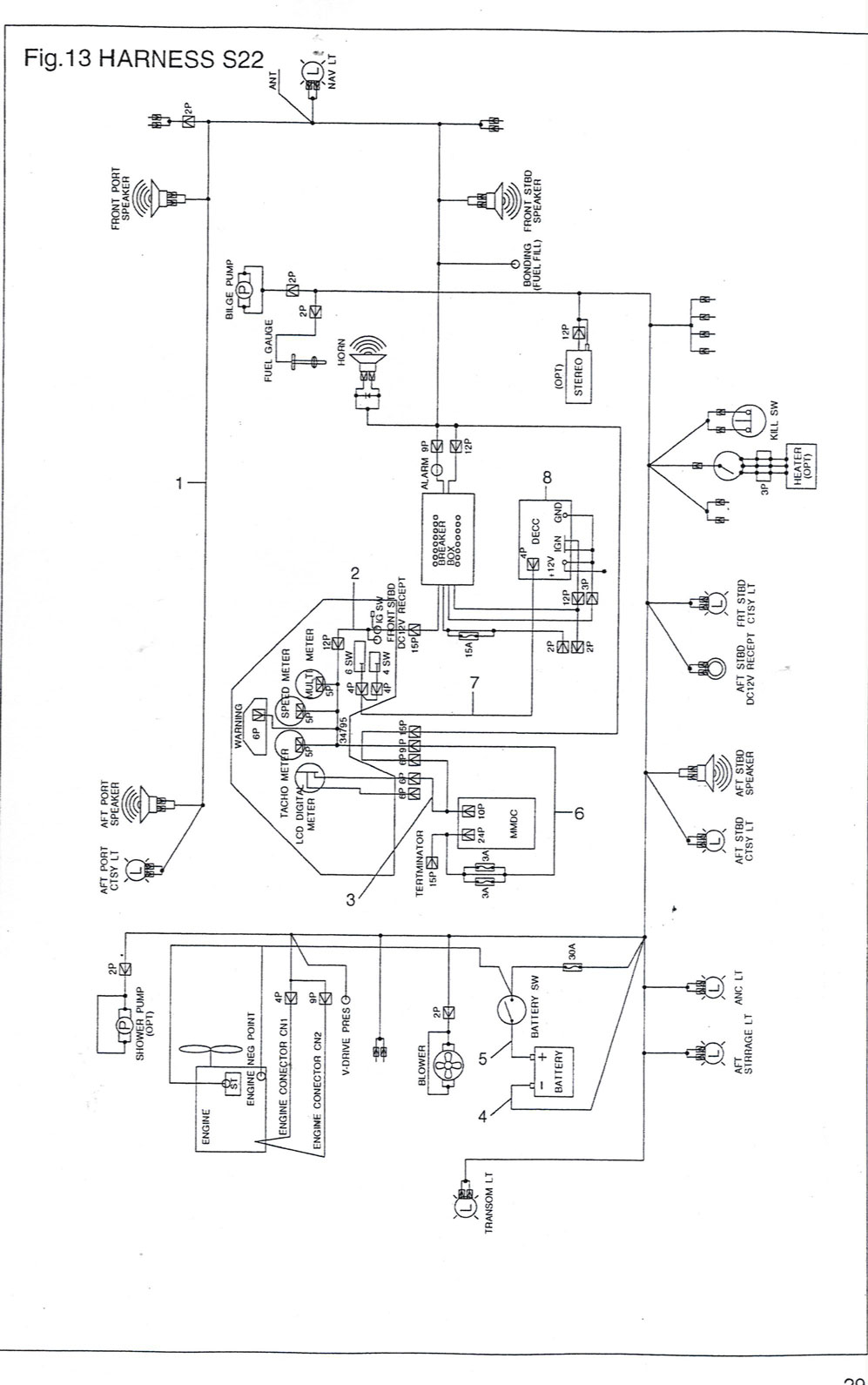

Figure 13

Print the larger version   |   Scroll down for parts list

Print the larger version   |   Right click to download all figures as .pdf (69 Megs)

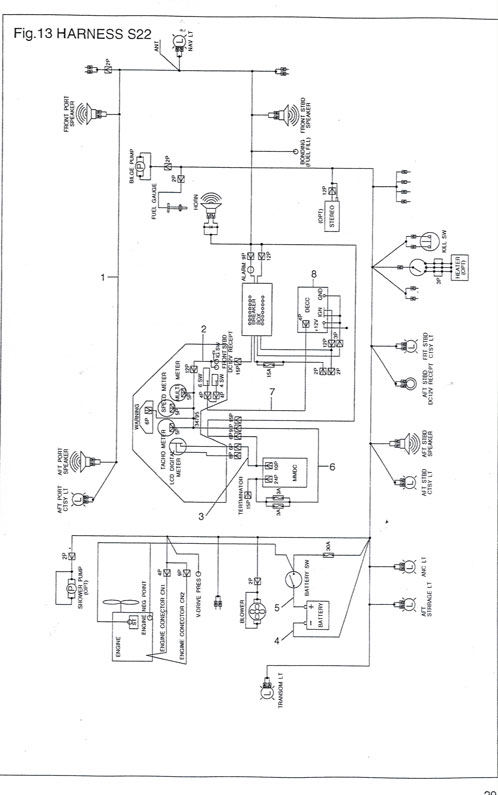

Figure 13


Part No.DescriptionFigureNumberOriginal PriceShipping*Purchase
MCW0011566Harness,MainWiring,'00S2213 455.31 15.00
MCW0011581Cable,Battery,Ground,S22,60",Black13
MCW0011582Cable,Battery,Positive,S22,24",Red13

* SHIPPING INFO: Most items ship next day after Paypal funds are secured. Shipping cost may vary depending on quantity of items purchased, weight and other variables. If additional shipping funds are required, Capt Rick will contact you. For more info email Capt Rick

DISCLAIMER: The seller of these parts is an authorized Toyota Parts Distributor using customer drop shipment. The site owners and administrators of epicmarine.com hold no liability for parts purchased through this site. This is a community site and NOT affiliated with the now defunct Toyota Marine Sports division of Toyota. As a community site, we depend on the integrity of it's members.

Download the entire Parts List in Excel format: Marine_Parts_List_2005.xls
