TMS Reference Figures - Boat

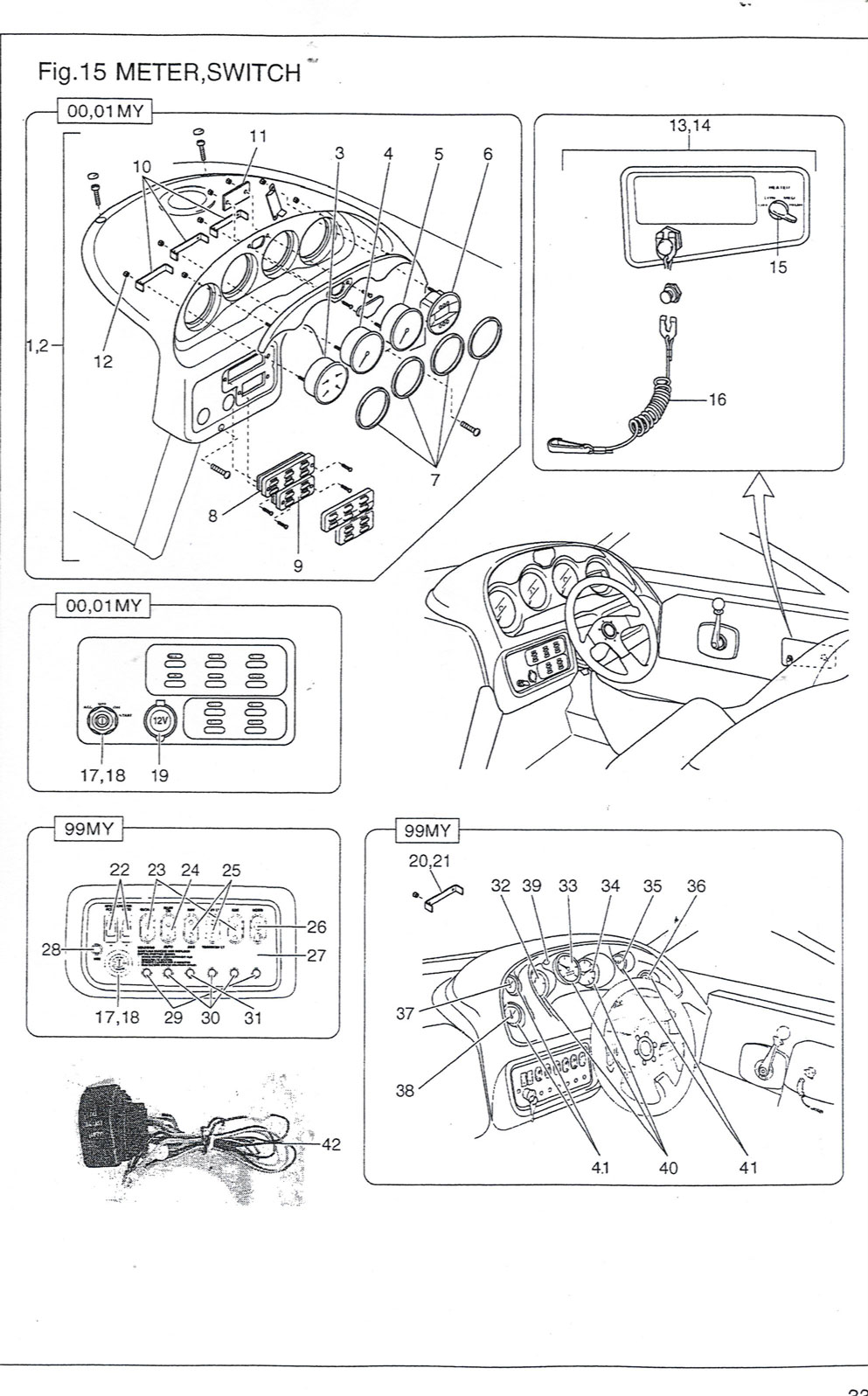

Figure 15

Print the larger version   |   Scroll down for parts list

Print the larger version   |   Right click to download all figures as .pdf (69 Megs)



Figure 15


Part No.DescriptionFigureNumberOriginal PriceShipping*Purchase
MDC0010892Switch,PhatSack,Fill,12v,Black,NonMellennium(NM)15 42 13.33 15.00
MDC0010953Switch,Ignition,w/Keys,4Position,12v,AllModels15 17 34.20 15.00
MDC001095310Nut,IgnitionSwitch,w/RubberInsert15 18 n/a
MDC0010954Switch,Dash,Speedo,12v,B,NonMellennium(NM)15 22 12.21 15.00
MDC0010955Switch,Dash,Blower,CtsyLights,12v,Black,NM15 23 22.15 15.00
MDC0010956Switch,Dash,BilgePump,12v,Black,NM15 24 26.27 15.00
MDC0010957Switch,Dash,Nav/CtsyLights,12v,Black,NM15 25 22.82 15.00
MDC0010958Switch,Dash,Horn,12v,Red,NM15 26 16.76 15.00
MDC0010959Switch,PhatSack,Empty,12v,Black,NM15 42 13.33 15.00
MDC0010960CircuitBreaker,5Amp,Dash,12v,NM15 30 10.00 15.00
MDC0010961CircuitBreaker,6Amp,Dash,12v,NM15 31 10.00 15.00
MDC0010962CircuitBreaker,10Amp,Dash,12v,NM15 29 10.00 15.00
MDC0010963CircuitBreaker,20Amp,Dash,12v,NM15 28 10.00 15.00
MDC0010969Switch,Heater,Rotary,4Position,ALLMY'sExcept0215 15 13.03 15.00
MDC0011280Switch,BallastFill&Empty,BallastSack,12v,B,NM15 42 24.09 15.00
MGA0010914Speedometer,Primary,EarlyDash,3",50MPH,Black15 34
MGA0010915Speedometer,Second,EarlyDash,3",50MPH,Black15 32 89.67 15.00
MGA0010916Tachometer,EarlyDash,3",6000RPM,w/HourMeter,Black15 33 126.28 15.00
MGA0010917Gauge,Fuel,EarlyDash,2"Face,Black15 37 55.78 15.00
MGA0010918Gauge,Volt,EarlyDash,2"Face,Black15 38 55.78 15.00
MGA0010919Gauge,OilPressure,EarlyDash,2"Face,Black15 36 55.78 15.00
MGA0010920Gauge,WaterTemp,EarlyDash,2"Face,Black15 35 55.78 15.00
MGA0010921Bezel,Gauge,2",Plastic,Black15 41 OUT OUT
MGA0010922Bezel,Gauge,3",Plastic,Black15 40 10.00 15.00
MGA0010923Bracket,Install,2"Gauge,Aluminum15 20 10.00 15.00
MGA0010924Bracket,Install,3"Gauge,Aluminum15 21 10.00 15.00
MGA0010936Light,CheckEngineWarning,w/Pigtail,99,00MY,12Volt15 39 19.88 15.00
MGA0011512MessageCenter,In-Dash,5",:LateDash,ToyotaName15 380.00 15.00
MGA001151201Bezel,Flat,MessageCenter,5",Black15 3.50 15.00
MGA001151301Bracket,Install,5"Instrument,MillenniumDash15 10 10.00 15.00
MGA0011516Gauge,5"Tachometer,6000RPM,LateModelDash15 144.44 15.00
MGA001151601Bezel,5",Domed,Tachometer,4in1Gauge,Speedo,Black15 out out
MGA0011517Gauge,5"Speedometer,60MPH,LateModelDash15 147.56 15.00
MGA0011519Gauge,4in1Module,Oil/WaterTemp/Volt/FuelLevel,LateModelDash15 239.28 15.00
MGA0011916SwitchPanel,6Button,00,01,02MY,TopPosition1To6,NotLabeled,w/Bezel15 82.42 15.00
MGA001191601Bezel,6ButtonSwitchPanel,NoLabels,Black15
MGA0011921SwitchPanel,4Button,00,01,Bottom#'s7-10,w/Lables,w/Jumper15 82.42 15.00
MGA001192101Bezel,4ButtonSwitchPanel,w/Labels,Black15 n/a
MHL0011266Dash,Complete,w/4Gauges&Harness,Woodgrain,6-4Button,MY00,01,AllModels15 2126.98 30.00
MHL0011267Dash,Complete,w/4Gauges&Harness,Carbon,6-4Button,MY00,01,AllModels15 2126.98 15.00
MHL0600045Assembly,CheckEngine/Drive,W/A15 11 162.47 15.00
MPD0010336Panel,KillSwitch,w/KillSwitchInstalled,NoLanyard,NoHeaterCutout15 13 82.19 15.00
MPD001033601LanyardOnly,ForKillSwitch,RedRubber15 16
MPD0010951Panel,DashSwitches&Breakers,Metal,99E21,E22,X2215 27 167.50 15.00
MPD0010952Panel,Kill&HeaterSwitchCutouts15 14 85.17 15.00
