TMS Reference Figures - Boat

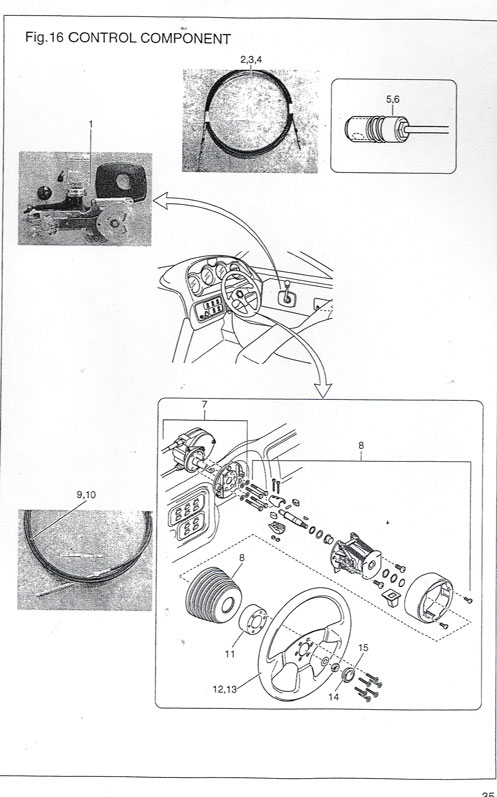

Figure 16

Print the larger version   |   Scroll down for parts list

Print the larger version   |   Right click to download all figures as .pdf (69 Megs)



Figure 16


Part No.DescriptionFigureNumberOriginal PriceShipping*Purchase
MCN0010320BallJoint,ForControlCable,10-3216 6.92 15.00
MCN0011547Cable,Throttle,20',S22,SX22,SS16 49.86 15.00
MCN0011580Wheel,Steering,Woodgrain16 12 257.92 15.00
MCNT000152Control,Engine,SideMount,Black16 194.44 15.00
MCNT000153Cable,ThrottleOrShiftUsage,17ft,SS16 45.69 15.00
MCNT000154Cable,Steering,18ft,SS16 10 107.08 15.00
MCNT000157Steering,RotaryType,CompleteAssembly16 196.53 15.00
MCNT000159Steering,TiltAssemblyUnit16 110.97 15.00
MCNT000160Wheel,Steering,Leather,Black16 13 76.39 15.00
MCNT000161Hub,SteeringWheel,Plastic,Black16 11 10.72 15.00
MCNT00016101CenterCapHub,SteeringWheel,Plastic,Black16 14 10.00 15.00
MCNT000162Cable,ThrottleOrShiftUsage,18ft,SS16 47.08 15.00
MCNT000513Cable,Steering,19ft,SS16 OUT OUT
MGRZ100321Decal,SteeringWheel,"EPIC"Logo,Black,w/White"Epic"16 15 6.25 15.00

* SHIPPING INFO: Most items ship next day after Paypal funds are secured. Shipping cost may vary depending on quantity of items purchased, weight and other variables. If additional shipping funds are required, Capt Rick will contact you. For more info email Capt Rick

DISCLAIMER: The seller of these parts is an authorized Toyota Parts Distributor using customer drop shipment. The site owners and administrators of epicmarine.com hold no liability for parts purchased through this site. This is a community site and NOT affiliated with the now defunct Toyota Marine Sports division of Toyota. As a community site, we depend on the integrity of it's members.

Download the entire Parts List in Excel format: Marine_Parts_List_2005.xls
