TMS Reference Figures - Boat

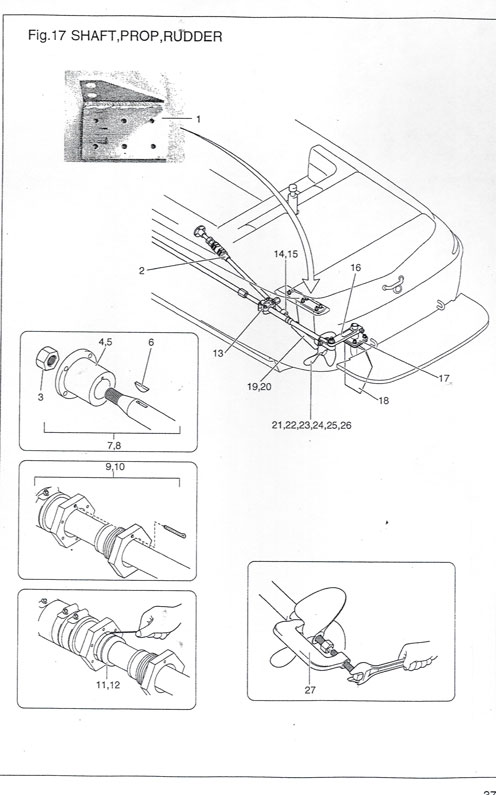

Figure 17

Print the larger version   |   Scroll down for parts list

Print the larger version   |   Right click to download all figures as .pdf (69 Megs)

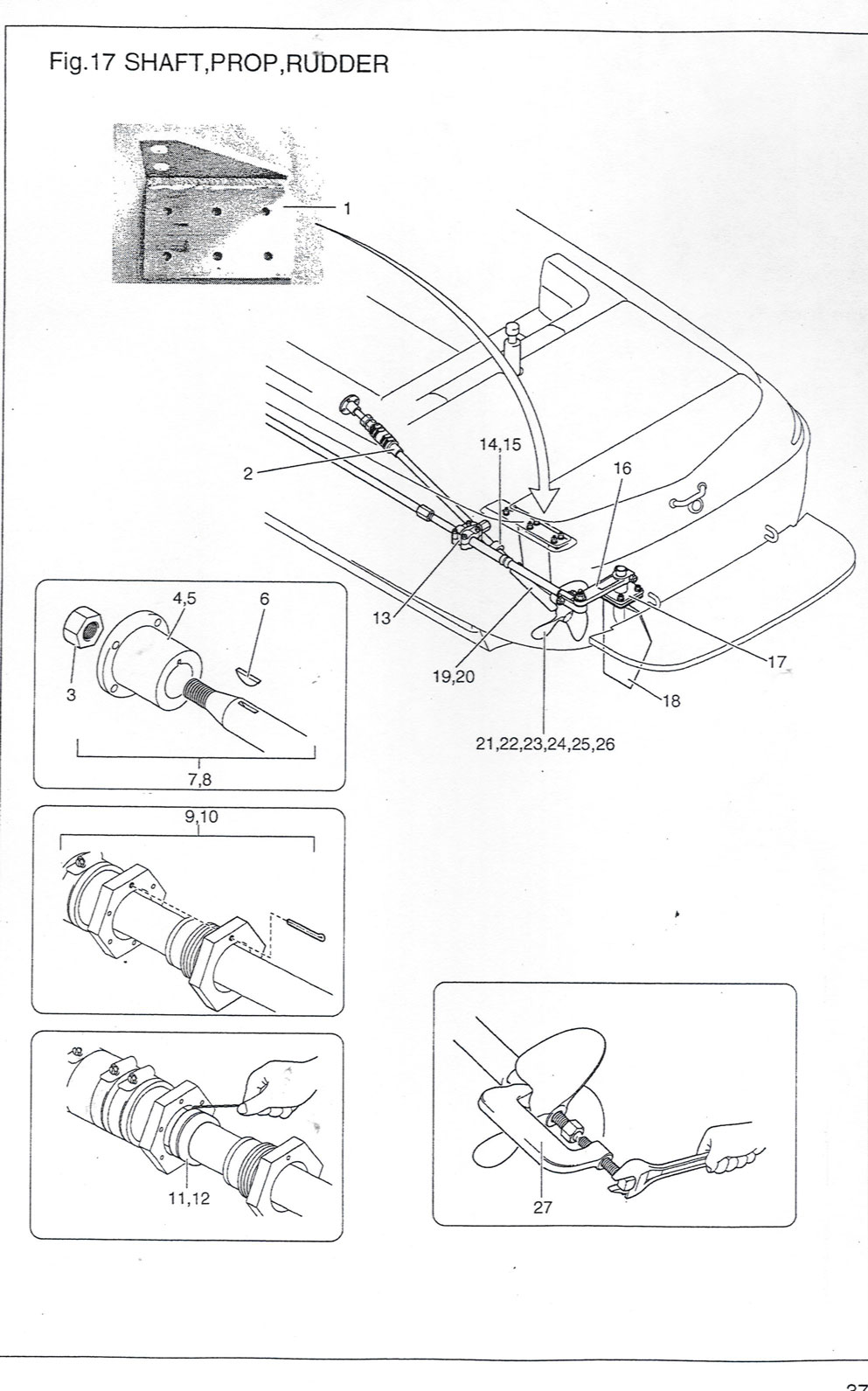

Figure 17


Part No.DescriptionFigureNumberOriginal PriceShipping*Purchase
MCN0010223Bracket,SteeringCable,Aluminum17 20.03 15.00
MCNT000155Clamp,SteeringBlock,Black,Aluminum17 13 OUT OUT
MHC0010015HoseClamp,#15,SS,Lined,1",Narrow,TSB5217 15 n/a
MHON00026801Hose,ShaftLog,1-3/4"x3-1/2",PreCut,Black,Wire17 14 OUT OUT
MSP0010123Propeller,13x13,RH,4Blade,1"Shaft,99E21,E22,X2217 22 302.04 30.00
MSP0010135ShaftLog,w/PackGland,1"Shaft,w/Packing,Plastic,White17 50.17 15.00
MSP001013501Packing,For1"ShaftLog,5/16"x3',Teflon17 12 13.00 15.00
MSP0010172Strut,PropellerShaft,For1"Shaft,w/BearingBronze17 19 154.22 30.00
MSP0010173RudderPort,w/BackingPlate,Bronze17 17 120.00 25.00
MSP0010175ShaftLogAdapter,For1-3/4"Hose,For1"Shaft,Aluminum17 16.03 15.00
MSP0010178Shaft,Propeller,1",w/4"Coupling,w/Nut&Key,Taper,SS17 292.72 30.00
MSP001017801CouplingFlange,For1"PropShaft,1"Shaftx4"Dia,Taper17 61.64 15.00
MSP001017803CouplingNut,1",1-1/8"PropShafts,3/4x16,Nyloc,ZinkPlated17
MSP001017805CouplingKey,For1"&1-1/8"PropShafts,1/4x1-3/4,SS17 13.17 15.00
MSP0010179TillerArm,ForRudder,Bronze17 16
MSP001018001CouplingFlange,For1-1/8"PropShaft,1-1/8"Shaftx3-1/2"Dia,Taper,SS17 n/a
MSP0010803Rudder,w/SSPost,18-3/4"x1-1/8"Shaft,Bronze17 18 202.78 35.00
MSP0010872vdrive ShaftLog,w/PackingGland,1-1/8"Shaft,w/Packing,Plastic,White17 11 94.00 15.00
MSP001087201Packing,For1-1/8"ShaftLog,1/4"x3',Teflon vdrive17 12 11.28 15.00
MSP0010996Propeller,13x13,RH,3Blade,1"Shaft,For99MYOnly17 21 259.18 30.00
MSP0011019Propeller,13x13,LH,4-Blade,1"Shaft,E21,E22,X2217 24 411.11 30.00
MSP0011163Propeller,13x13,LH,3-Blade,1"Shaft,E21,E22,X2217 23 259.18 30.00
MSP0011188Shaft,Propeller,50"x1-1/8",w/3-1/2"Coupling,w/Key&Nut,Taper,SS17 359.08 35.00
MSP0011189Strut,PropellerShaft,For1-1/8"Shaft,Bronze17 20 256.89 35.00
MSP0011589Propeller,13x13LH,3Blade,1-1/8"Shaft,ForS22w/NoTower17 25 352.78 30.00
MSP0011670Propeller,13x13.5,LH,4Blade,1-1/8"Shaft,CutterStainless,SX2217 26 472.22 30.00
MTO0010641Puller,Propeller17 27 n/a

* SHIPPING INFO: Most items ship next day after Paypal funds are secured. Shipping cost may vary depending on quantity of items purchased, weight and other variables. If additional shipping funds are required, Capt Rick will contact you. For more info email Capt Rick

DISCLAIMER: The seller of these parts is an authorized Toyota Parts Distributor using customer drop shipment. The site owners and administrators of epicmarine.com hold no liability for parts purchased through this site. This is a community site and NOT affiliated with the now defunct Toyota Marine Sports division of Toyota. As a community site, we depend on the integrity of it's members.

Download the entire Parts List in Excel format: Marine_Parts_List_2005.xls
