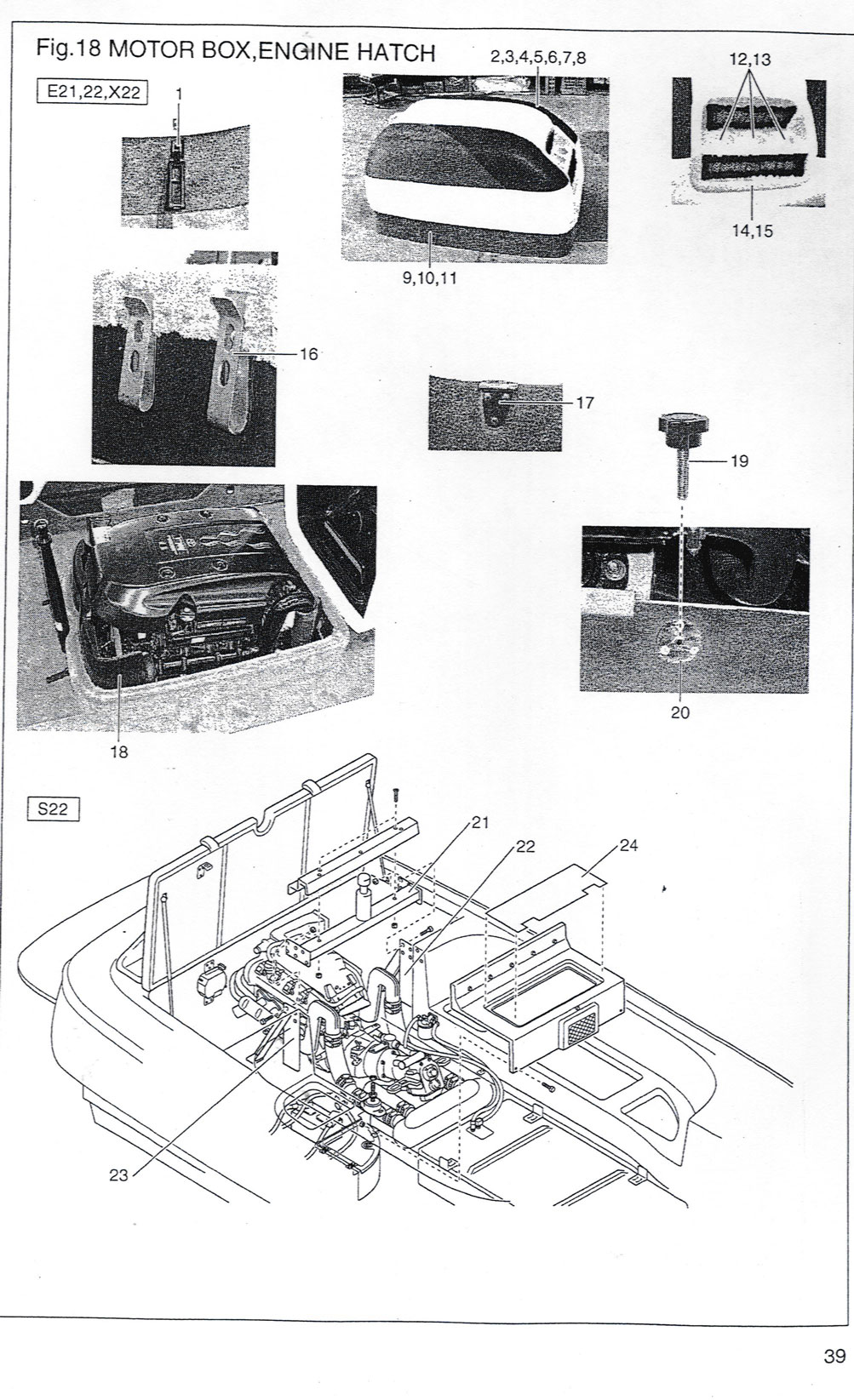

Figure 18

Print the larger version   |   Scroll down for parts list

Print the larger version   |   Right click to download all figures as .pdf (69 Megs)



Figure 18


Part No.DescriptionFigureNumberOriginal PriceShipping*Purchase
MAH0010504Hinge,MotorBox,StrapType,6",SS18 17 10.00 15.00
MAH0010523Latch,MotorBoxHoldDown,Plastic,Black18 18.00 15.00
MAH0011569Frame,SkiPylonTop,S22,SX22,Aluminum18 21 122.00 30.00
MAH0011591Frame,Support,SkiPylon,Port,S22,SX22,Aluminum18 22 123.00 30.00
MAH0011592Frame,Support,SkiPylon,Stbd,S22,SX22,Aluminum18 23 123.00 15.00
MDHV000203Receiver,1-3/4"Dia,ForThumbScrew,w/nutChrome,1/4x20x118 20 10.00 15.00
MDHV000543Clip,EngineBeltShield,4"18 16
MDHY600312ThumbScrew,1/4x20x1-1/4",PlasticHead18 19
MEN0010507Cover,EngineBelts,Plastic,Black18 18 60.00 15.00
MFD0010496DrinkHolder,Assembly,RearMotorBox,ABS,Black18 14 75.97 25.00
MFD0010858DrinkHolder,AssemblyRearMotorBox,ABS,White18 15 75.97 25.00
MMC0010867Lid,AftSeat,S22,SX22,13"x27-3/4",Plastic,Black18 24
MUP001134309MotorBox,00Surf,Upholstered,E21,E2218 3,6 OUT OUT
MUP109000109MotorBox,CompleteUpholstered,Sand,99,00,01E21,E2218 n/a
MUP109000309MotorBox,CompleteUpholstered,Ivory,99E21,E2218 n/a
MUP4000151Base,MotorBox,Rotocast,NoCarpet,E21,E22,X2218 9,10,11 235.25 125.00
