TMS Reference Figures - Boat

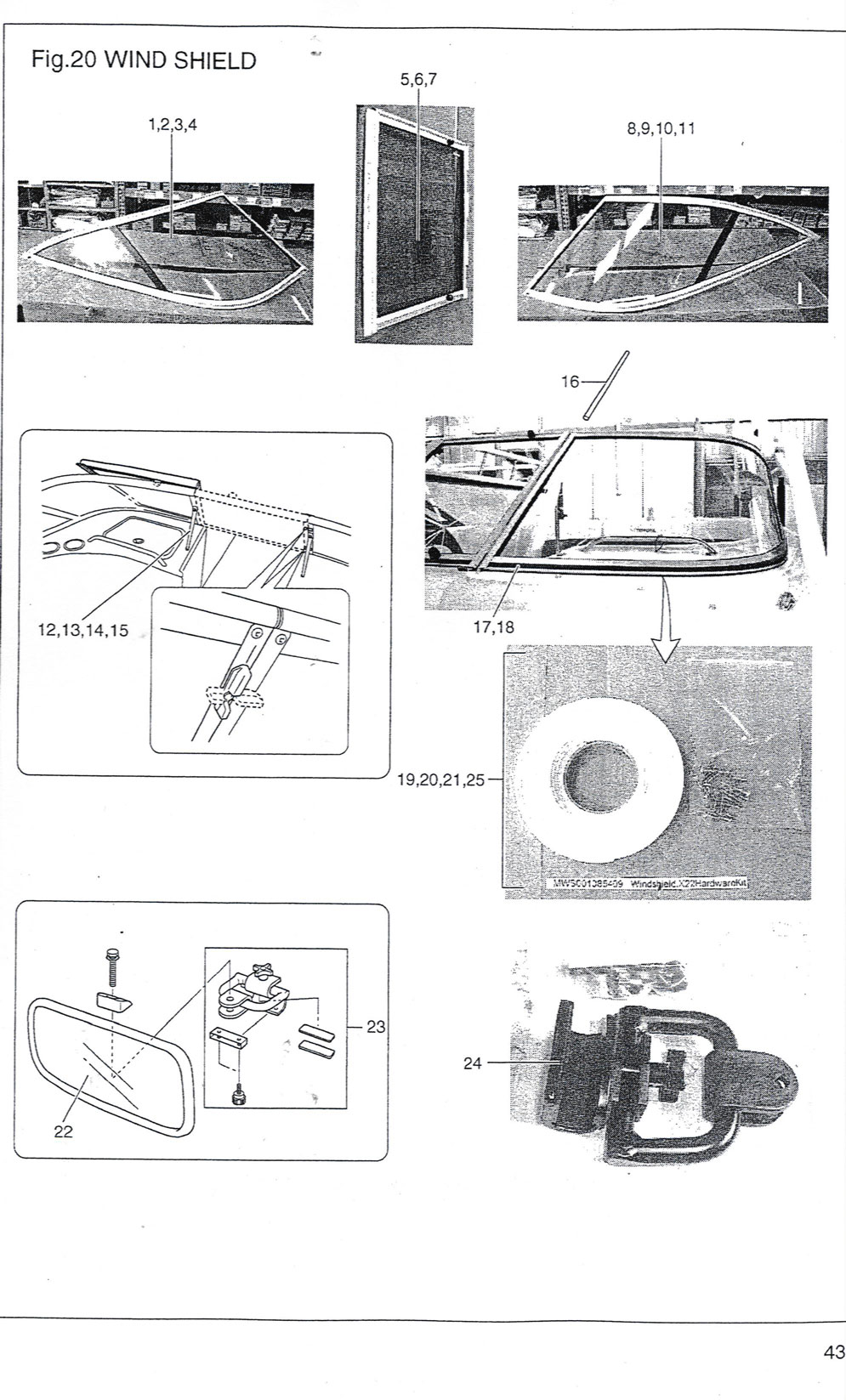

Figure 20

Print the larger version   |   Scroll down for parts list

Print the larger version   |   Right click to download all figures as .pdf (69 Megs)



Figure 20


Part No.DescriptionFigureNumberOriginal PriceShipping*Purchase
MWS0010112Mirror,RearView,Plastic,Black20 22 47.11 15.00
MWS0010495Bracket,Mirror,TypeWaterBonnet,Alum,Black20 24 59.72 15.00
MWS0010654Bracket,Mirror,TypeTaylor,Alum,Black20 23 72.97 15.00
MWS001066001Windshield,StbdWing,E21,Black20
MWS001066002Windshield,PortWing,w/Hinge,E21,Black20 10
MWS001066003Windshield,Door,E21Only,Black20
MWS001066004Windshield,TrimStrip,AllModels,16",Black20 17,18 13.33 15.00
MWS001066006Windshield,DoorHingePin,AllModels20 16 12.39 15.00
MWS001066007Windshield,DoorBumper,w/Screw,E21,E22,Black20  14.00 15.00
MWS001066008Windshield,DoorLatch,w/Rivet,E21,E22,Black20
MWS001066010Windshield,PortWingHinge,E21,E22,Black20  97.64 15.00
MWS001066011Windshield,DoorHinge,E21,E22,Black20
MWS001066012Windshield,InstallKit,AllExceptX22,BlackWeatherstrip,2Sil&2BkScrews20 25 72.97 15.00
MWS001085401Windshield,StbdWing,X22,White20 327.58 165.00
MWS001085402Windshield,PortWing,w/Hinge,X22,White20 11 329.97 165.00
MWS001085403Windshield,Door,X22Only,White20 128.33 15.00
MWS001085405Windshield,PortWingHinge,X22,White20  97.64 165.00
MWS001085406Windshield,DoorHinge,X22,White20  97.64 15.00
MWS001085407Windshield,DoorLatchw/Rivet,X22,White20  OUT OUT
MWS001085408Windshield,InstallKit,X22,WhiteWeatherStrip,2WhiteScrews20 19 59.75 15.00
MWS001111601Windshield,StbdWing,S22,SX22,Silver20 324.36 165.00
MWS001111602Windshield,PortWing,w/Hinge,S22,SX22,Silver20 324.36 165.00
MWS001117401Windshield,StbdWing,E22,Silver20 312.83 165.00
MWS001117402Windshield,PortWingW/Hinge,E22,Silver20 315.61 165.00
MWS001117403Windshield,Door,E22,S22,SX22,Silver20 126.56 15.00
MWS001117405Windshield,PortWingHinge,E22,S22,SX22,Silver20  97.64 15.00
MWS001117406Windshield,Door,w/Hinge,E22,S22,SX22,Silver20  97.64 15.00
MWS0011614Stanchion,Windshield,10",E21,Black,SS20 12 26.39 15.00
MWS0011615Stanchion,Windshield,10-3/4",X22,White,SS20 13 26.39 15.00
MWS0011616Stanchion,Windshield,10-3/4",E22,Silver,SS20 14 18.75 15.00
MWS0011619Stanchion,Windshield,10",S22,SX22,Silver,SS20 15 26.39 15.00
MWS0011620Stanchion,Windshield,EarlyStyle,Aluminum,NoColor20  23.75 15.00
MWS412200101Windshield,Door,E22Only,Black-WiderDoor20  160.50 35.00

* SHIPPING INFO: Most items ship next day after Paypal funds are secured. Shipping cost may vary depending on quantity of items purchased, weight and other variables. If additional shipping funds are required, Capt Rick will contact you. For more info email Capt Rick

DISCLAIMER: The seller of these parts is an authorized Toyota Parts Distributor using customer drop shipment. The site owners and administrators of epicmarine.com hold no liability for parts purchased through this site. This is a community site and NOT affiliated with the now defunct Toyota Marine Sports division of Toyota. As a community site, we depend on the integrity of it's members.

Download the entire Parts List in Excel format: Marine_Parts_List_2005.xls
