TMS Reference Figures - Boat

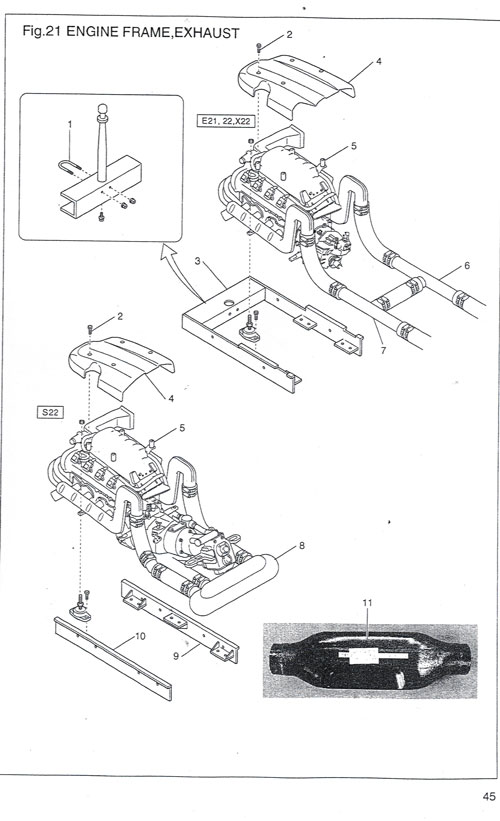

Figure 21

Print the larger version   |   Scroll down for parts list

Print the larger version   |   Right click to download all figures as .pdf (69 Megs)

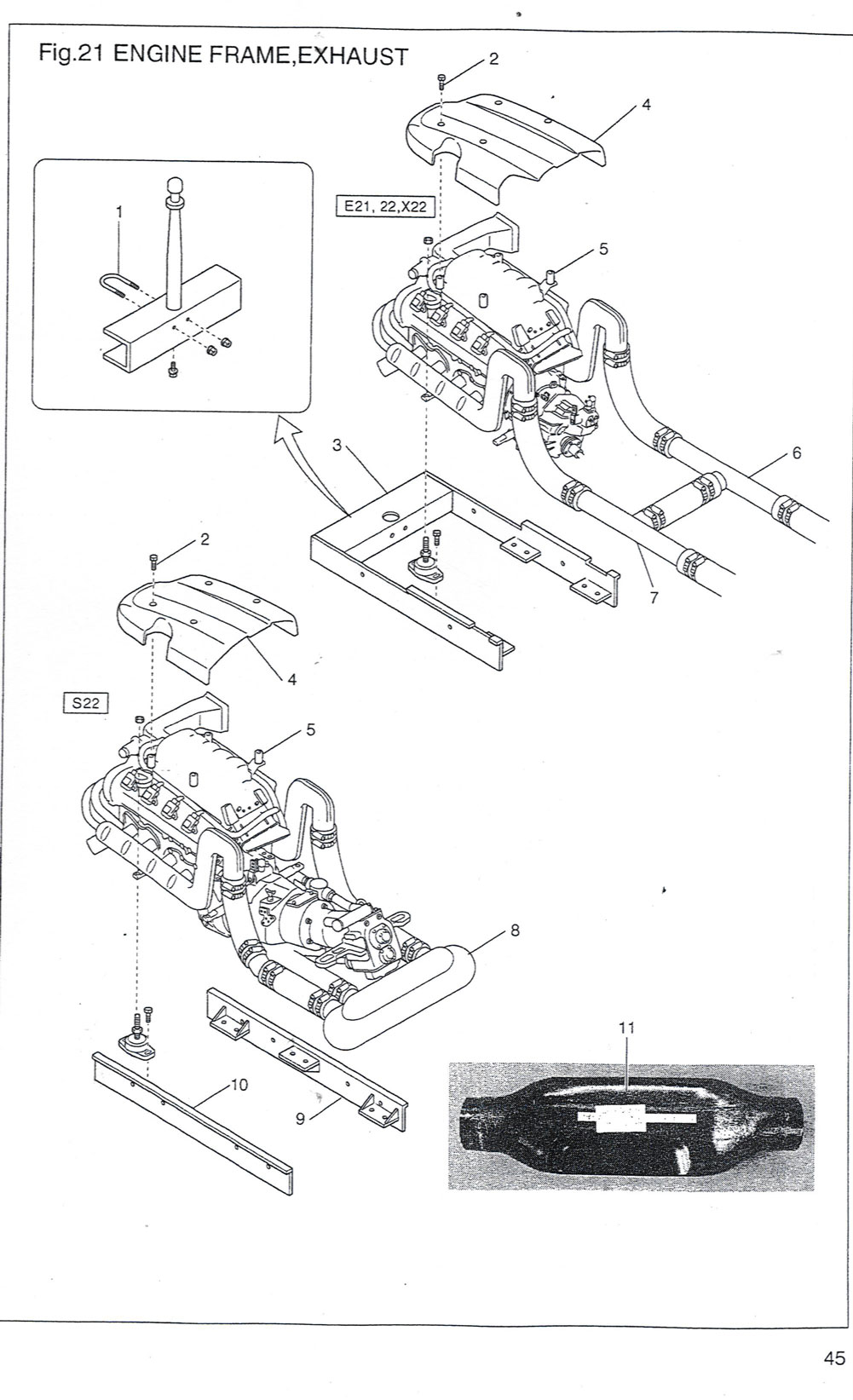

Figure 21

Part No.DescriptionFigureNumberOriginal PriceShipping*Purchase
MAH0011567Frame,EngineBed,Port,S22,SX22,Aluminum21 n/a
MAH0011568Frame,EngineBed,Stbd,S22,SX22,Aluminum21 10 n/a
MAHV000222Frame,EngineBed,Complete,E21,E22,X22,Aluminum21 n/a
MEN0010293Cover, Engine,E21,E22,X22, Plastic, Black, NoDecal21 200.94 15.00
MEN0010317ThumbScrew,EngineCover,SS,BlackPlasticHead21 10.00 15.00
MEN0010537StandOffs,EngineCover,AllModels,Set4,SS21 31.53 15.00
MEX0011498Muffler,Exhaust,TwinIntake,S22,SX2221 332.64 30.00
MEX0011543Pipe,ExhaustSystem,OvalShaped,S22,SX22,FRP,B21 11 240.89 30.00
MEXM000124Muffler,Exhaust,3"Inlet/Outlet,FRP,Port,Black21 170.08 15.00
MEXM000125Muffler,Exhaust,3"Inlet/Outlet,FRP,Stbd,Black21 170.08 15.00
MHO001080003Hose,Exhaust,3"x4",S,SX22,PreCut,Black,Wire21  n/a
MHO001080004Hose,Exhaust,3"x22",PreCut,Black,Wire21  n/a
MHO001155701Hose,Exhaust,4"x34",S22,SX22,PreCut,Black21  n/a
MHO001155702Hose,Exhaust,4"x17",S22,SX22,PreCut,Black21  n/a
MHON00024101Hose,Exhaust,3"x16",CrossOver,PreCut,Black,Wire21  39.00 15.00
MHON00024103Hose,Exhaust,3"x25",MuffToStern,PreCut,Black,Wire21  n/a

* SHIPPING INFO: Most items ship next day after Paypal funds are secured. Shipping cost may vary depending on quantity of items purchased, weight and other variables. If additional shipping funds are required, Capt Rick will contact you. For more info email Capt Rick

DISCLAIMER: The seller of these parts is an authorized Toyota Parts Distributor using customer drop shipment. The site owners and administrators of hold no liability for parts purchased through this site. This is a community site and NOT affiliated with the now defunct Toyota Marine Sports division of Toyota. As a community site, we depend on the integrity of it's members.

Download the entire Parts List in Excel format: Marine_Parts_List_2005.xls
