TMS Reference Figures - Boat

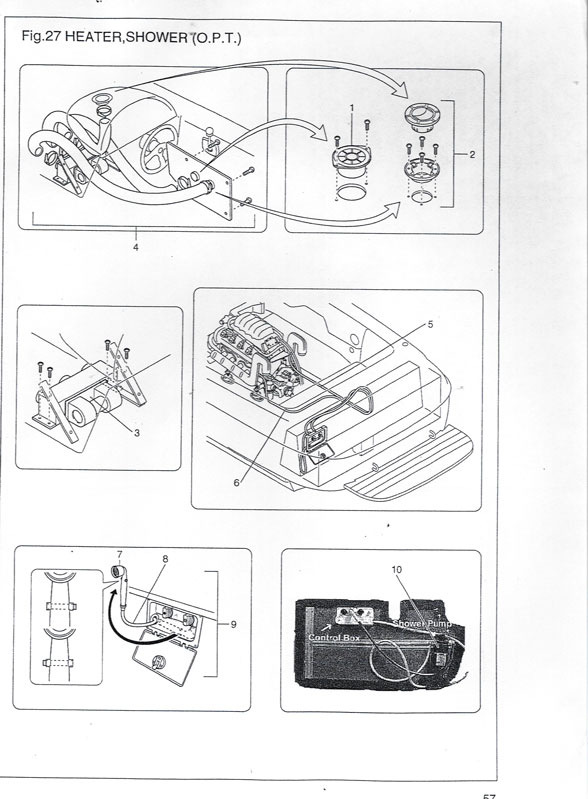

Figure 27

Print the larger version   |   Scroll down for parts list

Print the larger version   |   Right click to download all figures as .pdf (69 Megs)



Figure 27


Part No.DescriptionFigureNumberOriginal PriceShipping*Purchase
MHE0010500Kit,'02,Heater,HotWater,NoRota27 600.00 60.00
MHE001050001Bracket,Mounting,Heater27
MHE001050002Louver,Heater,w/ShutOff,B27
MHE001050003Tube,Heater,Hot,Plastic,B27
MHE001050004HeaterUnit,HotAirHeaterSystem27
MHO001050105Hose,Shower,Cold,w/Valve,12"27
MHO001050106Hose,Shower,Hot,w/Valve,12"27
MHO001050107Hose,ShowerPump,w/QuickRelease,12"27
MHO001050108Hose,ShowerHead,w/QuickRelease,9"27
MHO001050109Hose,3Hose,ShowerHead,w/QuickRelease,9"27
MPL0011491Shower,HotWater,CompleteSystem,00,01,02MY27 319.46 35.00
MPL001149101TemperatureControl,Shower,Box,00,01,02MY27
MPL001149102SprayHead,Shower,00,01,02MY27 40.00 22.00
MPL001149103Hose,ShowerSprayHead,10',w/1/2"Fitting,00,01,02MY27

* SHIPPING INFO: Most items ship next day after Paypal funds are secured. Shipping cost may vary depending on quantity of items purchased, weight and other variables. If additional shipping funds are required, Capt Rick will contact you. For more info email Capt Rick

DISCLAIMER: The seller of these parts is an authorized Toyota Parts Distributor using customer drop shipment. The site owners and administrators of epicmarine.com hold no liability for parts purchased through this site. This is a community site and NOT affiliated with the now defunct Toyota Marine Sports division of Toyota. As a community site, we depend on the integrity of it's members.

Download the entire Parts List in Excel format: Marine_Parts_List_2005.xls
