TMS Reference Figures - Boat

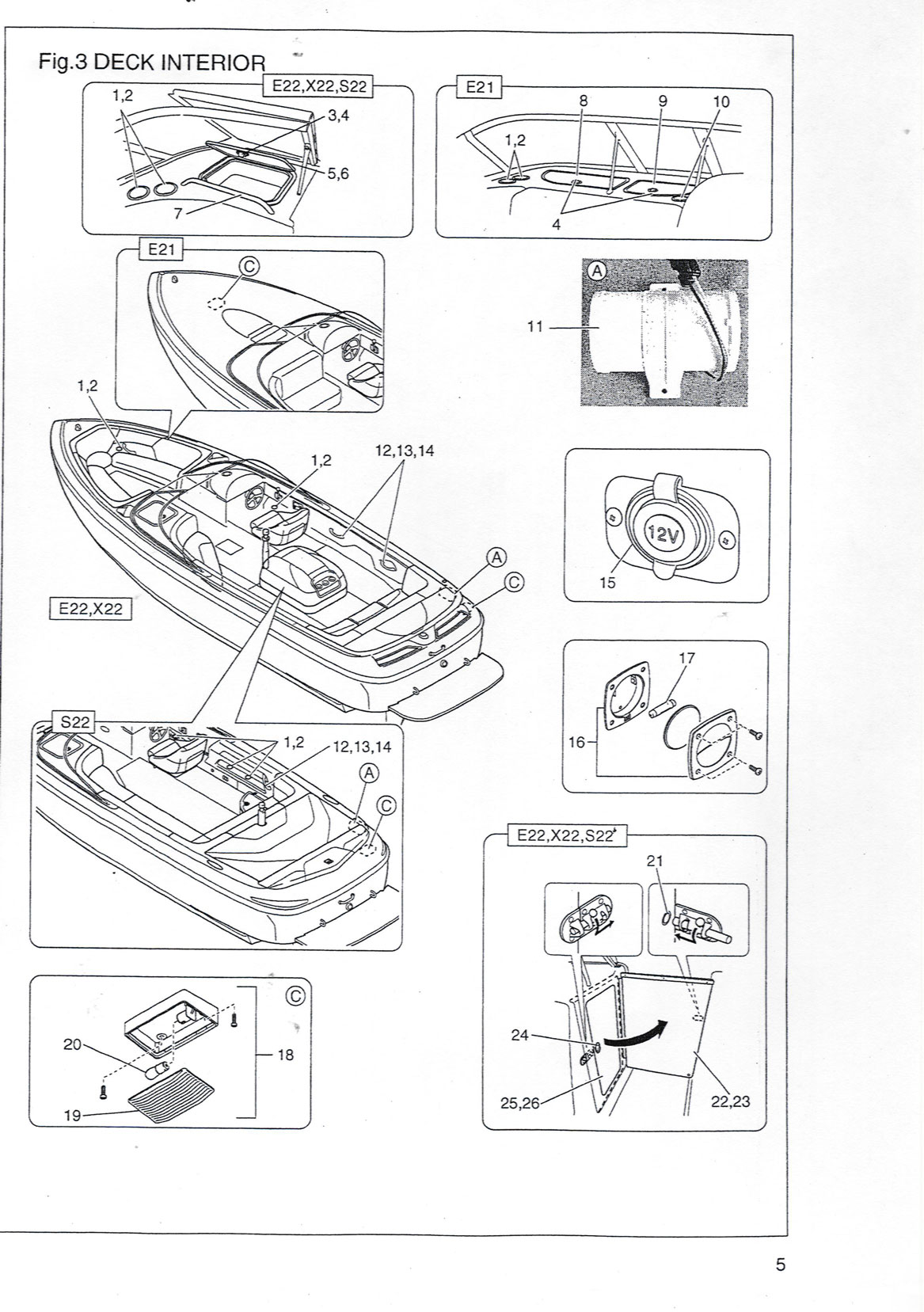

Figure 3

Print the larger version   |   Scroll down for parts list

Print the larger version   |   Right click to download all figures as .pdf (69 Megs)



Figure 3


Part No.DescriptionFigureNumberOriginal PriceShipping*Purchase
MAH0011122Latch,Pull,WalkThruStorageDoor,WhiteColor24 23.61 15.00
MAH0011487Latch,Locking,w/Keys&Screws,Black23.76 15.00
MAH0011929Latch,Locking,w/Keys,Plate&Screws,StainlessSteelOUT OUT
MAH0011932Latch,Locking,w/Keys,Plate&Screws,WheatColor31.97 15.00
MAH0011933Latch,Pull,WalkThruStorageDoor,WheatColor24
MCA0010534Door,OuterWalkThruStorage,E22,X22,White22
MCA0010535Door,OuterWalkThruStorage,E22,X22,S22,SX22,Ivory/Wheat23
MCA0010645Lid,Icebox,NoSpringStop,E21,Black
MCA0010646Door,WalkThruStorage,E22,X22,White25 170.53 15.00
MCA0010647Door,WalkThruStorage,E22,S22,S22,SX22,Ivory/Wheat26 170.53 15.00
MCA0011160Bushing,WalkThruDoorLatch,Plastic,White21 10.00 15.00
MCA0011273Lid,GloveBox,NoLidStop,E21,Black172.94 15.00
MCA0011274Lid,GloveBox,NoLidStop,E22,Black
MCA0011275Lid,GloveBox,NoLidStop,X22,White164.53 15.00
MDC001127901Receptacle,12Volt,FacePlateOnly15 n/a
MFD0010472DrinkHolder,3"E21,ABS,Black10 10.00 15.00
MLI0010312Light,Locker,ClearLens,12v,White18
MLI001031201Light,Locker,ReplacementClearLensOnly19 n/a
MLI001049101Bulb,Replace,SideCoamLightClear20 15.06 15.00
MLI0011346Light,SideCoaming,FrostLens,12 16 25.17 15.00
MLI001134601Bulb,Replacement,SideCoamingLightFrosted17 OUT OUT
MRA0010102Handle,Grab,Dash,18",2-1/2"Studs,StainlessSteel23.08 15.00
MRA0011320Handle,Grab,SideCoaming,Plastic,White12
MRA0011321Handle,Grab,SideCoaming,Plastic,Sand13 17.92 15.00
MRA0011322Handle,Grab,SideCoaming,Plastic,Surf14 17.92 15.00
MVA0011945Blower,Bilge,3",12V,Rule,NoConnector11 42.22 15.00

* SHIPPING INFO: Most items ship next day after Paypal funds are secured. Shipping cost may vary depending on quantity of items purchased, weight and other variables. If additional shipping funds are required, Capt Rick will contact you. For more info email Capt Rick

DISCLAIMER: The seller of these parts is an authorized Toyota Parts Distributor using customer drop shipment. The site owners and administrators of epicmarine.com hold no liability for parts purchased through this site. This is a community site and NOT affiliated with the now defunct Toyota Marine Sports division of Toyota. As a community site, we depend on the integrity of it's members.

Download the entire Parts List in Excel format: Marine_Parts_List_2005.xls
