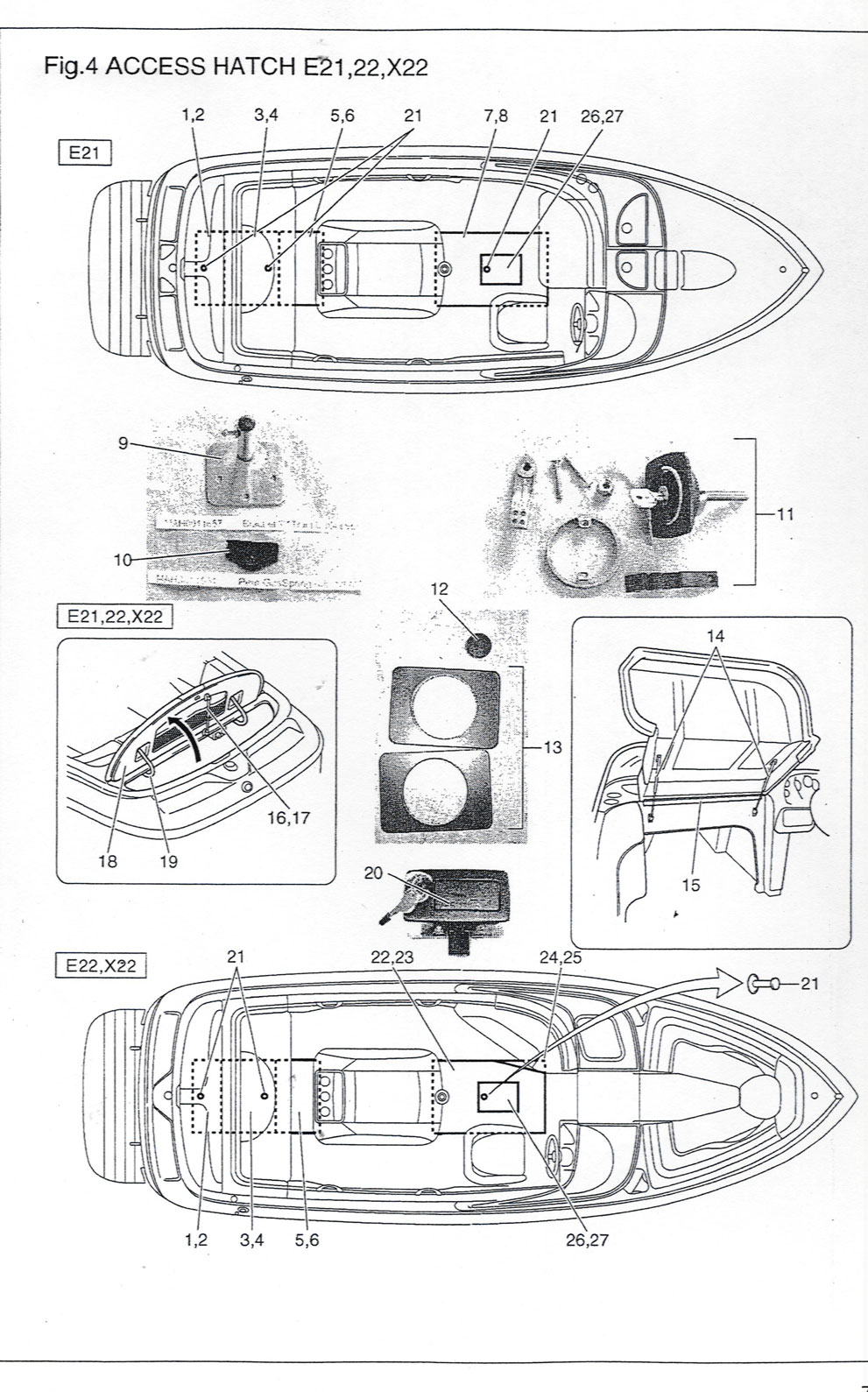

Figure 4

Print the larger version   |   Scroll down for parts list

Print the larger version   |   Right click to download all figures as .pdf (69 Megs)



Figure 4


Part No.DescriptionFigureNumberOriginal PriceShipping*Purchase
MAH0010119Pull,FloorHatch,RoundHead,StainlessSteel21 10.00 15.00
MAH0010146GasSpring,ObsSeat,E21,17",80lb14 16.00 15.00
MAH0010217Hatch,Floor,E21,E22,X22,15"x27-1/2",BehindTrans,Alum5,6 124.00 15.00
MAH0010218Hatch,Center,E21,E22,X22,15"x27-1/2",w/FuelHoseCutOut,Alum3,4 n/a
MAH0010219Hatch,Trunk,E21,E22,X22,13-3/4"x27",RudderAccess,Alum1,2 32.00 15.00
MAH0010343Hinge,ObserversSeat,32",SS,Black15 14.00 15.00
MAH0010473GasSpring,TrunkLid,TwinType,E21&22,15",10lb,Alum,Black16
MAH0011124Latch,TrunkLid,TwistType,w/Lock,00MY,Plastic,Black11 35.72 15.00
MAH0011271Hinge,TrunkLid,SingleType,E21,E22,X2219
MAH0011272GasSpring,TrunkLid,SingleType,E21&22s,15",30lb,Alum,Black17
MAH0011313Latch,TrunkLid,Locking,SlamType,w/Key,PlasticBlack20
MAH0011349Plug,TrunkLidBackingPlate,99MYRetroKit12
MAH0011551Pem,GasSpring,AllTrunkLids,ObsSeat,w/Bracket,SS,Black10 10.00 15.00
MAH0011657Bracket,TrunkLidGasSpring,SingleType,E21,E22,X2218.61 15.00
MAH0011745Hatch,Floor,Triangle,E22,X22,23"x9"x22",Aluminum24,25 74.00 15.00
MAHV000211HatchFloor,BatteryBox,E21,Aluminum7,8 42.00 10.00
MAHV000212Lid,BatteryBox,E21,E22,X22,Aluminum26,27 32.00 10.00
MAHV000528Hatch,Floor,BatteryBox,E22,X22,Aluminum22,23 n/a
MMP0010009Cover,TrunkLid,Underside,Plastic,Black18 79.03 35.00
