TMS Reference Figures - Boat

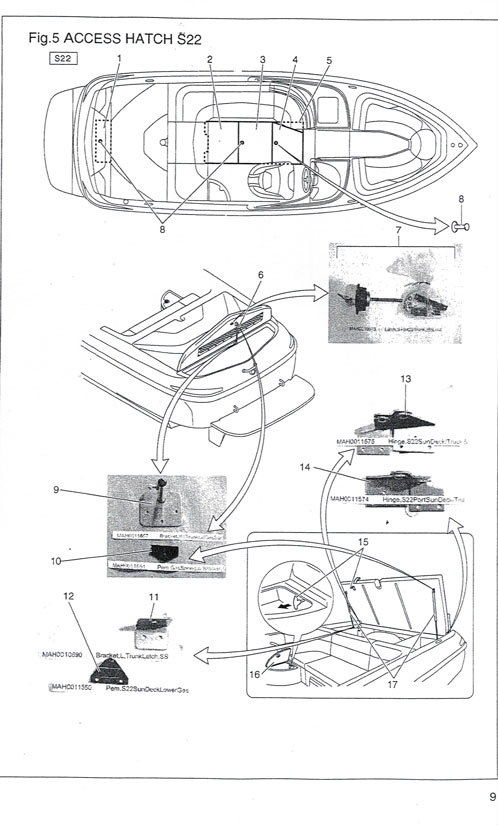

Figure 5

Print the larger version   |   Scroll down for parts list

Print the larger version   |   Right click to download all figures as .pdf (69 Megs)



Figure 5


Part No.DescriptionFigureNumberOriginal PriceShipping*Purchase
MAH0010868Cable,SunDeckRelease,w/Nut,S22,SX2215
MAH001086801Bracket,Mounting,SunDeckHatchRelease,S22,SX2215
MAH001086802Bracet,Striker,SunDeckHatchRelease,S22,SX2215
MAH001086804Handle,T,SunDeckHatchRelease,S22,SX2215
MAH001086805Nut,SunDeckHatchReleaseCable,1/2-20,Zinc,S22,SX2215
MAH001086806Nut,SunDeckHatchReleaseCable,1/2-20,Black,S22,SX2215
MAH001086807Nut,SunDeckHatchReleaseCable,3/8-24,Zinc,S22,SX2215
MAH001086808Nut,SunDeckHatchReleaseCable,3/8-24,Black,S22,SX2215
MAH0010873Latch,TrunkLid,w/Lock/Keys,S22,SX22,Plastic,Black27.42 15.00
MAH0010890Bracket,"L",TrunkBulkheadHoldIn,1-1/2",Aluminum11
MAH0011548GasSpring,SunDeck,S22,SX22,26",40lb,Alum,Black17 16.53 15.00
MAH0011549GasSpring,TrunkLid,Single Type,S22,SX22,15",45lb,Alum,Black
MAH0011550Pem,SunDeck,LowerGasSpring,S22,SX22,Black12 10.00 15.00
MAH0011570Hatch,Trunk,S22/SX22,9"x27",RudderAccess,Alumn/a
MAH0011571Hatch,Floor,S22,SX22,27"x30"-1/2"BilgePumpAccess,Alumn/a
MAH0011572Hatch,Floor,S22,SX22,27"x46",FuelTankMiddle,Alumn/a
MAH0011573Hatch,Floor,S22,SX22,11-1/2"x30-1/2"x32",WingTriangle,Alum92.00 15.00
MAH0011574Hinge,SunDeck/Trunk,Port,S22,SX22,SS14 61.53 15.00
MAH0011575Hinge,SunDeck/Trunk,Stbd,S22,SX22,SS13 61.53 15.00
MAH0011635Hatch,Floor,27"x46",S22,SX22,FuelTankAft,Alumn/a
MCA0010866Lid,StbdStep,w/GraySanoPad,w/Latch,S22,SX22,White16
MCA001086601Pad,StbdStorageStep,Sano,S22/SX22Gray16 OUT OUT
MCA0011851Lid,StbdStep,w/TanSanoPad,w/StainlessLatch,S22,Ivory/Wheat16 169.78 15.00
MCA001185101Pad,StbdStorageStep,Sano,S22/SX22,Tan16 OUT OUT
MCA0011909Lid,StbdStep,w/TanSanoPad,w/Latch,S22,SX22,White16

* SHIPPING INFO: Most items ship next day after Paypal funds are secured. Shipping cost may vary depending on quantity of items purchased, weight and other variables. If additional shipping funds are required, Capt Rick will contact you. For more info email Capt Rick

DISCLAIMER: The seller of these parts is an authorized Toyota Parts Distributor using customer drop shipment. The site owners and administrators of epicmarine.com hold no liability for parts purchased through this site. This is a community site and NOT affiliated with the now defunct Toyota Marine Sports division of Toyota. As a community site, we depend on the integrity of it's members.

Download the entire Parts List in Excel format: Marine_Parts_List_2005.xls
