TMS Reference Figures - Boat

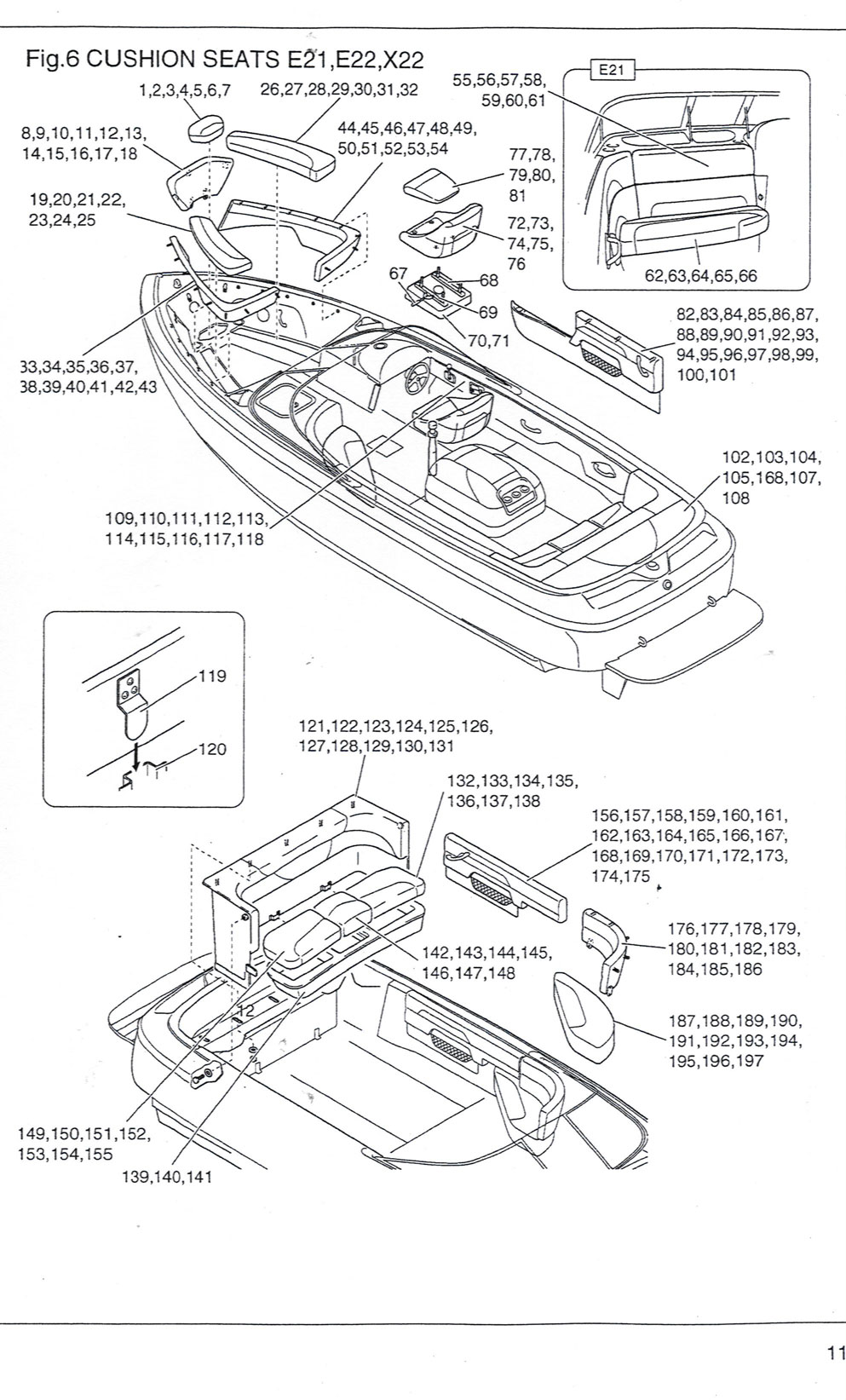

Figure 6

Print the larger version   |   Scroll down for parts list

Print the larger version   |   Right click to download all figures as .pdf (69 Megs)



Figure 6


Part No.DescriptionFigureNumberOriginal PriceShipping*Purchase
MDHV000344Clip,AftSeatBase,DirectDrives,Female120
MDHV000541Clip,AftSeatBase,DirectDrives,Male119
MMP0010292Cover,HelmSeatBase,E21,Plastic,Black70 23.61 15.00
MMP0010643Cover,HelmSeatBase,E22,X22,S22,SX22,Plastic,Black71,12 34.72 15.00
MUP000110SlideKit,DriversSeat,2Tracks/Lever/Washers,AllModels,Alum,B67,68,69 n/a
MUP001134212Seat,Drivers,Sand,99,00,01E21,E2272
MUP001134213Seat,Cushion,Drivers,Sand,99,00,01E21,E2277 208.94 15.00
MUP001134308Coaming,00Milennium,Surf,Side,Stbd,E21,Plastic Handle85 n/a
MUP001134314ArmRest,00Surf,Upholstered,E21112 33.08 15.00
MUP001134516SeatBack,00Surf,Observer,E22 old style bigger190 n/a
MUP001134517SeatBottom,00Surf,Observer,E22 old style hinged188 n/a
MUP001177115ObserverSeatBottom,01Cool,X22 new style bigger, no hinge195 202.22 125.00
MUP109000101Sand Trunk Lid102104 570.88 115.00
MUP109000102Seat,Back,Aft,Sand,99,00,01E21,E22121123125 n/a
MUP109000103Seat,Bottom,Aft,Port,Sand,99,00,01E21,E22132134 358.65 15.00
MUP109000104Seat,Bottom,Aft,Center,Sand,99,00,01E21,E22142144 220.79 15.00
MUP109000105Seat,Bottom,Aft,Stbd,Sand,99,00,01E21,E22149151 397.57 15.00
MUP109000107Coaming,Side,Port,Sand,99,00,01E21Only156158160 n/a
MUP109000108Coaming,Side,Stbd,Sand,99,00,01E21Only82,84,86 n/a
MUP109000112ArmRest,Drivers,Sand,99,00,01E21Only111113 OUT OUT
MUP109000114Seat,Back,Observers,Sand,99,00,01E21Only55,57,59 n/a
MUP109000115Seat,Bottom,Observers,Sand,99,00,01E21Only62,64 n/a
MUP109000201Surf Trunk Lid E22103105 563.29 15.00
MUP109000202Seat,Back,Aft,Surf,99,00,01E21&E22122124126 n/a
MUP109000203Seat,Bottom,Aft,Port,Surf,99,00,01E21&E22133135 170.00 15.00
MUP109000204Seat,Bottom,Aft,Center,Surf,99,00,01E21&E22143145 168.75 15.00
MUP109000205Seat,Bottom,Aft,Stbd,Surf,99,00,01E21&E22150152 170.00 15.00
MUP109000207Coaming,Side,Port,Surf,99,00,01E21Only157159161 n/a
MUP109000208Coaming,Side,Stbd,Surf,99,00,01E21Only83,87 n/a
MUP109000214Seat,Back,Observers,Surf,99,00,01E21Only56,58,60 n/a
MUP109000215Seat,Bottom,Observers,Surf,99,00,01E21Only63,65 273.61 15.00
MUP109000235ArmRest,Drivers,Surf,SkinOnly,99,00,01E21Only114 n/a
MUP109000301Ivory Trunk Lid106 570.88 35.00
MUP109000302Seat,Back,Aft,Ivory,99E21,E22127 n/a
MUP109000303Seat,Bottom,Aft,Port,Ivory,99E21,E22136 OUT OUT
MUP109000304Seat,Bottom,Aft,Center,Ivory,99E21,E22146 189.95 15.00
MUP109000305Seat,Bottom,Aft,Stbd,Ivory,99E21,E22153 286.34 15.00
MUP109000307Coaming,Side,Port,Ivory,99E21Only162 n/a
MUP109000308Coaming,Side,Stbd,Ivory,99E21Only88 n/a
MUP109000311Seat,Drivers,Ivory,99E21,E2274 OUT OUT
MUP109000312ArmRest,Drivers,Ivory,99E21Only115 n/a
MUP109000314Seat,Back,Observers,Ivory,99E21Only61 n/a
MUP109000315Seat,Bottom,Observers,Ivory,99E21Only66 273.61 15.00
MUP109000354Seat,CushionDrivers,Ivory,99E21,E2279
MUP109000407Coaming,Side,Port,Sand,99,00,01E22Only163165167 198.00 115.00
MUP109000408Coaming,Side,Stbd,Sand,99,00,01E22Only89,91,93 698.00 115.00
MUP109000412ArmRest,Drivers,Sand,99,00,01E22Only110116 n/a
MUP109000414Seat,Back,Observers,Sand,99,00,01E22Only176178180 240.69 15.00
MUP109000415Seat,Bottom,Observers,Sand,99,00,01E22Only187189191 262.50 15.00
MUP109000419Coaming,Bow,Port,Sand,99,00,01E22Only33,35,37 n/a
MUP109000420Coaming,Bow,Center,Sand,99,00,01E22Only8,10,12 195.14 35.00
MUP109000421Coaming,Bow,Stbd,Sand,99,00,01E22Only44,46,48
MUP109000422Seat,Bottom,Bow,Port,Sand,99,00,01E22Only19,21 198.47 15.00
MUP109000423Seat,Bottom,Bow,Center,Sand,99,00,01E22Only1,3 160.14 15.00
MUP109000424Seat,Bottom,Bow,Stbd,Sand,99,00,01E22Only26,28
MUP109000507Coaming,Side,Port,Surf,99,00,01E22Only164166168 n/a
MUP109000508Coaming,Side,Stbd,Surf,99,00,01E22Only90,92,94 582.78 15.00
MUP109000512ArmRest,Drivers,Surf,99,00,01E22Only109117 101.39 15.00
MUP109000514Seat,Back,Observers,Surf,99,00,E22Only-17" old style177179181 240.69 15.00
MUP109000515Seat,Bottom,Observers,Surf,99,00E22Only-old styled w/hinge192 OUT OUT
MUP109000519Coaming,Bow,Port,Surf,99,00,01E22Only34,36,38 257.58 15.00
MUP109000520Coaming,Bow,Center,Surf,99,00,01E22Only9,11,13 195.14 15.00
MUP109000521Coaming,Bow,Stbd,Surf,99,00,01E22Only45,47,49 290.28 15.00
MUP109000522Seat,Bottom,Bow,Port,Surf,99,00,01E22Only20,22 n/a
MUP109000523Seat,Bottom,Bow,Center,Surf,99,00,01E22Only2,4 160.14 15.00
MUP109000524Seat,Bottom,Bow,Stbd,Surf,99,00,01E22Only27,29 198.47 15.00
MUP109000607Coaming,Side,Port,Ivory,99E22Only169 n/a
MUP109000608Coaming,Side,Stbd,Ivory,99E22Only95 n/a
MUP109000612ArmRest,Drivers,Ivory,99E22Only118 n/a
MUP109000614Seat,Back,Observers,Ivory,99E22Only182 240.69 15.00
MUP109000615Seat,Bottom,Observers,Ivory,99E22Only193 n/a
MUP109000619Coaming,Bow,Port,Ivory,99E22Only39 n/a
MUP109000620Coaming,Bow,Center,Ivory,99E22Only14 89.00 15.00
MUP109000621Coaming,Bow,Stbd,Ivory,99E22Only50 n/a
MUP109000622Seat,Bottom,Bow,Port,Ivory,99E22Only23 OUT OUT
MUP109000623Seat,Bottom,Bow,Center,Ivory,99E22Only160.14 15.00
MUP109000624Seat,Bottom,Bow,Stbd,Ivory,99E22Only30 198.47 15.00
MUP209000701Fire & Ice Trunk Lid107 586.43 125.00
MUP209000702Seat,Back,Aft,Fire&Ice,99,00,01X22128130 n/a
MUP209000703Seat,Bottom,Aft,Port,Fire&Ice,99,00,01X22137 397.57 15.00
MUP209000704Seat,Bottom,Aft,Center,Fire&Ice,99,00,01X22147 203.32 15.00
MUP209000705Seat,Bottom,Aft,Stbd,Fire & Ice,99,00,01X22154 350.99 15.00
MUP209000707Coaming,Side,Port,Fire&Ice,99,00,01X22170172174 OUT OUT
MUP209000708Coaming,Side,Stbd,Fire&Ice,99,00,01X2296,98 522.24 125.00
MUP209000711Seat,Drivers,Fire&Ice,99,00,01X2275
MUP209000714Seat,Back,Observers,Fire&Ice,99,00,01X22183185 180.56 15.00
MUP209000715Seat,Bottom,Observers,Fire&Ice,99,00,01X22194196 OUT OUT
MUP209000719Coaming,Bow,Port,Fire&Ice,99,00,01X2240,42 n/a
MUP209000720Coaming,Bow,Center,Fire&Ice,99,00,01X2215,17 140.28 15.00
MUP209000721Coaming,Bow,Stbd,Fire&Ice,99,00,01X2251,53 236.11 15.00
MUP209000722Seat,Bottom,Bow,Port,Fire&Ice,99,00,01X2224 180.69 15.00
MUP209000723Seat,Bottom,Bow,Center,Fire&Ice,99,00,01X22143.53 15.00
MUP209000724Seat,Bottom,Bow,Stbd,Fire&Ice,99,00,01X2231 180.69 15.00
MUP209000754Seat,CushionDrivers,Fire&Ice,99E21,99,00,01X2280
MUP209000801Cool Trunk Lid 108 575.96 125.00
MUP209000802Seat,Back,Aft,Cool,99,00,01X22129131 n/a
MUP209000803Seat,Bottom,Aft,Port,Cool,99,00,01X22138 397.57 15.00
MUP209000804Seat,Bottom,Aft,Center,Cool,99,00,01X22148 220.79 15.00
MUP209000805Seat,Bottom,Aft,Stbd,Cool,99,00,01X22155 397.57 15.00
MUP209000807Coaming,Side,Port,Cool,99,00,01X22171173175 497.22 125.00
MUP209000808Coaming,Side,Stbd,Cool,99,00,01X2297,99 522.22 125.00
MUP209000811Seat,Drivers,Cool,99,00,01X2276 n/a
MUP209000814Seat,Back,Observers,Cool,99,00,01X22184186 n/a
MUP209000815Seat,Bottom,Observers,Cool,99,00,01X22197 n/a
MUP209000819Coaming,Bow,Port,Cool,99,00,01X2241,43 n/a
MUP209000820Coaming,Bow,Center,Cool,99,00,01X2216,18 140.28 15.00
MUP209000821Coaming,Bow,Stbd,Cool,99,00,01X2252,54 n/a
MUP209000822Seat,Bottom,Bow,Port,Cool,99,00,01X2225 180.69 15.00
MUP209000823Seat,Bottom,Bow,Center,Cool,99,00,01X22143.53 15.00
MUP209000824Seat,Bottom,Bow,Stbd,Cool,99,00,01X2232
MUP209000854SeatCushion,00Cool,Driver,X2281 n/a
MUP4000149Seat,Rear,RotocastBase,NoCarpet,E21,E22,X22139140141 OUT OUT

* SHIPPING INFO: Most items ship next day after Paypal funds are secured. Shipping cost may vary depending on quantity of items purchased, weight and other variables. If additional shipping funds are required, Capt Rick will contact you. For more info email Capt Rick

DISCLAIMER: The seller of these parts is an authorized Toyota Parts Distributor using customer drop shipment. The site owners and administrators of epicmarine.com hold no liability for parts purchased through this site. This is a community site and NOT affiliated with the now defunct Toyota Marine Sports division of Toyota. As a community site, we depend on the integrity of it's members.

Download the entire Parts List in Excel format: Marine_Parts_List_2005.xls
