TMS Reference Figures - Boat

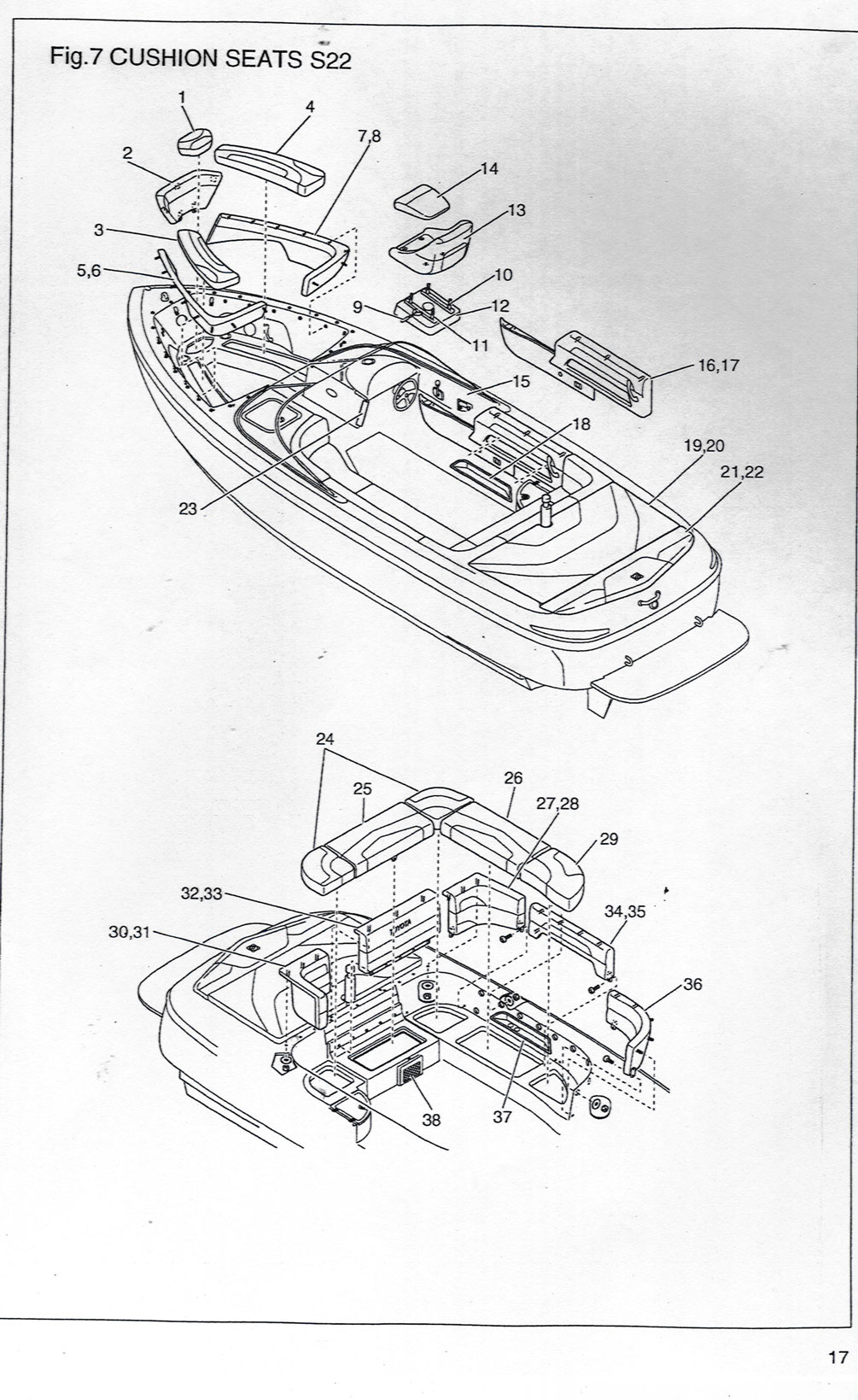

Figure 7

Print the larger version   |   Scroll down for parts list

Print the larger version   |   Right click to download all figures as .pdf (69 Megs)



Figure 7


Part No.DescriptionFigureNumberOriginal PriceShipping*Purchase
MMP0011561Box,Storage,PortCoaming,14"x36"x6",S22,SX22,Plastic,B37 59.44 15.00
MMP0011661Box,Storage,StbdCoaming,14"x36"x6",S22,SX22,Plastic,B18 50.42 15.00
MUP001086201Lighting Trunk Lid 22 573.33 125.00
MUP001086202Lighting Sun Deck20 927.63 165.00
MUP001086203Seat,Back,Aft,Port,Lightning,01SX22Only28
MUP001086204Seat,Back,Aft,Center,Lightning,01SX22Only33 n/a
MUP001086205Seat, Back, Aft, Stbd, Lightning, 01SX22Only31
MUP001086206Seat,Bottom,Aft,Port,Lightning,01SX22Only24 190.64 35.00
MUP001086207Seat,Bottom,Aft,Center,Lightning,01SX22Only25 249.17 15.00
MUP001086208Seat,Bottom,Aft,Stbd,Lightning,01SX22Only24 n/a
MUP001086209Pocket,Mesh,SeatBase,Aft,Center,01SX2238 94.75 15.00
MUP001086211Seat,Bottom,Port,Bow,Lightning,01SX22Only200.20 20.00
MUP001086212Seat,Bottom,Center,Bow,Lightning,01SX22Only167.61 15.00
MUP001086213Seat,Bottom,Stbd,Bow,Lightning,01SX22Only203.89 15.00
MUP001086214Seat,Bottom,Observers,Lighting,01SX22Only29 240.00 30.00
MUP001086215Seat,Bottom,Center,Port,Lightning,01SX22Only26 OUT OUT
MUP001086216Seat,Back,Port,Bow,Lighting,01SX22Only367.89 15.00
MUP001086217Seat,Back,Center,Bow,Lighting,01SX22Only189.92 15.00
MUP001086218Seat,Back,Stbd,Bow,Lighting,01SX22Onlyn/a
MUP001086220Coaming,Side,Stbd,Lightning,00S22,01S22,SX2217 355.31 165.00
MUP001086221Seat,Drivers,Ligting,01SX22Only13 545.78 55.00
MUP001086222Seat,Cushion,Drivers,Lighting,01SX22Only14 221.69 15.00
MUP001086223ArmRest,Drivers,Lightning,01SX22Only15 n/a
MUP001086224KneePad,Drivers,Lightning,01SX22Only23 48.14 15.00
MUP001086247SeatBack,Lightning,01SX22,PortFwd,Upholstered35 264.56 15.00
MUP001187701Surf Trunk Lid S22 vdrive21 499.82 165.00
MUP001187702Surf Sun Deck complete s2219 954.53 225.00
MUP001187703Seat,Back,Aft,Port,Surf,00S22,01S22,SX2227 317.00 15.00
MUP001187704Seat,Back,Aft,Center,Surf,00S22,01S22,SX2232
MUP001187705Seat,Back,Aft,Stbd,Surf,00S22,01S22,SX2230 298.81 15.00
MUP001187706Seat,Bottom,Aft,Port & Stbd,Surf,00S22,01S22,SX2224 OUT OUT
MUP001187707Seat,Bottom,Aft,Center,Suf,00S22,01S22,SX2225
MUP001187709Pocket,Mesh,SeatBase,Aft,Center,00S22,01S22,SX2238 92.89 15.00
MUP001187710Coaming,Port,WrapAround,Surf,00S22,01S22&SX2236 379.17 15.00
MUP001187711Seat,Bottom,Port,Bow,Surf,01S22,02S22,SX22199.86 15.00
MUP001187712Seat,Bottom,Center,Bow,Surf,01S22,SX22143.53 15.00
MUP001187713Seat,Bottom,Stbd,Bow,Surf,01S22,SX22199.86 15.00
MUP001187714Seat,Bottom,Observers,Surf,01S22,SX2229 231.25 15.00
MUP001187715Seat,Back,Center,Port,Surf,00,01S22,SX2234 290.00 25.00
MUP001187716Seat,Back,Port,Bow,Surf,00S22,01S22,SX22360.61 15.00
MUP001187717Seat,Back,Center,Bow,Surf,00S22,01S22,SX22186.17 15.00
MUP001187718Seat,Back,Stbd,Bow,Surf,00S22,01S22,SX22360.61 15.00
MUP001187720Coaming,Side,Stbd,Surf,00S22,01S22,SX2216 348.28 15.00
MUP001187723ArmRest,Drivers,Surf,00S22,01S22,SX2215 35.00 15.00
MUP001187749SeatBack,Surf,00S22,01S22/SX22,PortFwd,Upholstered36 206.00 20.00
