TMS Reference Figures - Boat

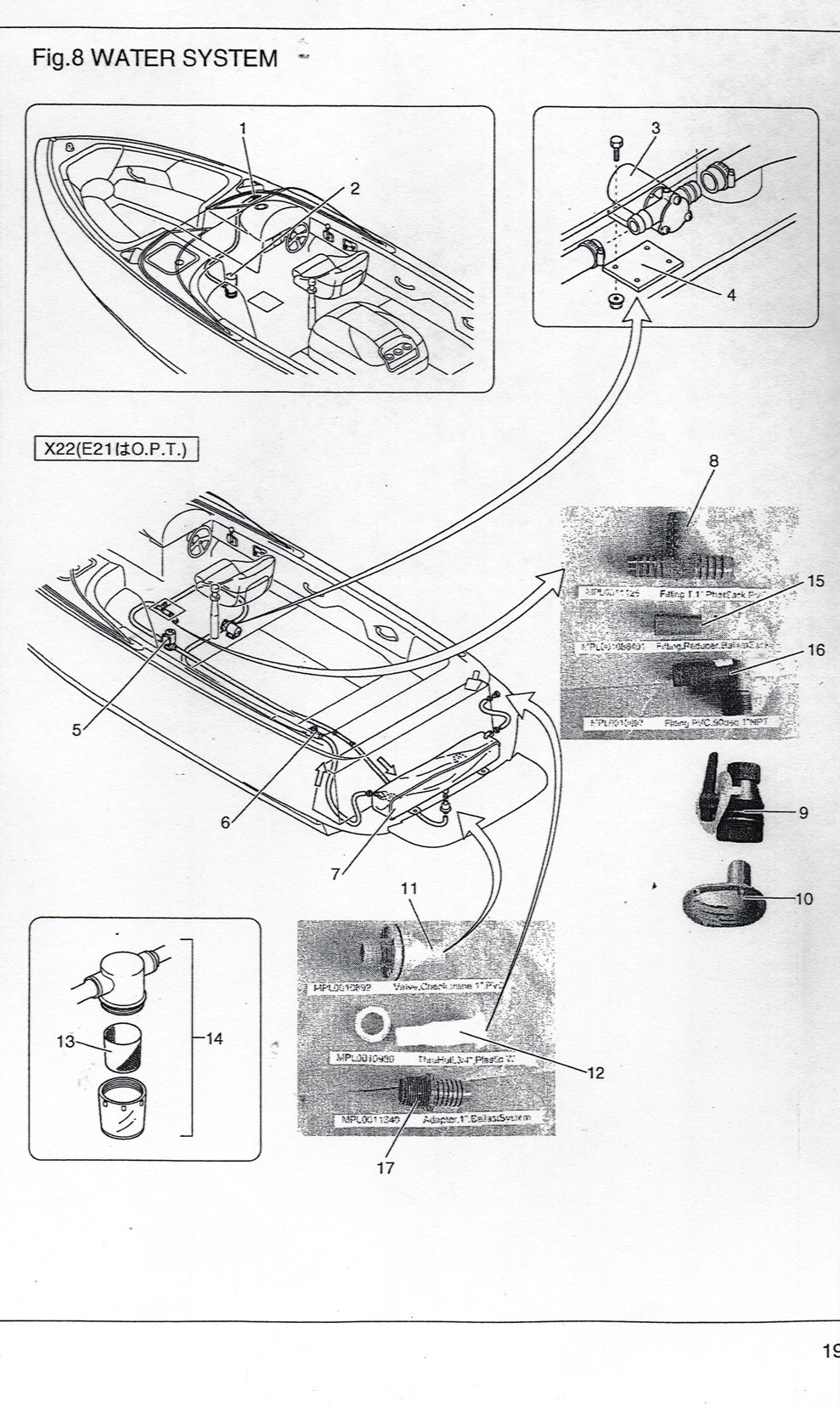

Figure 8

Print the larger version   |   Scroll down for parts list

Print the larger version   |   Right click to download all figures as .pdf (69 Megs)



Figure 8


Part No.DescriptionFigureNumberOriginal PriceShipping*Purchase
MDC0011339Switch,LiquidFlow,1"w/Baffle,BallastSystemPlumbing55.50 15.00
MHH0011815Strainer,ThruHull,1",ThickWallType,Bronze10 48.67 15.00
MPL0010102ThruHull,BilgePump,3/4",Plastic,Black
MPL0010864Sack,Ballast,70Gallon,Vinyl
MPL001086401Fitting,Reducer,BallastSackDrianLine,1"x7/8"x2"Long15
MPL0010897Fitting,Ballast,Sack,90deg,1"HoseBarb16
MPL0010899Valve,Check,BallastSackFillHose,Inline,1",PVC11
MPL0010903Valve,Gate,BallastSystem,1",Plastic,Black
MPL0010980ThruHull,BallastSackOverflowLine,3/4",Plastic,White12
MPL0011125Fitting,T,BallastSack,1"HoseBarb,PVC
MPL0011340Adapter,1",BallastSystem17
MPLW000137Strainer,SeaWater,Plastic,White14 55.00 15.00
MPLW00013701Filter,SeaStrainer,Plastic13 14.42 15.00
MPM0010863Pump,BallastSysetm,Rule#66,1100GPH,12v47.25 15.00
MPM0010904Bracket,RulePump,Model66,Plastic,White
MPM0011016Pump,BallastSack,480GPH,Jabsco,12v346.92 15.00
MPM0011542Pump,Bilge,500GPH,Rule,12v52.06 15.00

* SHIPPING INFO: Most items ship next day after Paypal funds are secured. Shipping cost may vary depending on quantity of items purchased, weight and other variables. If additional shipping funds are required, Capt Rick will contact you. For more info email Capt Rick

DISCLAIMER: The seller of these parts is an authorized Toyota Parts Distributor using customer drop shipment. The site owners and administrators of epicmarine.com hold no liability for parts purchased through this site. This is a community site and NOT affiliated with the now defunct Toyota Marine Sports division of Toyota. As a community site, we depend on the integrity of it's members.

Download the entire Parts List in Excel format: Marine_Parts_List_2005.xls
