TMS Reference Figures - Boat

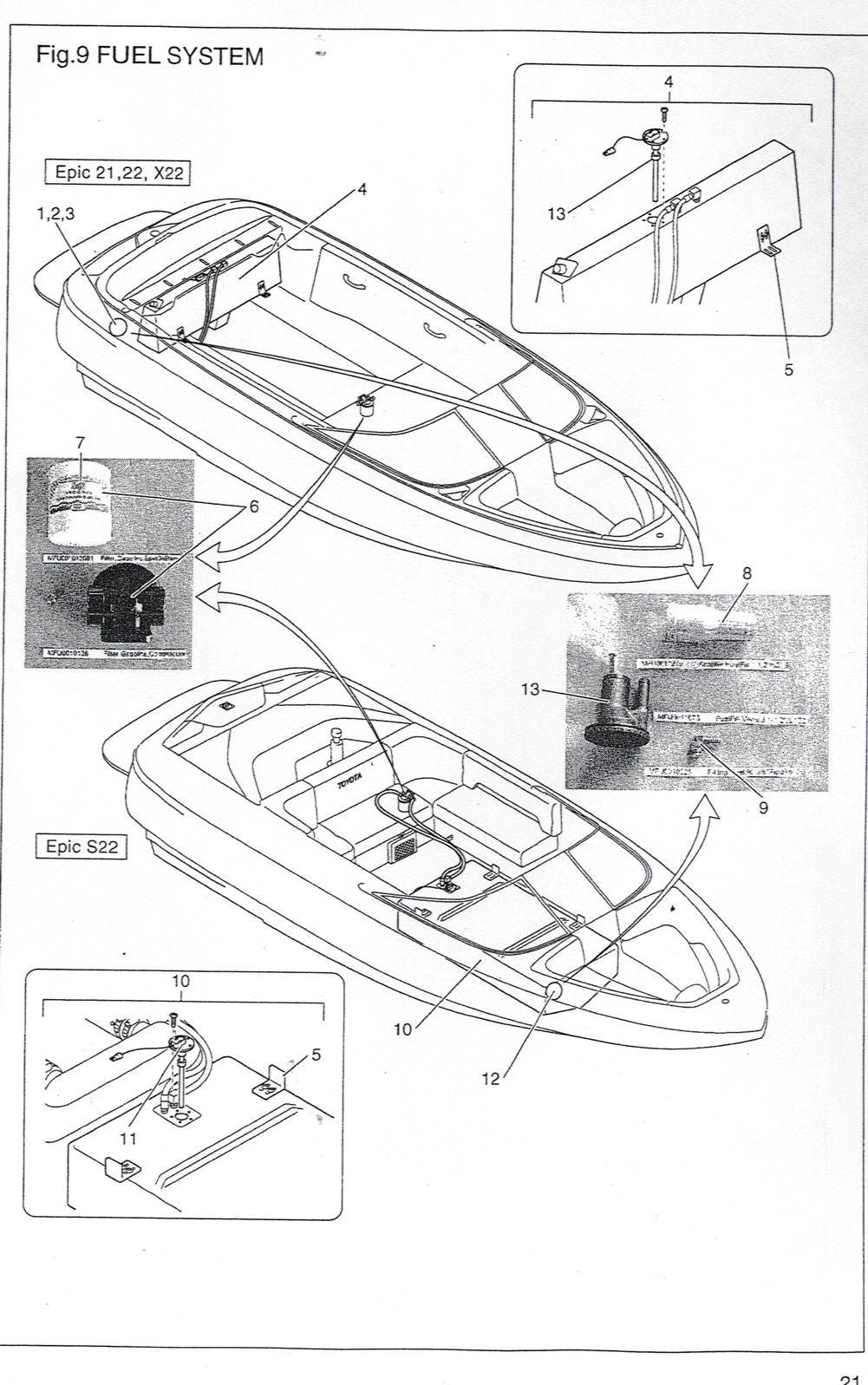

Figure 9

Print the larger version   |   Scroll down for parts list

Print the larger version   |   Right click to download all figures as .pdf (69 Megs)



Figure 9


Part No.DescriptionFigureNumberOriginal PriceShipping*Purchase
MFU0010136Filter,Gasoline,CompleteUnit,Housing,w/SpinOnElementn/a
MFU001013601 Filter,Gasoline, sin on elementOnlyNLA NLA
MFU0010325Fitting,Fuel,90Deg,3/8"PipeTo1/4HoseBarb4.42 15.00
MFU0010878FuelFill,Deck,w/Vent,AngleNeck,1-1/2"ID-Hose,S22,SX22,Chrome12 58.00 15.00
MFU0011270Adapter,DeckFuelFillHose,1-1/2"ID-HoseTo2"ID-Hose,E21,E22,X2236.47 15.00
MFU0011540FuelTank,26Gal,1-1/2"Inlet,.265Thick,#2616,E21,E22,X22344.47 85.00
MFU001154002SendingUnit,FuelTank#2616,12v,E21,E22,X2213 75.19 15.00
MFU0011565FuelTank,43Gal,1-1/2"Inlet,.22Thick,#4304,S22,SX2210 333.33 85.00
MFU001156503SendingUnit,FuelTank#4304,12v,S22,SX2211 41.89 15.00
MFU0011673FuelFill,InternalVented,1-1/2"Hose,5/8"VentHose,01,02E21,Black65.44 15.00
MFU0011674FuelFill,InternalVented,1-1/2"Hose,5/8"VentHose,01,02E21,Chrome
MFU0011675FuelFill,InternalVented,1-1/2"Hose,5/8"VentHose,01,02E21,White63.92 15.00
MHHZ600242Bracket,"L"Type,FuelTank,E21,E22,X22,AlumSeelMFUF001024310.20 15.00
